i-on40

3. Installation

Exposure to Radio Frequency Radiation
The radiated output power of this device is
below those levels considered safe by
European exposure limits. Nevertheless,
when fitting the product place it in such a
manner as to minimise the potential for
human contact during normal operation. To
minimise exposure, users should be more
than 200 mm from the device during
normal operation
Step 1. Fit the Control
Unit Case

Caution: Static Electricity

Like many other electronic products, the
control unit contains components that are
sensitive to static electricity. Try not handle
the PCB directly. If you must handle the
PCB, take the standard precautions against
damage by static electricity.

Fitting

1
2

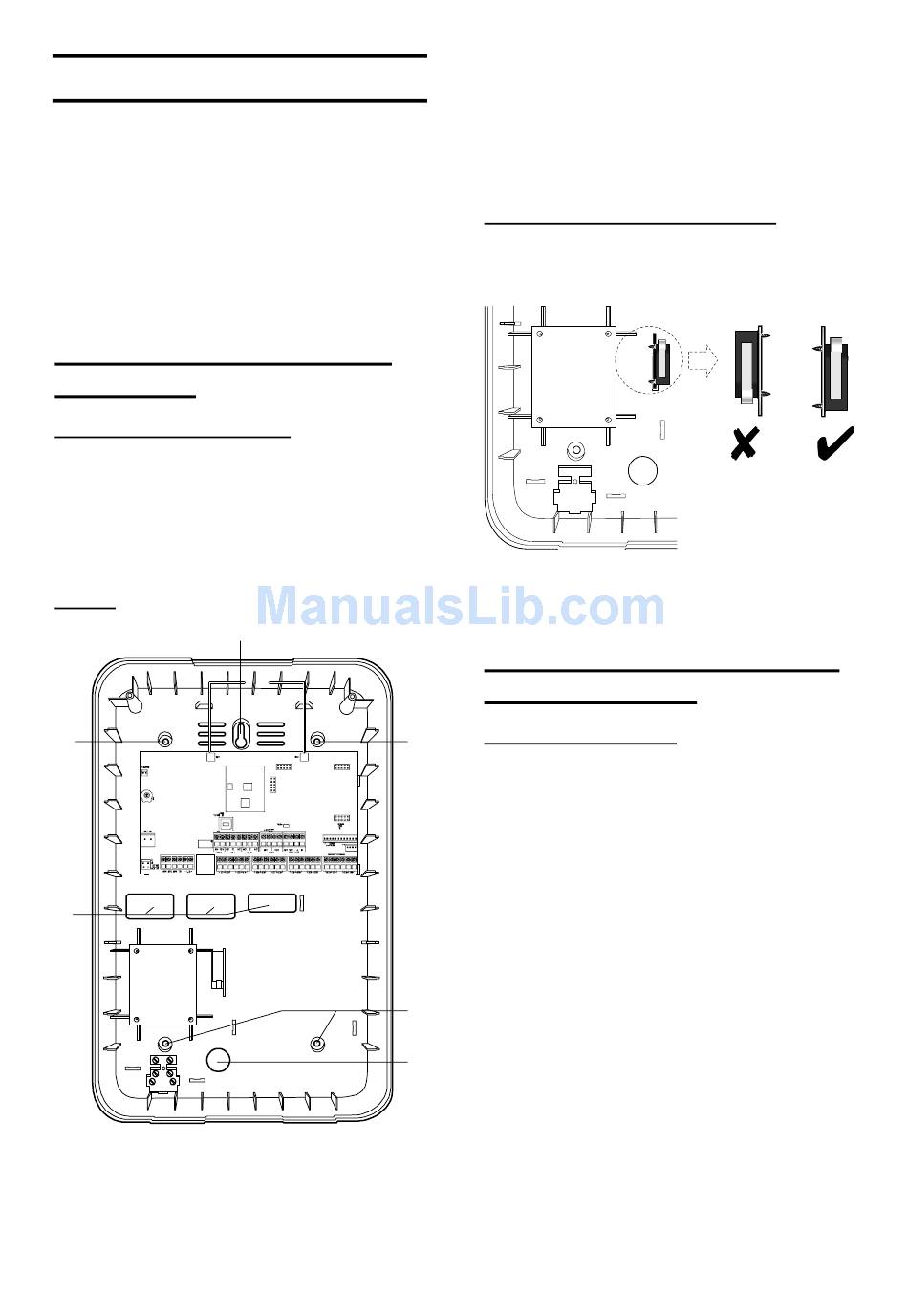

Figure 9 Fixing Holes and Cable Entries
1. Fixing holes.
2. Cable entries.
To prevent access to the inside of the
control unit, you must mount the back of
1
the control unit on a wall, using at least
four fixing holes. Use No10/M5 countersunk
screws at least 36mm long. Figure 9 shows
the fixing holes and cable entries.
Protect the unit from dust and drilling
debris when drilling the fixing holes.

Installing the Lid/Back Tamper

Fit and connect the combined lid/back
tamper (provided). Ensure that the switch
is oriented as shown in Figure 10.
Figure 10 Lid/Back Tamper
Item 2 in Figure 3 shows the connector for
the lid/back tamper.
Step 2. Fit and Connect
the Keypad(s)

Siting the Keypad(s)

1
Do site the keypad(s):
Within the area protected by the alarm
system.
At a convenient height and location for
the user.
Out of sight of potential intruders.
Do NOT site the keypad(s):
Next to electronic equipment,
particularly computers, photocopiers or
other radio equipment, CAT 5 data lines
or industrial mains equipment.
1
Where the cable run from the control
unit will be longer than 100m (see
2
Cable Configuration and Length).
Note: Do not site two or more keypads
closer than one metre together, otherwise
their prox readers will interfere and be
unable to read tags.
Page 5
