FSL zone. Each door contact is a reed
switch, connected between the outer
terminals. The inner (shaded) terminal is
not connected, and provides a spare
terminal.
100 Ohms
Zone 2
Zone 1
Alarm contacts
Zone 1
Tamper contacts
Max 10 devices per circuit (not recommended)

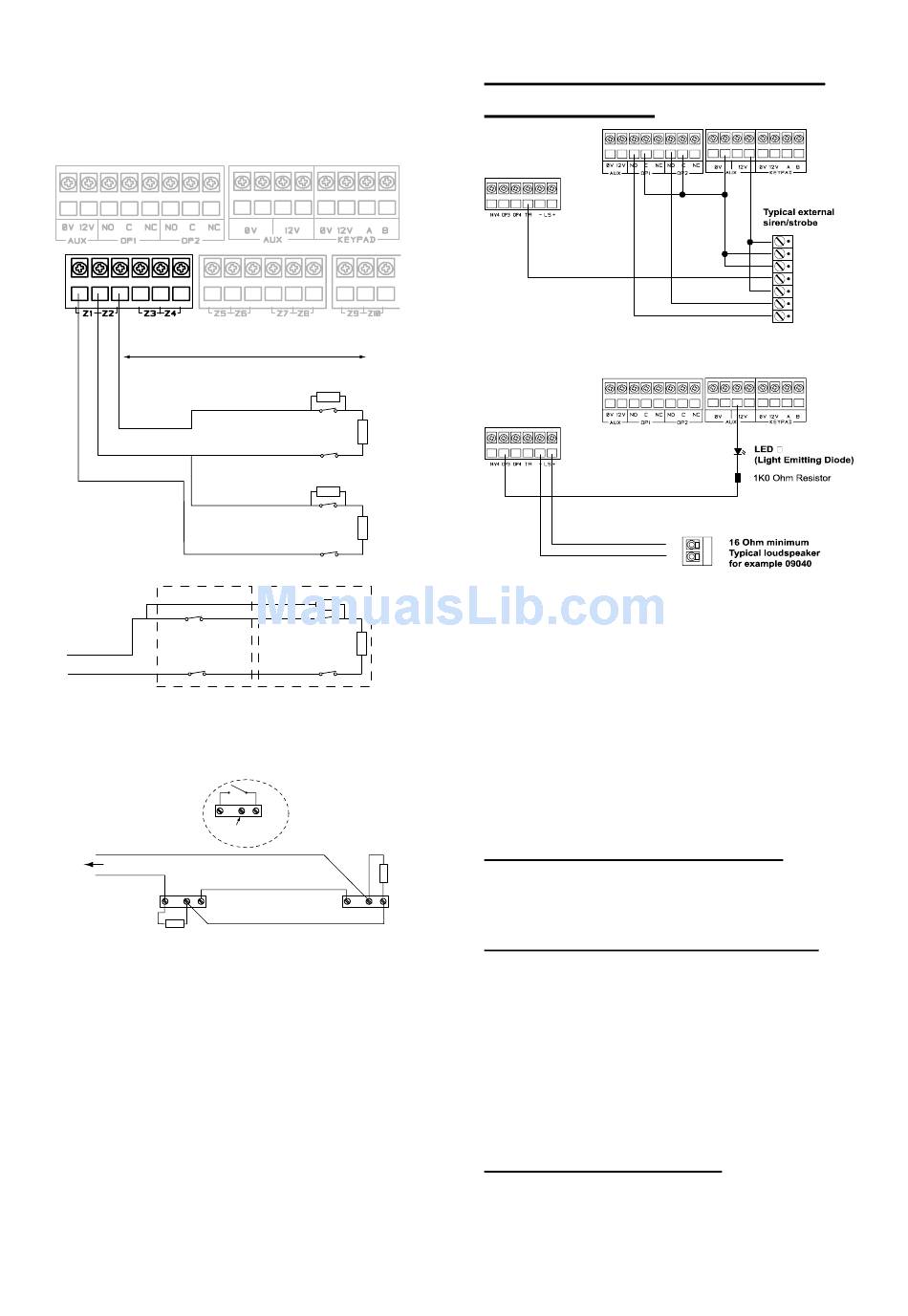

Figure 18 Fully Supervised Loop Zone
Wiring
Spare
Blue
To zone •
Yellow
contacts
4K7
Figure 19 Example: Wiring Two Door
Contacts to One FSL Zone.
4K7
Alarm contacts
2K2 EOL
Tamper contacts
4K7
Alarm contacts
2K2 EOL
Tamper contacts
4K7
Alarm contacts
2K2 EOL
Tamper contacts
2K2 EOL
Red
Black
Step 5. Connect Wired
Peripherals
Figure 20 Connecting Wired Peripherals
The control unit pcb provides four
connectors for wired outputs. Outputs 1
and 2 are voltage free relay outputs.
Outputs 3 and 4 are driven by transistors,
and are capable of sinking a maximum
500mA when active. By default outputs 3
and 4 are 0V when active, +12V when
inactive. If you wish to reverse the polarity
of these two outputs use Installer Menu -
Outputs - Wired Outputs – Output 3(4) - Polarity.

Remote Loudspeaker (Optional)

If you wish to add a wired Loudspeaker
unit, then connect it as shown in Figure 20.

Wired External Sounders (Optional)

Wired external sounders differ in their
methods of connection. Figure 20 shows an
example of a general method of using the
outputs to connect a wired sounder.
Note: If you do not wish to connect a wired
external sounder then make sure you link
TR to 0V. This prevents the control unit
reporting Bell Tamper unnecessarily.

Wired Outputs (Optional)

Figure 20 shows an example of using the
wired outputs to drive an indicator LED.
12V +
0V
Tamper In
Tamper Out
Strobe +ve
Strobe -ve
Trigger -ve
+LS
-LS
