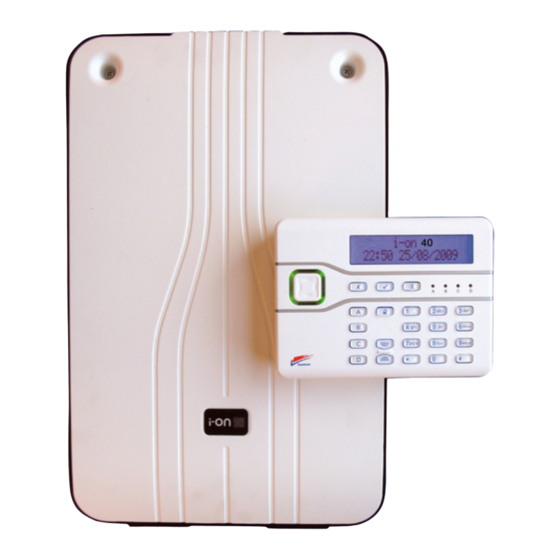

Cooper Security Scantronic i-on 40 Installation And User Manual

I-on flashloader
Hide thumbs Also See for Scantronic i-on 40:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
i-on Flashloader
Installation and User Guide

Advertisement

loading

Related Manuals for Cooper Security Scantronic i-on 40

Summary of Contents for Cooper Security Scantronic i-on 40

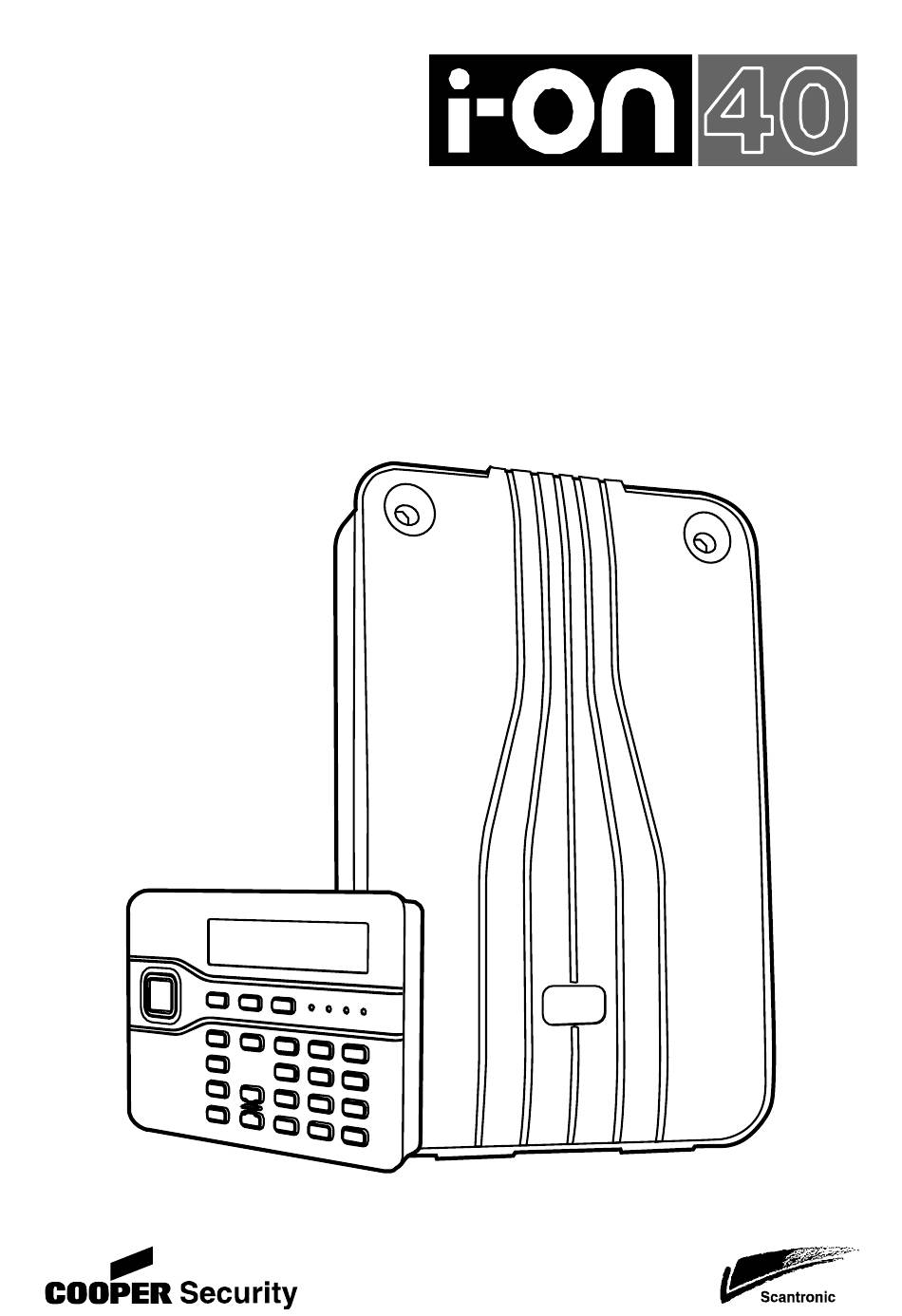

  • Page 1 i-on Flashloader Installation and User Guide...

  • Page 2: Installation

    Flashloader software: The default location is “C:\Program Files\Cooper Security\i-on Flashloader”. If you accept the default and click OK then the installation program will create the required folders. If you wish to run...
  • Page 3 i-on Flashloader the software from another location click the Browse button and navigate to your preferred folder. If you want every account on your PC to be able to use Flashloader then click the “Everyone” button. 4. Click Next. The setup wizard shows you a final screen to make sure that you want to go ahead: 6.
  • Page 4 i-on Flashloader At the i-on40 control unit: Using i-on 1. Enter the installer menu and then Flashloader remove mains power. (If you do not enter the installer menu you will start a tamper alarm in the next step.) At the PC: 2.
  • Page 5 i-on Flashloader You should see: At the i-on40: 1. Disconnect the USB cable. The heartbeat LED goes dark. 2. Remove all power, including the battery. 3. Reconnect the battery, then the mains. The heartbeat LED starts flashing (about once per second). If the end station lid is open then the control unit starts a 2.

  • Page 6: Reset Faults

    i-on Flashloader The display shows: -ON40 00:00 01/01/2009 At this point, if the control unit lid was open in step 3, then the sounders will still be giving a tamper alarm. 12. Key in the default access code (1234). The sounders fall silent. The keypad displays shows, for example: Press tick to reset 13.
  • Page 7 i-on Flashloader Notes: Page 7...
  • Page 8 Every effort has been made to ensure that the contents of this book are correct. However, neither the authors nor Cooper Security Limited accept any liability for loss or damage caused or alleged to be caused directly or indirectly by this book. The contents of this book are subject to change without notice.
