Wall Mount Installation
12" Clock
1. Connect the wiring as shown on the wiring diagram (110V or 24V ONLY).
2. Mount both plastic anchors in the wall.
3. Insert the sheet metal screws (#10) through the mounting bracket into the plastic anchors.
4. Plug the connector into the movement (110V or 24V ONLY).
5. Hang the clock on the mounting bracket.
6. Put the screw (4mm) through the hole on the top of the clock into the hole at the top of the mounting bracket.

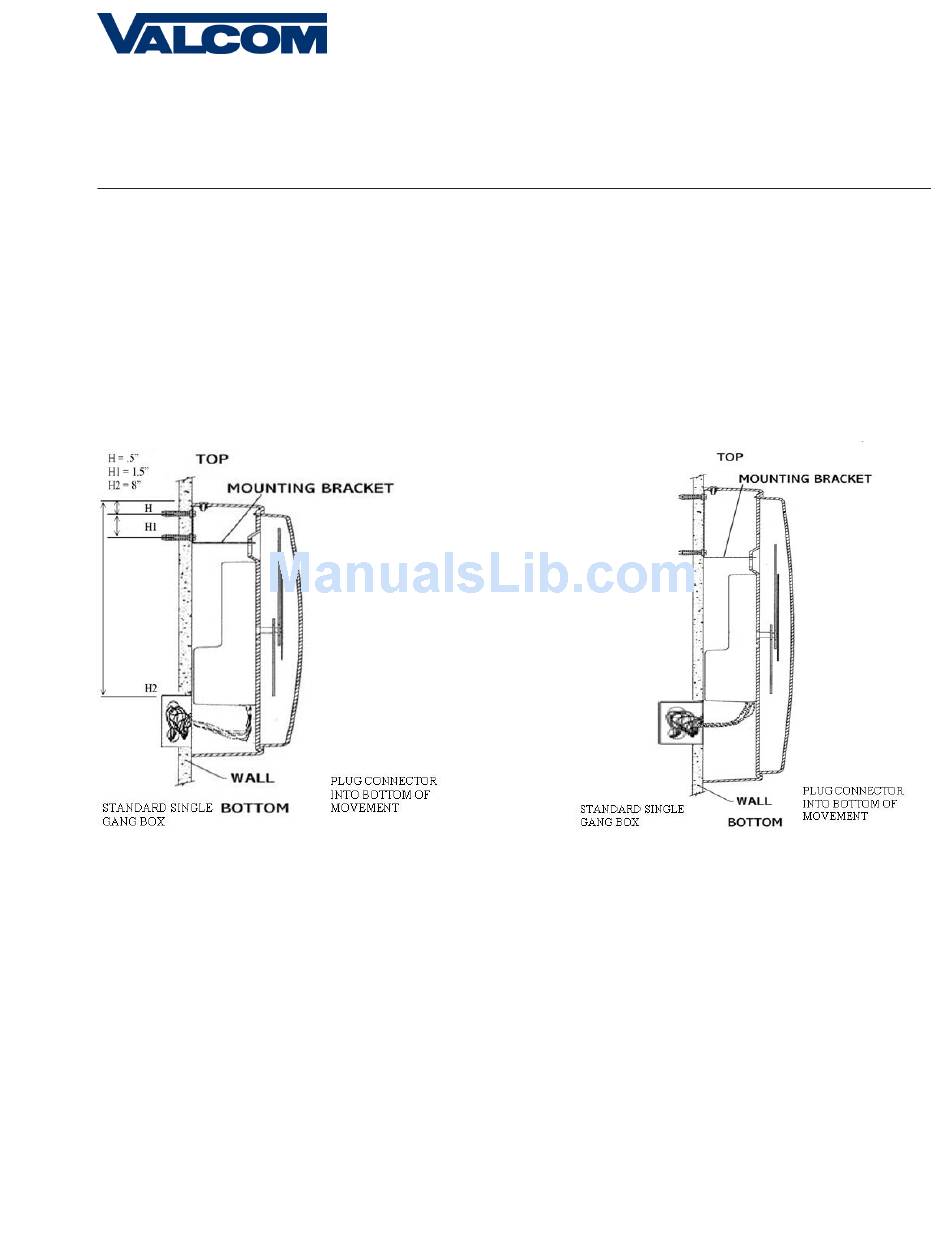

24 Volt/110 volt options shown in diagrams
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
16" Clock
540-563-2000 P.
540-362-9800 F.
