Chapter 2—Installation
Print Mechanism
The print mechanism features a high-performance 8 dot/mm (203.2
dots/inch) thermal printhead with quick-mount fi ttings to facilitate
replacement. Refer to Chapter 5 "Thermal Transfer Printing" and
Chapter 9 "Options" for illustrations of the thermal transfer mechanism,
which is partly integrated with the print mechanism.

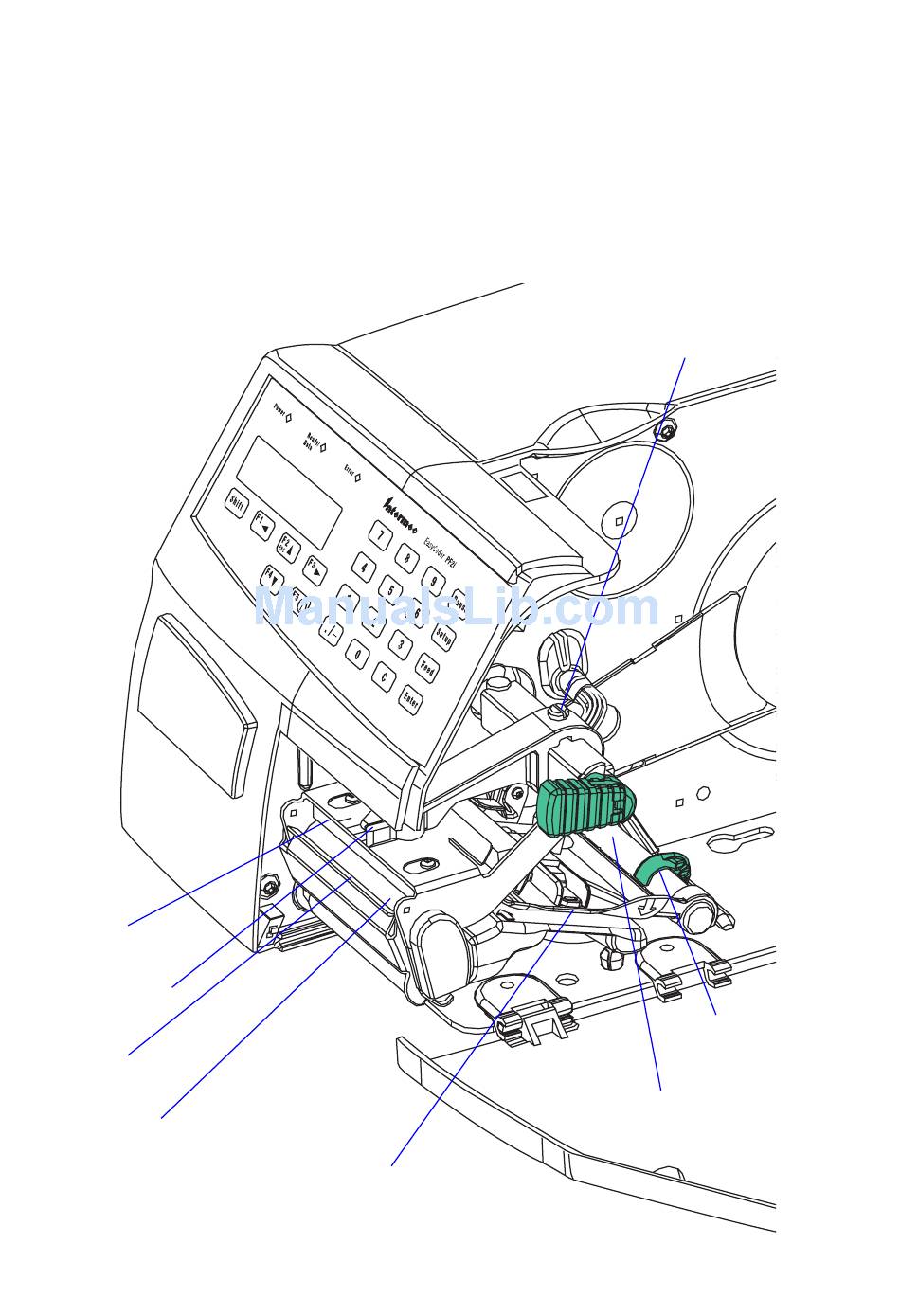

Thermal
printhead
Pressure arm
Tear bar
Platen roller
12
Label stop sensor
position adjustment
(bottom sensor hidden)
Intermec EasyCoder PF2i—User's Guide (Fingerprint version)
Locking screw
Edge guide
Printhead lift lever
