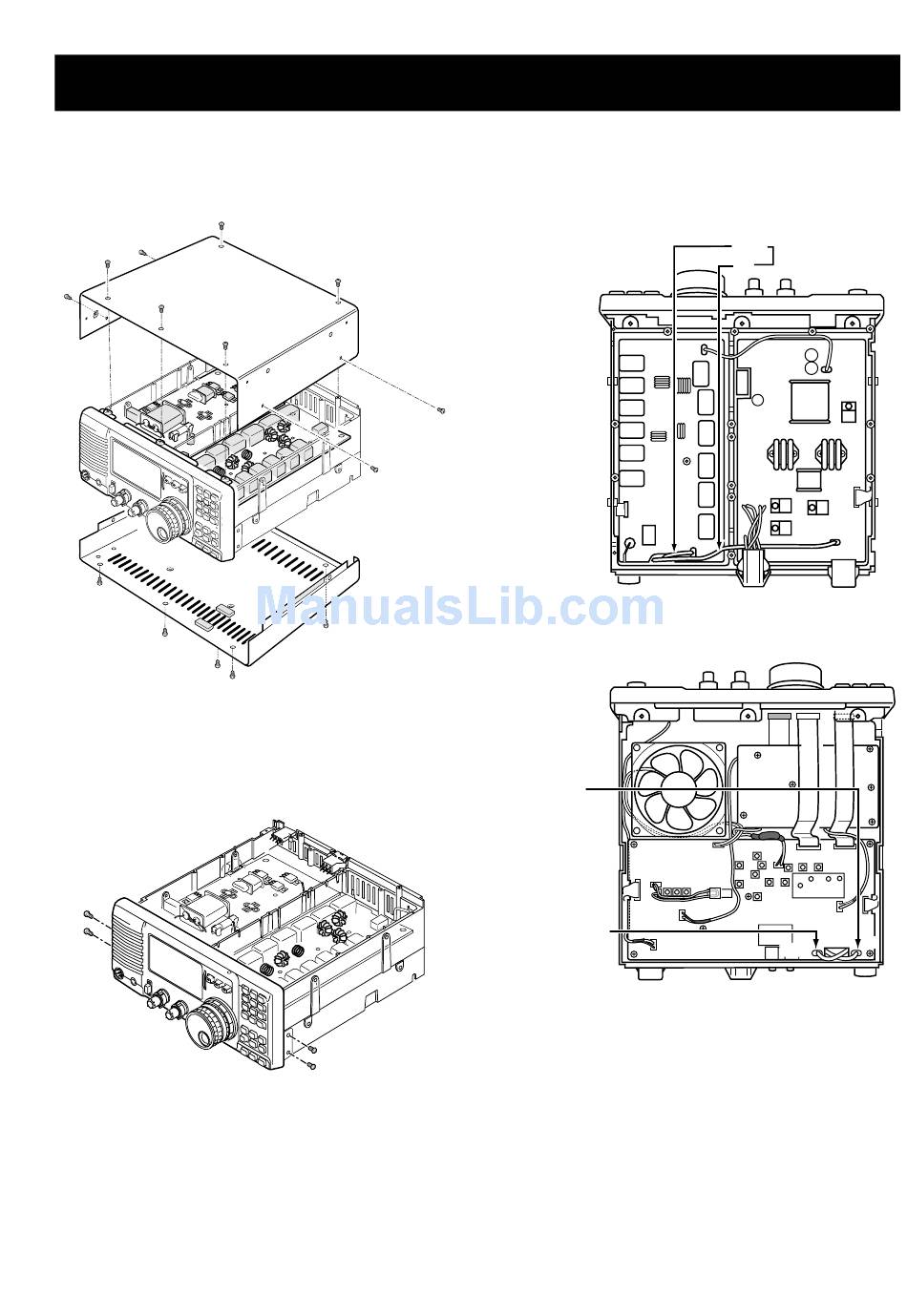

SECTION 3
• Removing the covers
Remove 14 screws from the top and bottom covers.
• Removing the Front unit
Remove 4 screws from the front panel.
DISASSEMBLY INSTRUCTIONS
• How to connect the coaxial cable
Connect the coaxial cable as shown in below.
FILTER
J6
from PA unit
J3
from FILTER unit
3 - 1
J701
to MAIN unit
J1
PA unit
unit
J3
PLL unit
MAIN unit
J701
J6
J1
