Icom IC-718 Service Manual page 45

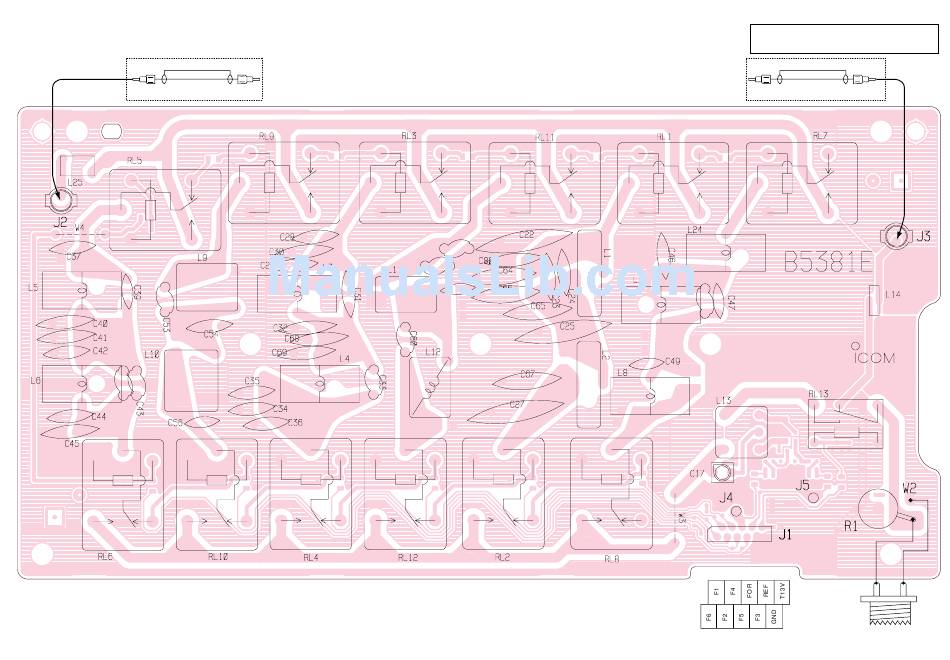

9-7 FILTER UNIT
• TOP VIEW
W9
P4
W8
CHASSIS
J2
P3
to PA unit J7
9 - 5
The combination of this page and the next page shows
the unit layout in the same configuration as the actual
P.C. Board.
W10
P5 P6
to MAIN unit J701
W11
CHASSIS
2 4 6 8 10
1 3 5 7 9
2 10
J4
ANTENNA
J1
1 9
to LOGIC unit J4001
J3
