SET MODE ADJUSTMENT —continued
ADJUSTMENT
ADJUSTMENT CONDITION
• Connect a 50 Ω dummy load or power
SWR METER
1
meter to [ANT] connector.
• Connect a 100 Ω dummy load or power
2
meter to [ANT] connector.

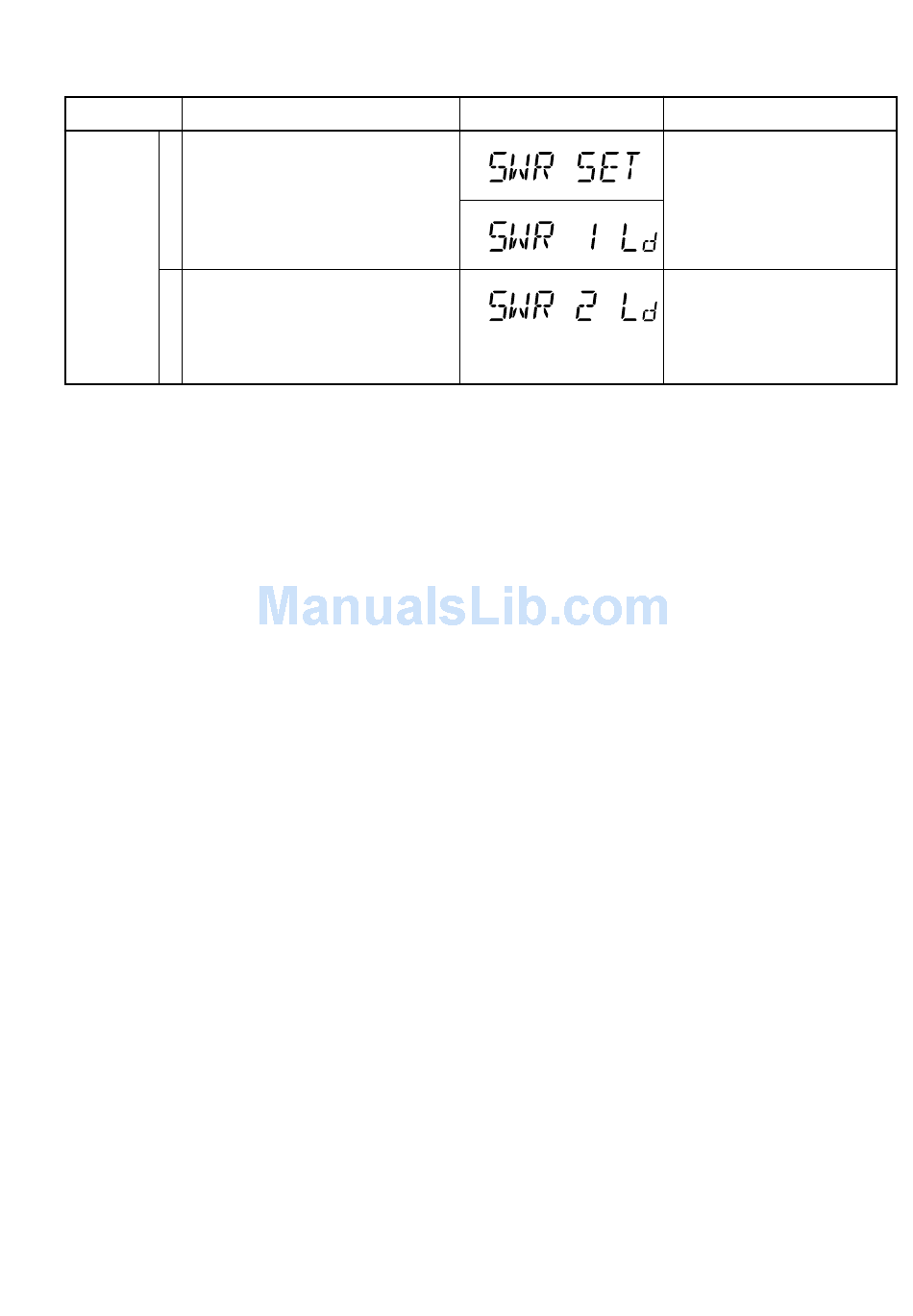

DISPLAY
5 - 11
OPERATION
Transmit using an external PTT
switch to set SWR reference level
after pushing [SET].
Transmit using an external PTT
switch to set SWR2 level after push-
ing [SET].
• The display returns to the same as
the set mode adjustment for TX.
