Figure 3.10; Figure 3.11 - Advantech ARK-3384 Series User Manual

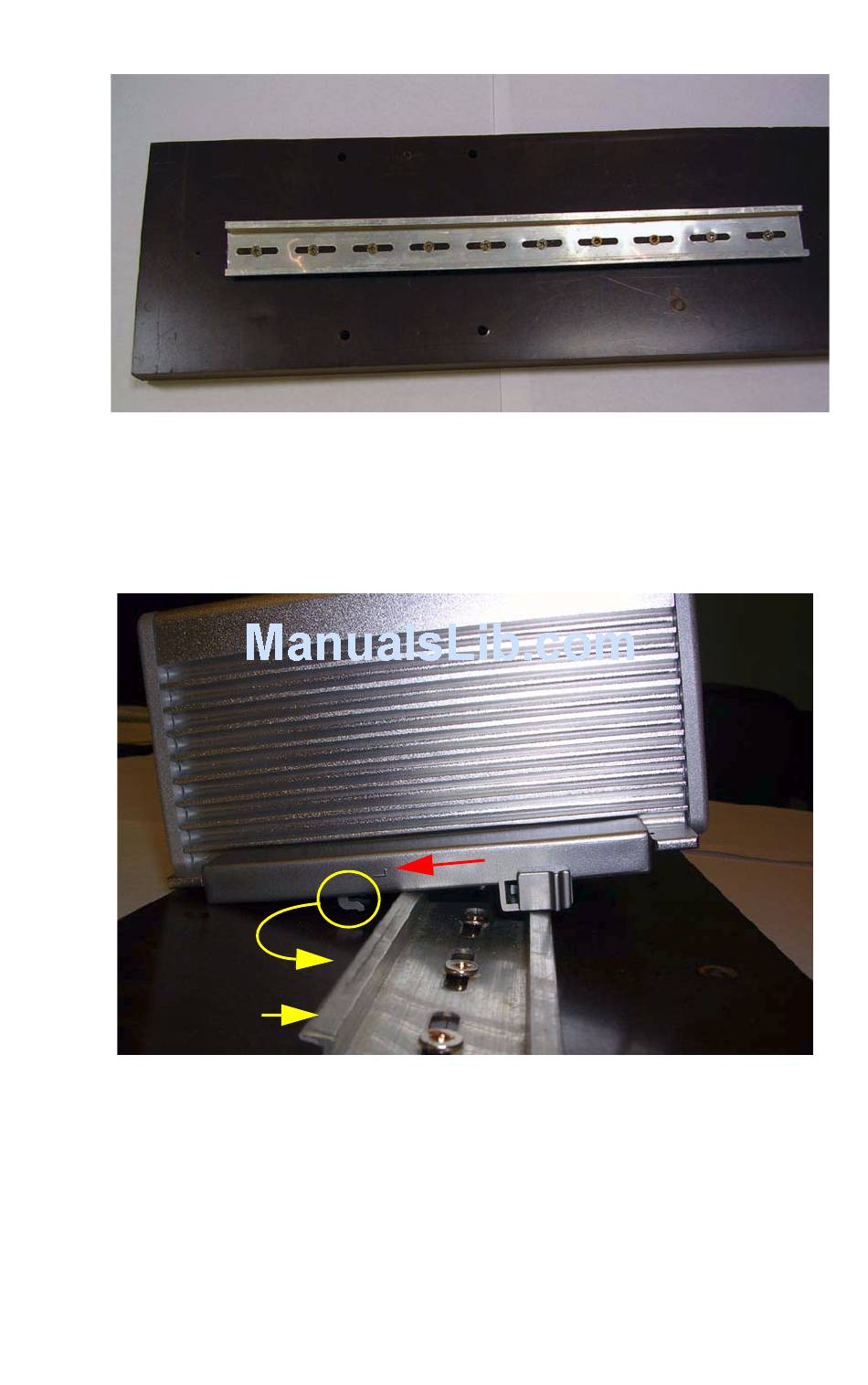

iv. The sample DIN-Rail below
v. Install the ARK-33383 unit to the rail, please make sure the hook of
the Din-Rail mounting kit on the ARK-33383 unit will contact with the
tooth of the DIN-Rail firmly.
Rail Tooth
ARK-3384 User Manual

Figure 3.10:

Hook

Figure 3.11:

Left
28
