4.6 Integrated Peripherals

This section sets configurations for your hard disk and other integrated
peripherals. The first screen shows three main items for user to select.
Once an item selected, a submenu appears, as below.
4.6.1

IDE Cable Detect

Some UDMA cables use a hole in the ribbon cable as a cable detect
mechanism to determine if a UDMA IDE or standard IDE cable is
installed. The default setting is "Enabled".
4.6.2

On Chip IDE Device

Move the cursor to this field and press <Enter>. The following screen
will appear.
ARK-3384 User Manual

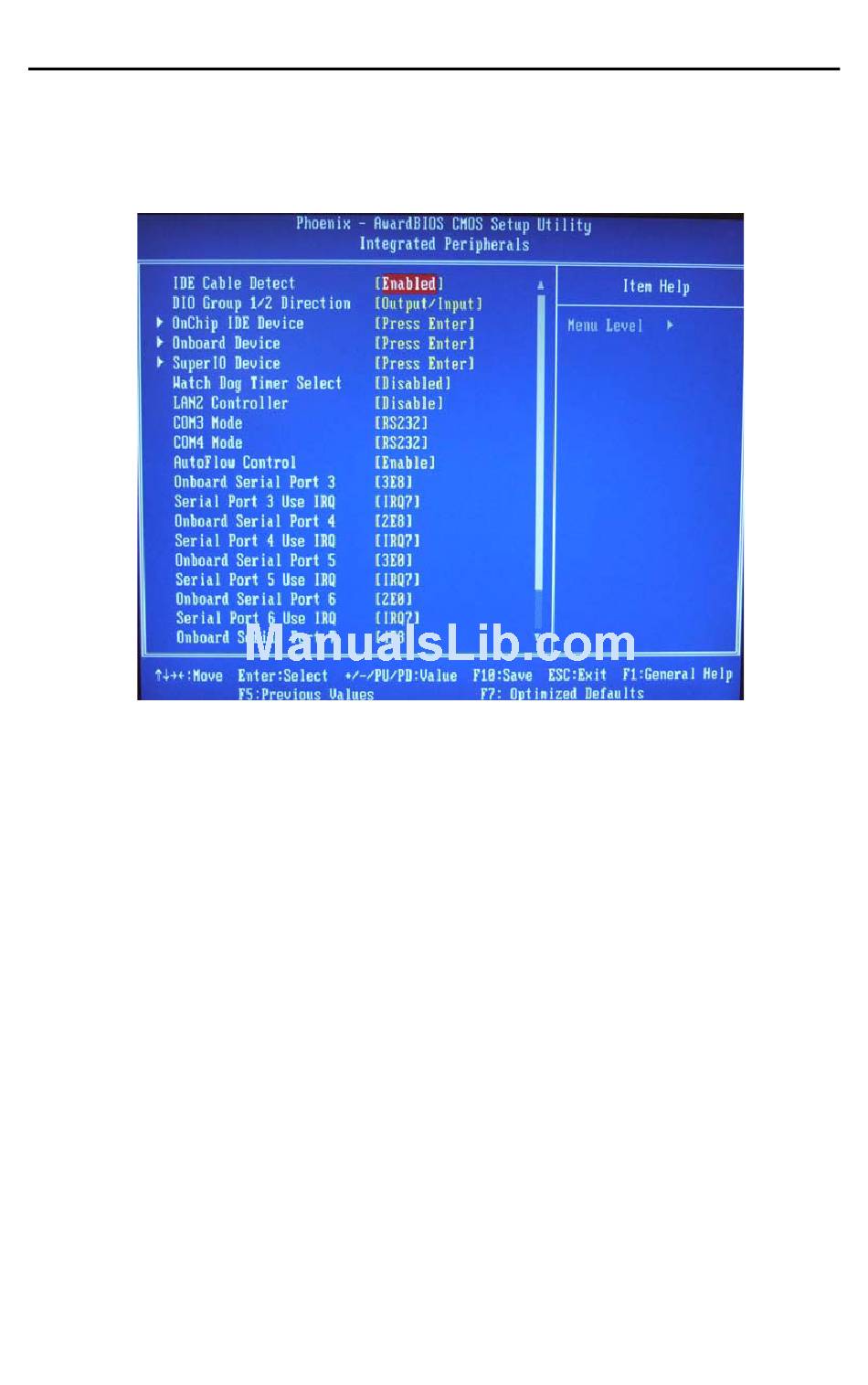

Figure 4.6: Integrated Peripherals
