4.6.3.2 USB Controller
Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have USB peripherals. The choices: Enabled, Dis-
abled.
4.6.3.3 USB 2.0 Controller
If you are using USB 2.0, this field must be set to Enabled.
4.6.3.4 USB Keyboard Support
Select Enabled if user plan to use an USB keyboard under DOS. The
choices: Enabled, Disable.
4.6.3.5 AC97 Audio
Select Disable if you do not want to use AC-97 audio. Option are Auto,
Disable.
4.6.3.6 Init Display First
This item allows you to choose which one to activate first, PCI Slot or on-
chip VGA. The choices: PCI Slot, Onboard/AGP.
4.6.4

Super IO Device

Move the cursor to this field and press <Enter>. The following screen
will appear.

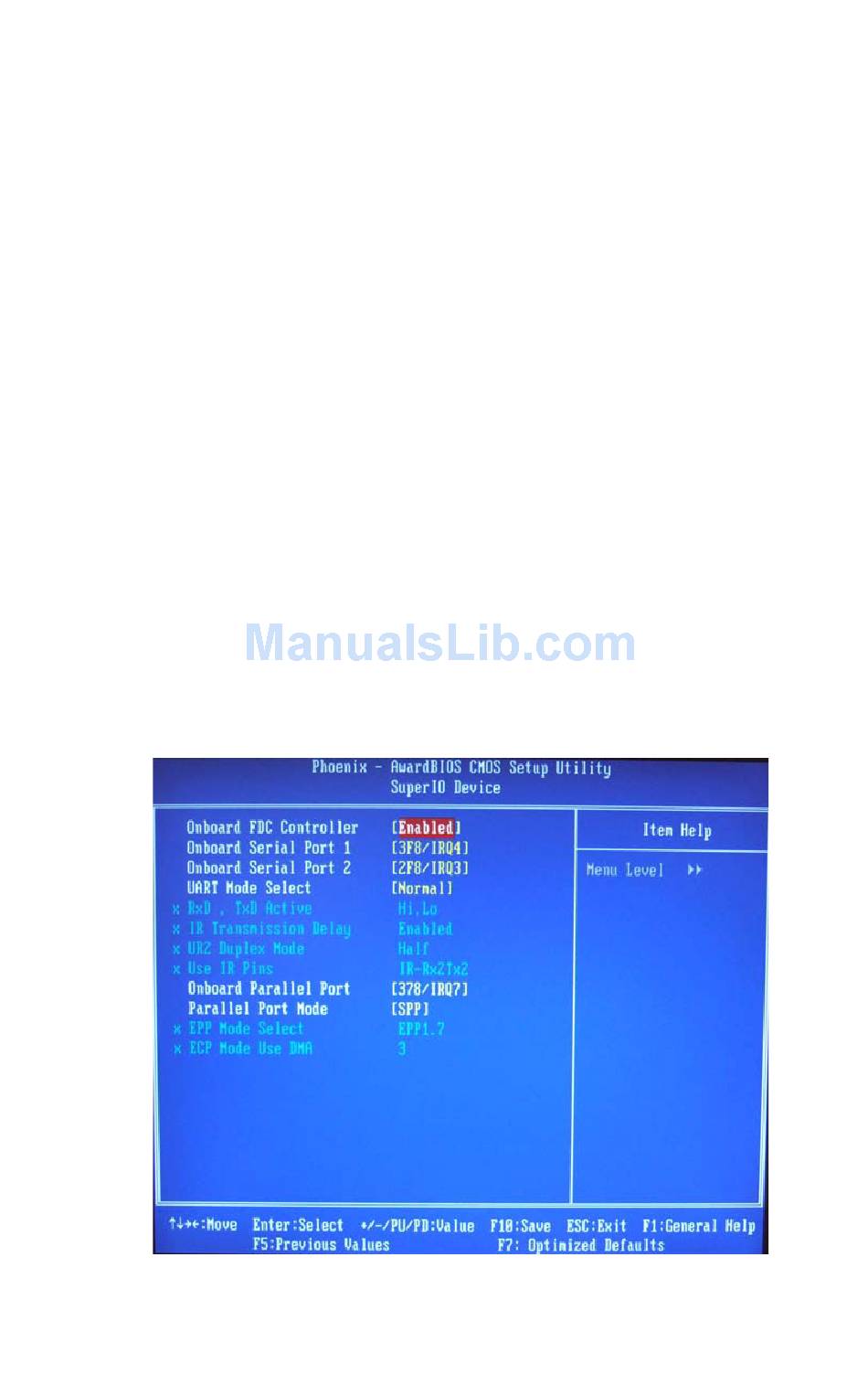

Figure 4.9: Super IO Device
43 Chapter 4
