65DVB/65DV2

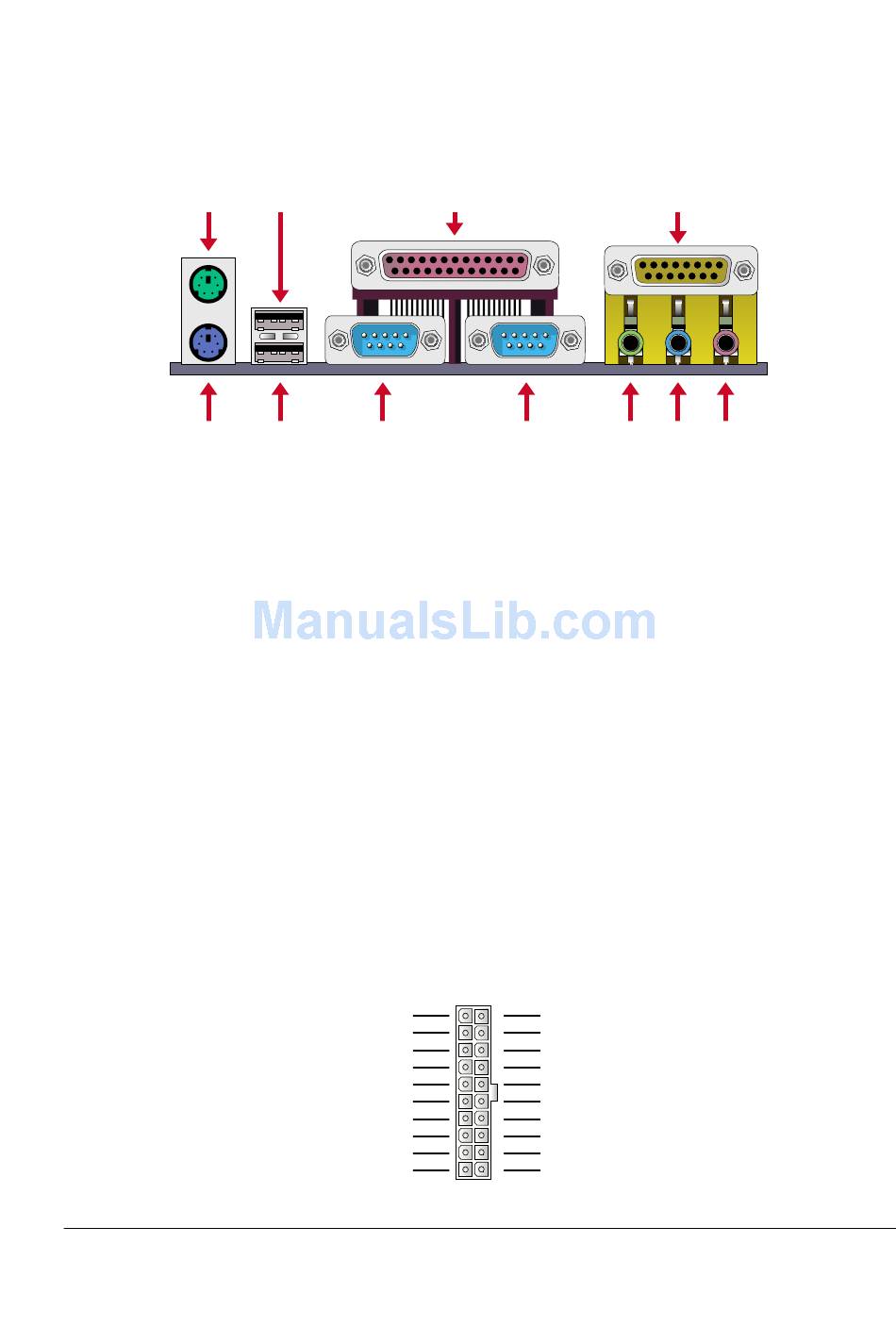

2-6.2 CHASSIS PANEL CONNECTOR

A.
E.

2-6.3 ATX POWER SUPPLY CONNECTOR

• This connector connects to an ATX power supply. The plug from the power
supply only inserts in an orientation because of the different hole sizes.
Find the proper orientation and push down firmly making sure that all pins
are aligned.
• Reminding that your power supply should support at least 10mA on the
5V standby voltage. It may cause an difficulty to power on the system if
the power supply cant support the load.
• For Wake On LAN function, the power supply should support at least
720mA current.
26
B.
F. G.
A : PS/2 MOUSE PORT
B : USB 0 PORT
C : LPT1 PORT
D : GAME/MIDI PORT
E : PS/2 KEYBOARD PORT
F : USB 1 PORT
G : COM1 PORT
H : COM2 PORT
I : LINE / SPEAKER OUT
J : LINE IN
K : MICROPHONE
+12V
+5V Standby
Power Good
GND
VCC
GND
VCC
GND
VCC3
VCC3
C.
H.
VCC
VCC
-5V
GND
GND
GND
Power Supply on
GND
-12V
VCC3
D.
I. J. K.
