2-1 CPU INSTALLATION

Warning!!!
Never run the processor without the heat sink properly and firmly attached
PERMANENT DAMAGE WILL RESULT.

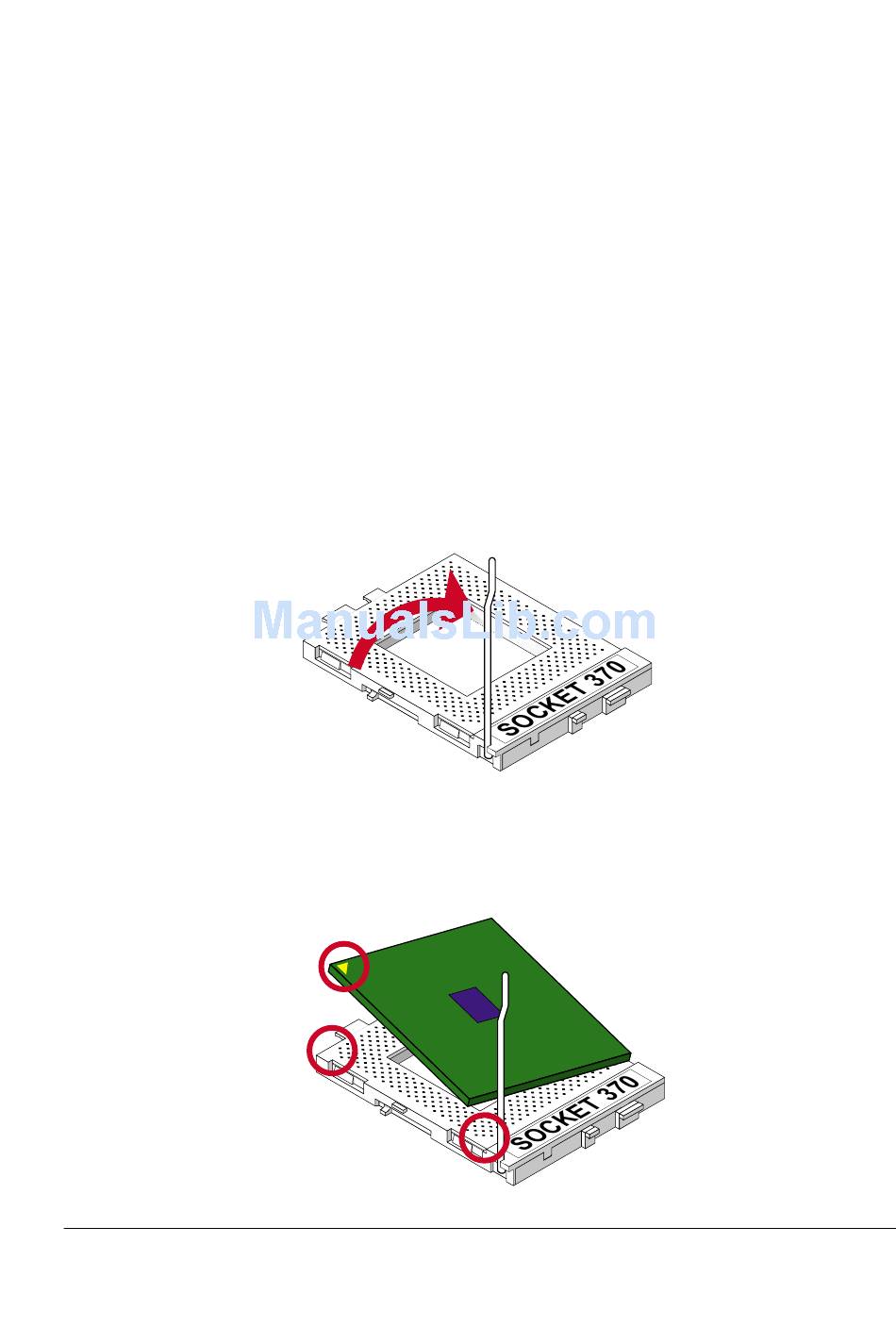

1. Pull the lever sidways away from the socket, and then raise the lever up
to a 90-degree angle.
2. Take note of the red circle as below picture. When insert the CPU into
socket, you can find out there is a definite pin orientation for CPU and
socket.
