SOLTEK SL-65DVB User Manual page 25

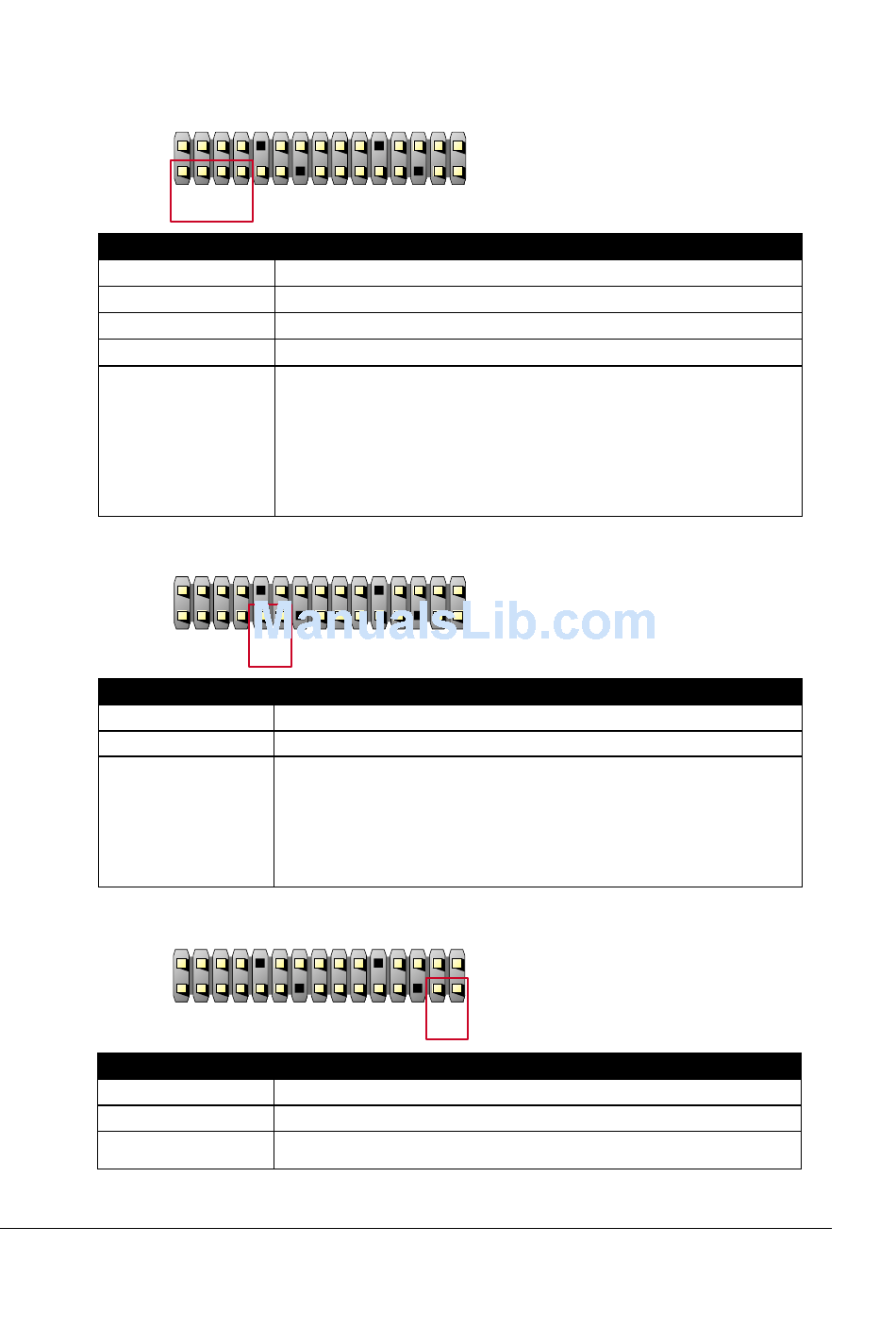

J3
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
SPEAKER CONNECTOR
PIN 1
PIN 2
PIN 3
PIN 4
DESCRIPTION
J3
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
RESET SWITCH CONNECTOR
PIN 5
PIN 6
DESCRIPTION
J3
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
SUSPEND LED
PIN 14
PIN 15
DESCRIPTION
SPEAKER SIGNAL
NONE
GND
+5V
This SPEAKER connector connects to the case-
mounted speaker. Two sources (LINE OUT and
SPEAKER) allow you to hear system beeps and
warnings. Only SPEAKER allows you to hear system
beeps before the integrated audio has been properly
initialized.
RESET SIGNAL
GND
RESET SWITCH connector connects to the case-
mounted reset switch for rebooting your system
without having to turn off your power switch. This is
a preferred method of reboot to prolong the life of
the system's power supply.
SUSPEND LED SIGNAL
GND
Connect to Suspend indicator light.
65DVB/65DV2
