2-4 BUS RATIO SELECT

• Normally, the Bus Ratio (Frenquency Multiple) of your processor is locked
by processor's Vendor,setting of the CPU Bus Ratio will have no effect.
• Bus Ratio exceed 8.0X, user can not change all values from the ratio will
be detected by BIOS automatically.
• The Bus Ratio Setting is available on unlocked processors only.
3.0x
4.0x
5.0x
6.0x
7.0x
8.0x

2-4.1 BUS CLOCK SELECT

• Over clocking is not recommanded, your system may work unstable.
66/100/133MHz
18

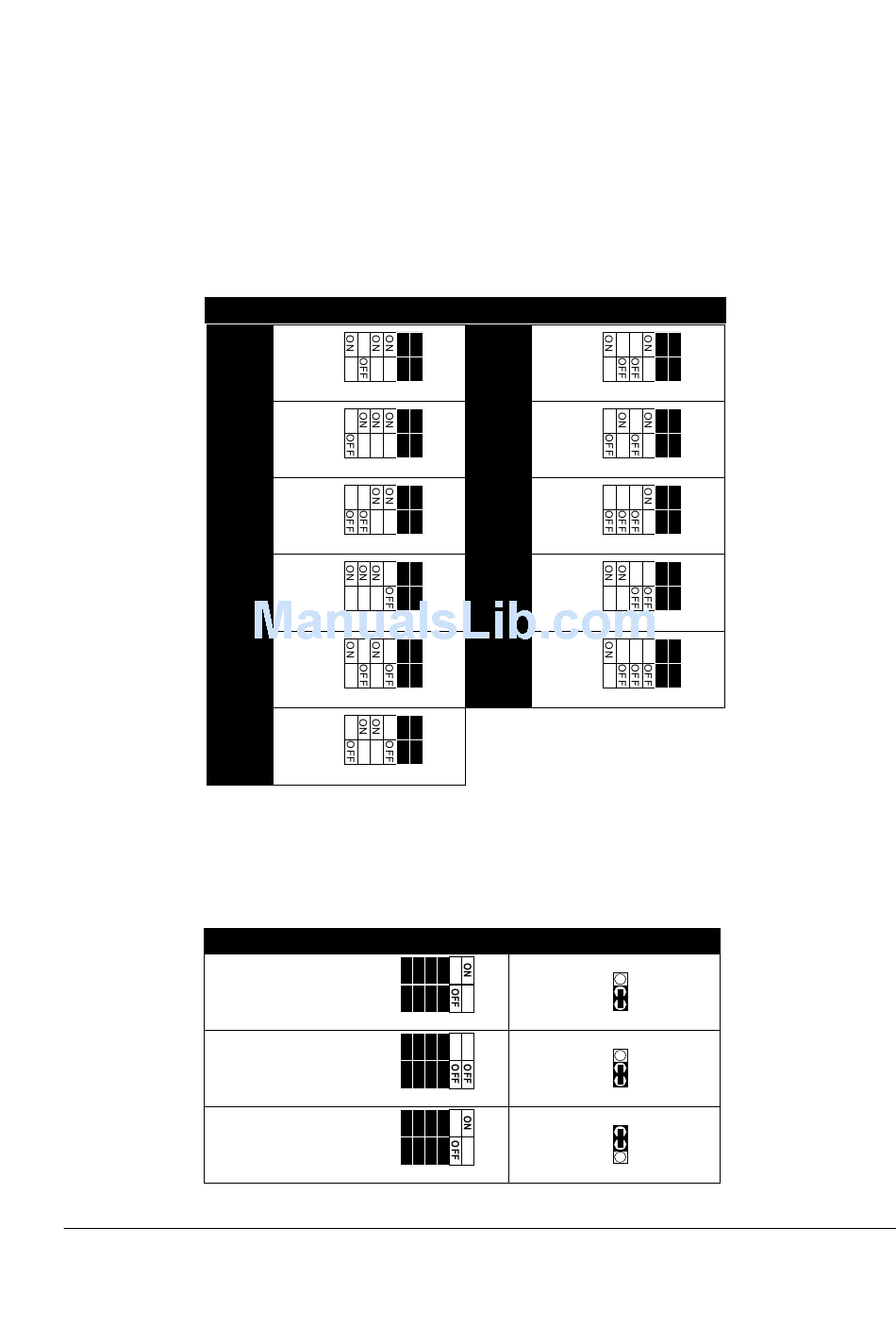

SW1 DIP1 ~ DIP4 SETTING
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
SW1 DIP5 ~ DIP6
ON
Auto Select
(default)
1 2 3 4 5 6
ON
100MHz
1 2 3 4 5 6
ON
133MHz
1 2 3 4 5 6
ON
3.5x
1 2 3 4 5 6
ON
4.5x
1 2 3 4 5 6
ON
5.5x
1 2 3 4 5 6
ON
6.5x
1 2 3 4 5 6
ON
7.5x
1 2 3 4 5 6
JP11: FSB SELECT
1
3
1
3
1
3
