SOLTEK SL-65DVB User Manual page 24

65DVB/65DV2

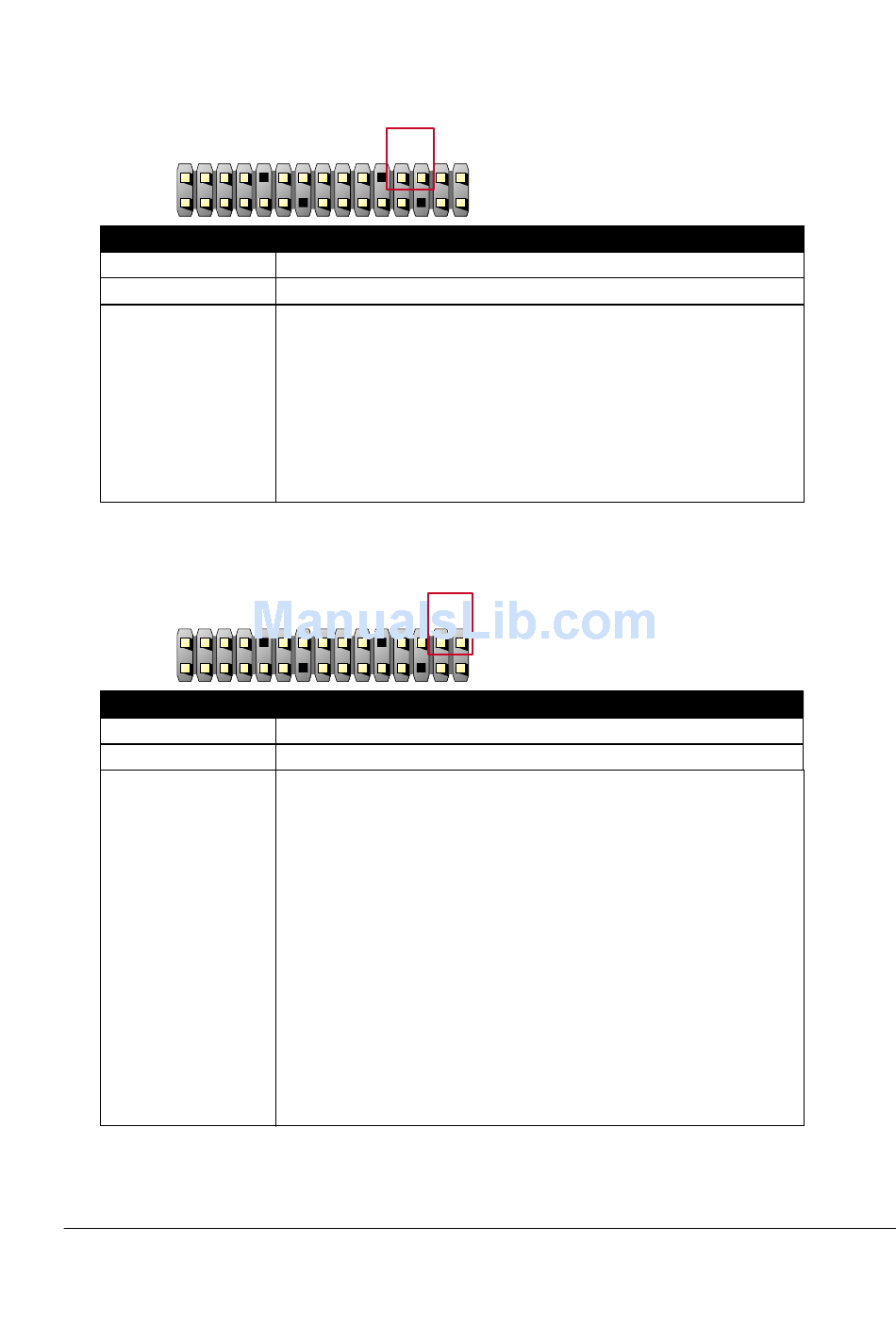

J2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
ATX POWER SWITCH
PIN 12
PIN 13
DESCRIPTION
J2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
SMI CONNECTOR
PIN 14
PIN 15
DESCRIPTION
24
ATX POWER SWITCH
GND
The system power is controlled by a momentary
switch connected to this lead.
Pressing the button once will switch the system
between ON and SOFT OFF.
Pushing the switch while in the ON mode for more
4 seconds will turn the system off.
The system power LED shows the status of the
system's power.
SMI(System Managment Interrupt) SIGNAL
GND
This allows user to manually place the system into a
suspend mode or "Green" mode, where system
activity is decreased to save electricity and prolong
the life of certain components when the system is
not in use. This 2-oin connector connects to the
case-mounted suspend switch. If you do not have a
switch for the connector, you may use the "Turbo
Switch".
SMI is activated when it detects a short to open
moment and therefore leaving it shorted will not
cause any problems. This may require one or two
presses depending on the position of the switch.
Wake-Up can be controlled by settings in the BIOS
but the keyboard will always allow wake-up(the SMI
lead cannot wake up the system).
