65DVB/65DV2

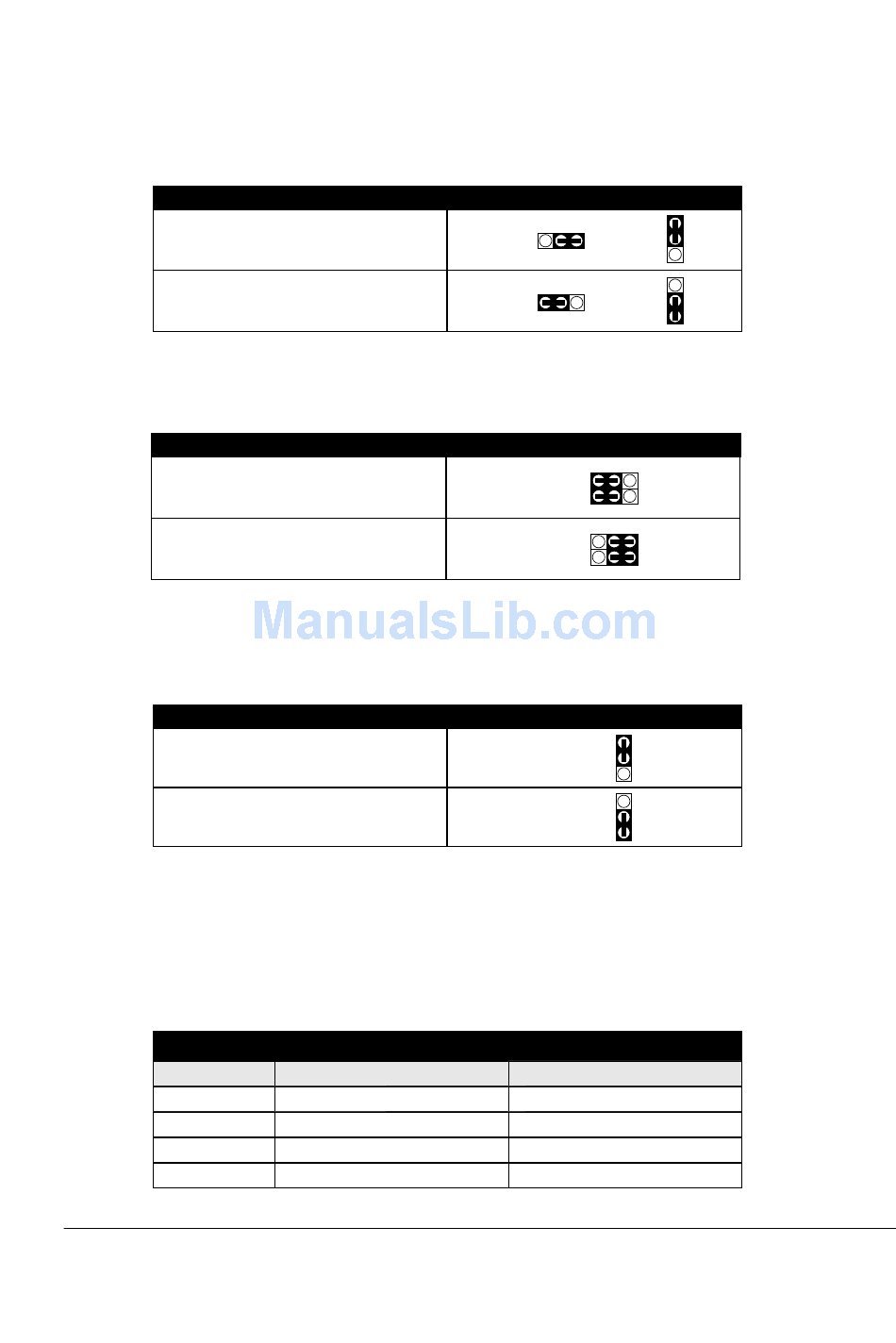

2-5.3 ONBOARD AC97 CODEC SELECT (JP5/JP9)

JP5/JP9: ONBOARD AC'97 CODEC SELECT
Disabled
Enabled (default)

2-5.4 USB PORT SELECT-2 (JP6/JP7)

JP6/JP7: USB PORT SELECT (2)
Redirect USB port 2 to USB 2
connector (default)
Redirect USB port 2 to AGP

2-5.5 POWER LOST RESUME (JP8)

JP8: POWER LOST RESUME
Normal (default)
Enabled
NOTE: This jumper allows user to use the switch of ATX power supply
to control ON/OFF switch directly instead of using the power
switch on the motherboard.
2-5.6 CD-ROM AUDIO CONNECTOR (CD_IN1/CD_IN2)
CD_IN1/CD_IN2: CD-ROM AUDIO CONNECTOR
PIN NO.
PIN 1
PIN 2
PIN 3
PIN 4
20
JP5
JP5
CD_IN1
GND
Left Channel
GND
Right Channel
3
1 3
JP9
1
3
1 3
JP9
1
1 3
JP6
JP7
1 3
1 3
JP6
JP7
1 3
3
JP8
1
3
JP8
1
CD_IN2
Left Channel
GND
GND
Right Channel
