2-7.2 Chassis Panel Connector - SOLTEK SL-65ME User Manual

J3
1 2 3 4 5 6 7 8 9 10 11 12 13
SUSPEND LED
PIN 14
PIN 15
DESCRIPTION

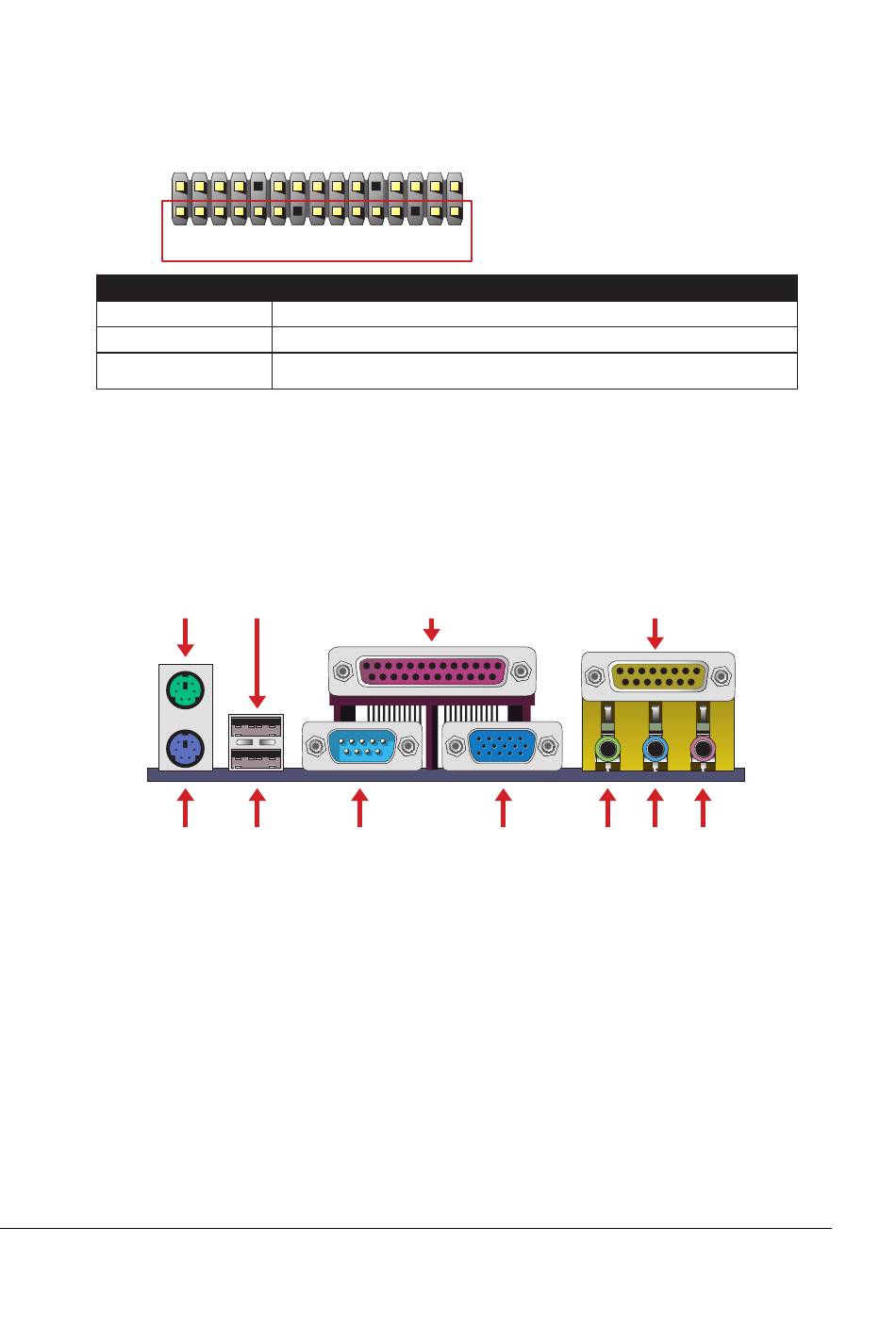

2-7.2 CHASSIS PANEL CONNECTOR

A. B.
E. F.
14 15
SUSPEND LED SIGNAL
GND
Connect to Suspend indicator light.
C.
G.
A : PS/2 MOUSE PORT
B : USB 0 PORT
C : LPT1 PORT
D : GAME/MIDI PORT
E : PS/2 KEYBOARD PORT
F : USB 1 PORT
G : COM1 PORT
H : VGA PORT
I : LINE / SPEAKER OUT
J : LINE IN
K : MICROPHONE
D.
H. I. J.
65M E / 65ME+
K.
25
