6.5.3 Port Control
6 0 B
In Port configuration, user can view every port status that depended on user setting
and the negotiation result.
1.
Port: select the port that user wants to configure.
2.
State: Current port status. The port can be set to disable or enable mode. If the
port setting is disabled, it will not receive or transmit any packet.
3.
Auto Negotiation: enable or disable auto negotiation
4.
Speed: when Auto Negotiation is disabled, user can select the port link speed.
5.
Duplex: set full-duplex or half-duplex mode of the port.
6.
Flow Control: set flow control function is Enable or Disable. The default value is
Enable.
7.
Jumbo: Assign the Jumbo frame size. The maximum is 10K bytes.
8.
Click
Apply

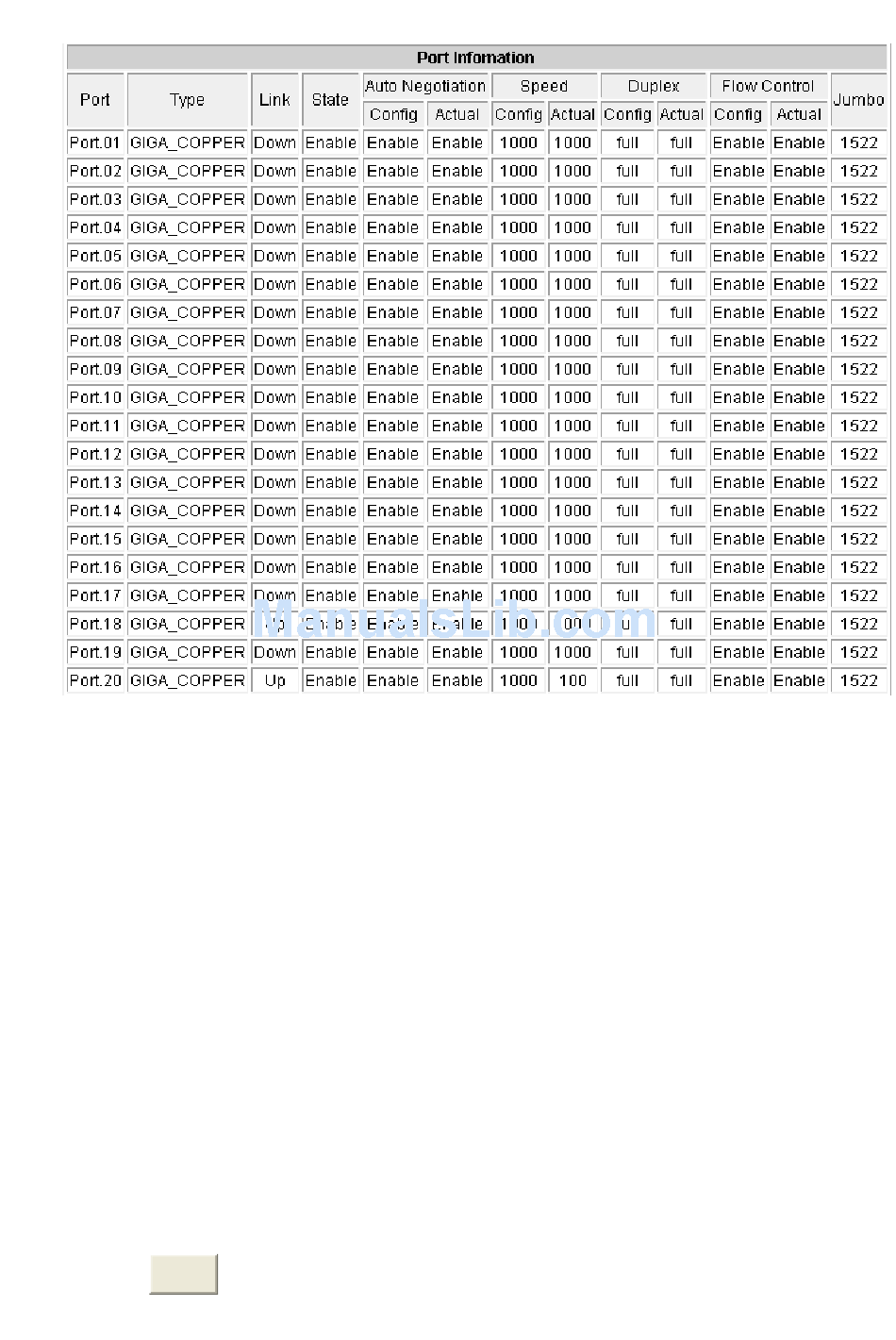

Port Information interface
.
29
