6. Click Apply
6.6.2 Rapid Spanning Tree
6 5 B
The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree
Protocol and provides for faster spanning tree convergence after a topology change.
The system also supports STP and the system will auto detect the connected device
that is running STP or RSTP protocol.
6.6.2.1 STP System Configuration
9 0 B
User can view spanning tree information about the Root Bridge
User can modify RSTP state. After modification, click
Mode: user must enable or disable RSTP function before configure the
related parameters
Priority (0-61440): a value used to identify the root bridge. The bridge with
the lowest value has the highest priority and is selected as the root.
Max Age (6-40): the number of seconds a bridge waits without receiving
.

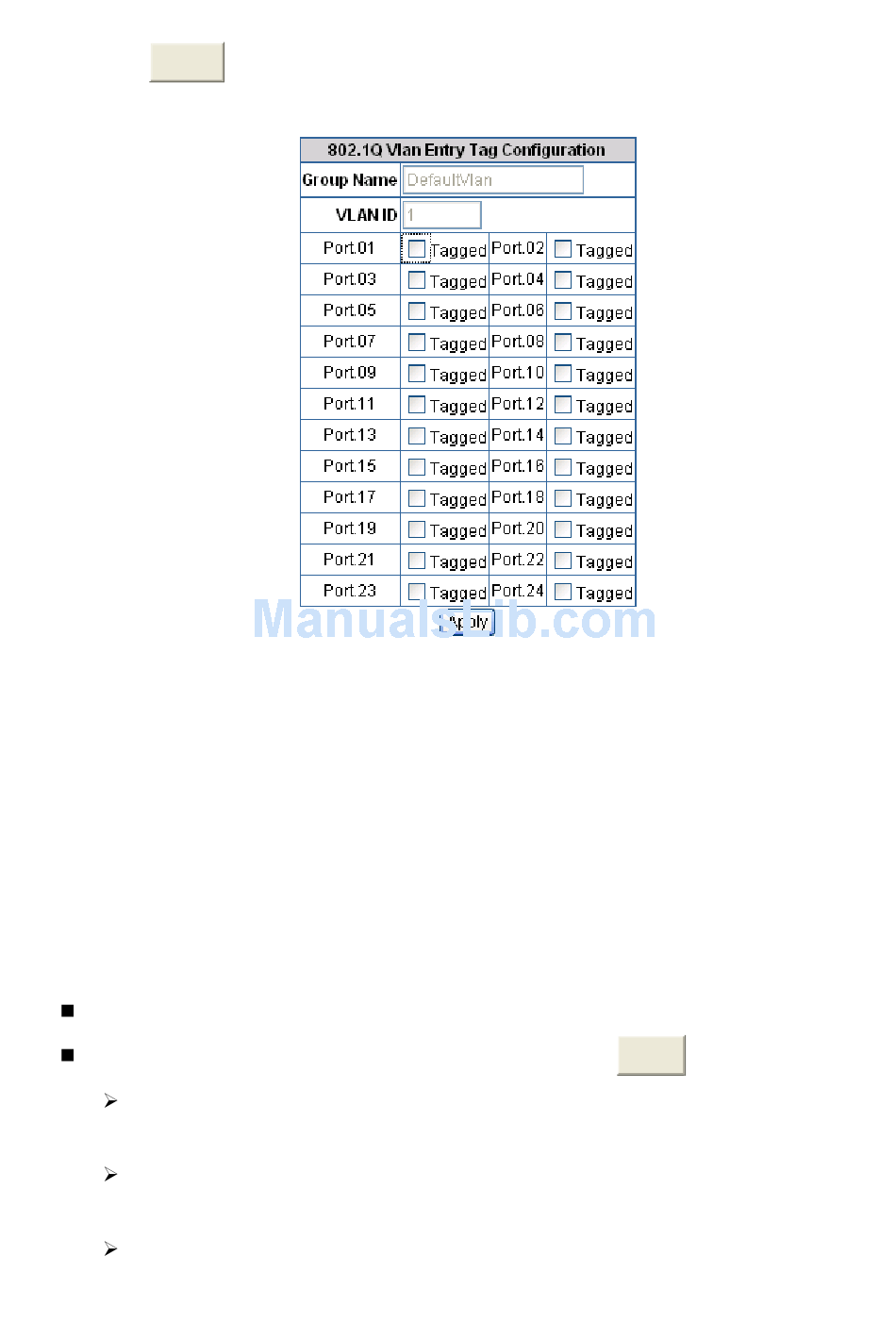

VLAN Table Configuration - Edit interface
37
button
Apply
