physically.

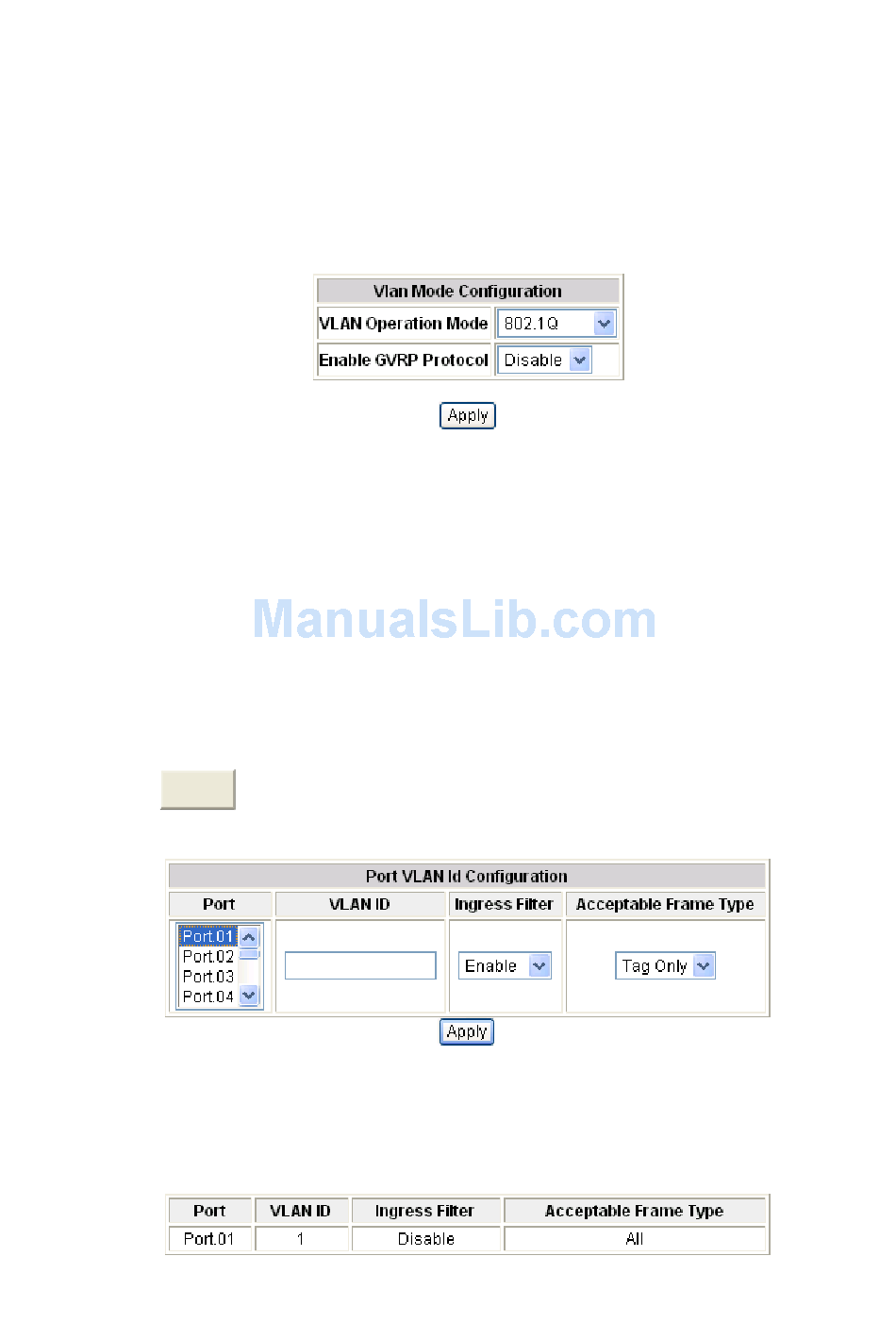

6.6.1.1 VLAN Mode Configuration
8 7 B
The switch supports port-based and 802.1Q (tagged-based) VLAN. The default
configuration of VLAN operation mode is "802.1Q".
6.6.1.2 Port VLAN Id Configuration
8 8 B
1.
Port: Select the port number in the table list.
2.
VLAN ID: Key in the VLAN ID.
3.
Ingress Filter: Enable or Disable the ingress filter.
4.
Acceptable Frame Type: Choose Tag only or All type.
5.
Click
Apply
VLAN Mode Configuration interface
Port VLAN Id Configuration interface
35
