Summary of Contents for LevelOne GSW-0506
- Page 1 LevelOne GSW-0506 GSW-0806 5/8-Port Gigabit Switch User Manual Benutzerhandbuch Version 1.0-0603...
-
Page 3: Fcc Warning
FCC Warning This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 5 “Switch” (first letter upper case) to refer to the GSW- 0506/0806 5/8-Port Gigabit Switch, and “switch” (first letter lower case) to refer to all Ethernet switches, including the GSW-0506/0806 5/8-Port Gigabit Switch. Overview of this User Manual Introduction. Describes the Switch and its features.
-
Page 6: Gigabit Ethernet Technology
N T R O D U C T I O N English This section describes the features of the Switch, as well as providing some background information about Gigabit Ethernet and switching technology. Gigabit Ethernet Technology Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the same packet structure, format, and support for CSMA/CD protocol, full duplex, flow control, and management objects, but with a tenfold increase in... -
Page 7: Switching Technology
able to perform 10 times the number of operations in the English same amount of time. Switching Technology Another key development pushing the limits of Ethernet technology is in the field of switching technology. A switch bridges Ethernet packets at the MAC address level of the Ethernet protocol transmitting among connected Ethernet or fast Ethernet LAN segments. - Page 8 an ideal solution to most kinds of local area network English congestion problems. Features The Switch was designed for easy installation and high performance in an environment where traffic on the network and the number of users increase continuously. 5/8-port 10/100/1000 Mbps Gigabit Switch Conforms to IEEE 802.3, 802.3u,802.3ab and 802.3x Auto-MDIX on all ports...
- Page 9 N P A C K I N G A N D E T U P English This chapter provides unpacking and setup information for the Switch. Unpacking Open the shipping carton of the Switch and carefully unpack its contents. The carton should contain the following items: One Gigabit Switch Four rubber feet with adhesive backing One external power adapter...

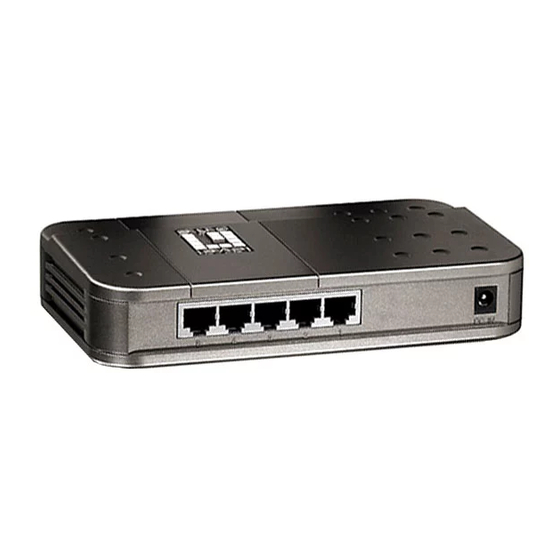

- Page 10 O M P O N E N T S English This chapter describes the front panel, rear panel and LED indicators of the Switch. GSW-0506 Front Panel The figure below shows the front panels of the switch. Front panel view of the Switch...
- Page 11 DC Power Jack: English Power is supplied through an external AC power adapter. Check the technical specification section for information about the AC power input voltage. 1000BASE-T Ports: Five Gigabit Ethernet ports of 10/100/1000Mbps Auto- Negotiation interface. LED Indicators The LED indicators of the Switch include Power, Link/Act, 1000Mbps and 100Mbps.
- Page 12 When the connection (or link) is 10Mbps, both of English 1000Mbps and 100Mbps LED indicators are off. GSW-0806 Front Panel The figure below shows the front panels of the switch. Front panel view of the Switch LED Indicators Comprehensive LED indicators display the conditions of the Switch and status of the network.
- Page 13 DC Power Jack: English Power is supplied through an external AC power adapter. Check the technical specification section for information about the AC power input voltage. 1000BASE-T Ports: Eight Gigabit Ethernet ports of 10/100/1000Mbps Auto- Negotiation interface. LED Indicators The LED indicators of the Switch include Power, Link/Act, 1000Mbps and 100Mbps.
- Page 14 E C H N I C A L P E C I F I C A T I O N S English General Model: GSW-0506 GSW-0806 Standards: IEEE 802.3ab 1000BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3 10BASE-T IEEE 802.3x Flow Control...
-
Page 15: Physical And Environmental
English Physical and Environmental Model: GSW-0506 GSW-0806 DC inputs: 7.5V 1A Power 5 watts maximum 7.5 watts maximum Consumption: Operating 0 °C ~ 40°C Temperature: Storage -10°C ~ 70°C Temperature: Humidity: 5% ~ 95% RH, non-condensing Dimensions: 175 x 104 x 33 mm (W x H x D) - Page 17 Ü B E R D I E S E N L E I T U N G Deutsch Diese Anleitung wird ihnen erklären, wir Sie ihren GSW- 0506/0806 5/8-Port Gigabit Switch, mit ihrem Gigabit Ethernet Netzwerk verbinden.
- Page 18 I N L E I T U N G Deutsch Features Der Swtich wurde für eine einfache Installation und hohe Performance konzipiert. 5/8-port 10/100/1000 Mbps Gigabit Switch Entspricht IEEE 802.3, 802.3u,802.3ab und 802.3x Auto-MDIX an allen Ports 10/16 Gbps back-plane N-Way Auto-Negotiation Back pressure Half Duplex Flow Control Full Duplex...
- Page 19 U S P A C K E N U N D I N R I C H T E N Deutsch Dieses Kapitel enthält Information zum Lieferumfang und Anschliessen des Switches. Packungsinhalt Dieses Packet sollte folgende Gegenstände enthalten: Einen Gigabit Switch Vier Gummifüße Ein externes NetzteilOne external power adapter Diese Anleitung...
- Page 20 Dieses Kapitel beschreib die Vorder- und Rückseite und die Deutsch LED Anzeigen des Switches GSW-0506 Vorderseite Diese Abbildung zeigt die Vorderseite des Switches. Vorderansicht des Switches LED Anzeigen Mehrere LED Anzeigen, zeigen des Zustand des Switches und den Status des Netzwerkes an. Eine Beschreibung der LED folgt später.
- Page 21 Die Stromversorgung erfolgt durch ein externes Netzteil. Für die Deutsch technischen Spezifikationen schauen sie bitte im Anhang. 1000BASE-T Ports: Fünf Gigabit Ethernet Port 10/100/1000Mbps Auto.Negotiation Interface. LED Anzeige Die LED Anzeige des Switches beinhaltet Power, Link/Act, 1000Mbps und 100Mbps. Es folgt eine Erklärung der einzelnen LEDs Power Diese Anzeige leuchtet grün, wenn der Switch Stom bekommt,...
- Page 22 Deutsch GSW-0806 Vorderseite Diese Abbildung zeigt die Vorderseite des Switches. Vorderansicht des Switches LED Anzeigen Mehrere LED Anzeigen, zeigen des Zustand des Switches und den Status des Netzwerkes an. Eine Beschreibung der LED folgt später. Rückseite Auf der Rückseite ist ein Gleichstromanschluß (DC). Die folgende Abbildung zeigt die Rückseite des Switches.
- Page 23 Fünf Gigabit Ethernet Port 10/100/1000Mbps Deutsch Auto.Negotiation Interface. LED Anzeige Die LED Anzeige des Switches beinhaltet Power, Link/Act, 1000Mbps und 100Mbps. Es folgt eine Erklärung der einzelnen LEDs Power Diese Anzeige leuchtet grün, wenn der Switch Stom bekommt, andernfalls ist sie aus. Link/Act Diese leuchtet,...
