GSW-2473
24-Port Fast Ethernet + 2-Port Gigabit Ethernet Combo Web
Smart Switch

User Manual

V1.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSW-2473 and is the answer not in the manual?

Questions and answers

Related Manuals for LevelOne GSW-2473

Summary of Contents for LevelOne GSW-2473

  • Page 1: User Manual

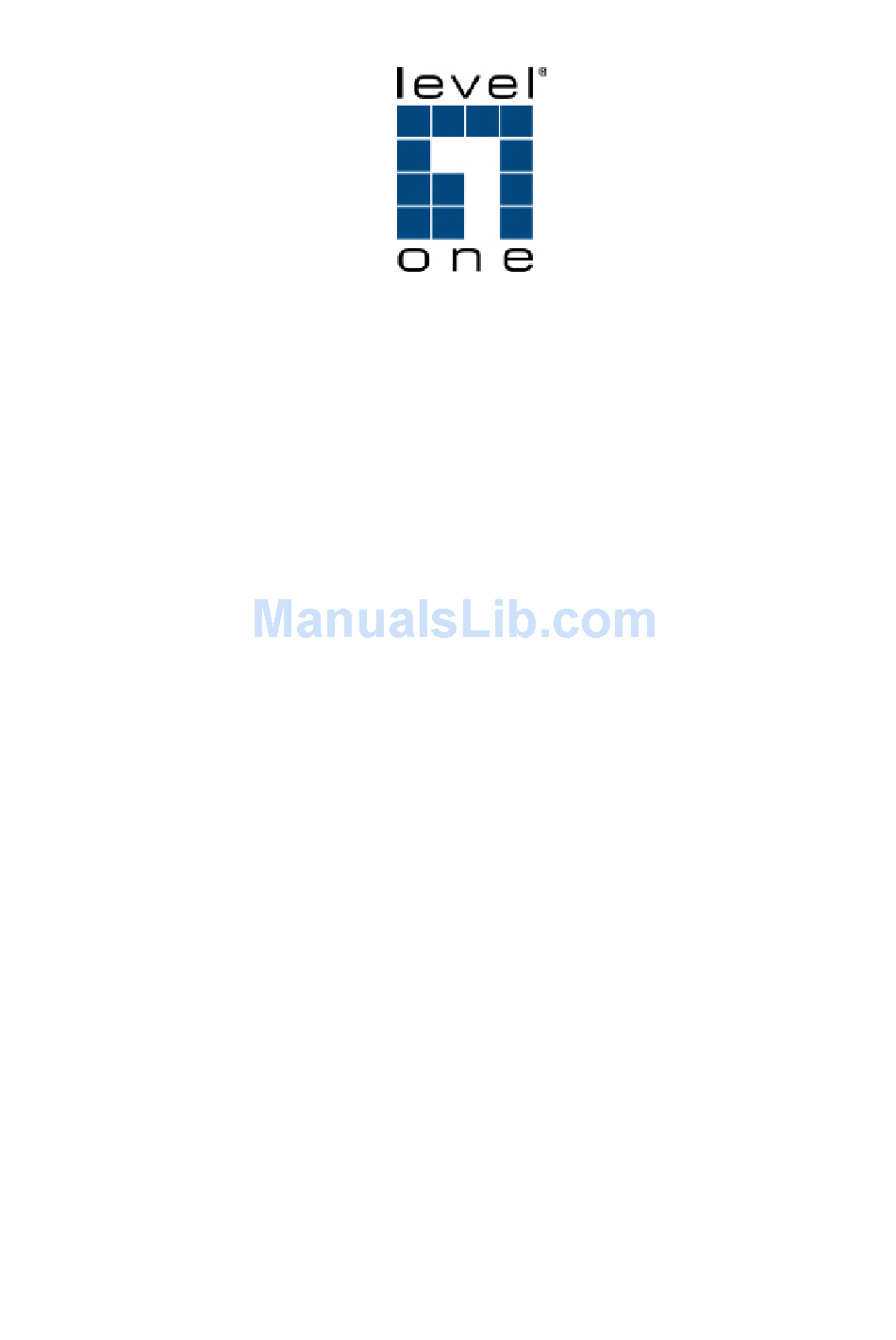

    GSW-2473 24-Port Fast Ethernet + 2-Port Gigabit Ethernet Combo Web Smart Switch User Manual V1.4...

  • Page 2: Fcc Warning

    FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Table Of Contents

    Content INTRODUCTION..............1 Features ........................ 1 Package Contents....................2 HARDWARE DESCRIPTION ..........3 Physical Dimensions ..................... 3 Front Panel ......................3 LED Indicators ...................... 5 Gigabit port LED Indicator ................. 5 Rear Panel ......................6 Desktop Installation ....................7 Attaching Rubber Pads ..................7 Rack-mounted Installation ..................
  • Page 4 Authentication Configuration ................13 System IP Configuration .................. 14 System Status ....................15 Default Switch Setting and Reboot ..............16 Port Management ....................17 Port Configuration ................... 17 Port Mirroring ....................19 Bandwidth Control ................... 20 Broadcast Storm Control ................. 22 VLAN Setting ......................
  • Page 5 Logout ......................... 44 TROUBLESHOOTING ............45 Incorrect connections ..................45 　 Faulty or loose cables ............... 45 　 Non-standard cables ................. 45 　 Improper Network Topologies ............46 Diagnosing LED Indicators ................. 46 　 Cabling ....................46 TECHNICAL SPECIFICATION ..........47 APPENDIX ................

  • Page 6: Introduction

    Introduction The 24-Port Fast Ethernet + 2-Port Gigabit Ethernet Combo Web Smart Switch is a multi-port Switch that can be used to build high-performance switched workgroup networks. This switch is a store-and-forward device that offers low latency for high-speed networking. The switch is targeted at workgroup, department or backbone computing environment.

  • Page 7: Package Contents

    Package Contents Unpack the contents of the 24-Port Fast Ethernet + 2-Port Gigabit Ethernet and verify them against the checklist below: Combo Web Smart Switch 24-Port Fast Ethernet + 2-Port Gigabit Ethernet Combo Web Smart Switch Rack-Mounted Kit Power Cord Four Rubber Pads CD User Manual Compare the contents of the 24-Port Fast Ethernet + 2-Port Gigabit Ethernet...

  • Page 8: Hardware Description

    Hardware Description Hardware Description This section mainly describes the hardware of the 24-Port Fast Ethernet + 2-Port This section mainly describes the hardware of the 24-Port Fast Ethernet + 2-Port Gigabit Ethernet Combo Web Smart Switch and gives a physical and functional Gigabit Ethernet Combo Web Smart Switch and gives a physical and functional overview on the certain switch.
  • Page 9 allow connecting to another Switch or workstation without changing non-crossover or crossover cabling. 2 Giga port: The traditional RJ-45 ports can be used for up-linking wide-band paths in short distance (<100m), or the appropriate replaceable mini-GBIC ports can be used for the application of wideband up-linking and long distance transmissions to fit the flexible field request.

  • Page 10: Led Indicators

    LED Indicators The LED Indicators display real-time information of systematic operation status. The following table provides descriptions of LED status and their meaning. Status Description Green Power On Power Power is not connected Green The port works in 10/100 Full-duplex mode Blinks Networking is active (continuously)

  • Page 11: Rear Panel

    meaning. Status Description The port works in 10/100 Full-duplex or gigabit Green mode Blinks Networking is active (continuously) Blinks Act/Duplex (off for about 2 The port works in 10/100 Half-duplex mode seconds and on alternatively) No device attached Green The port works at speed of 1000Mbps Speed Blinks The port works at speed of 100Mbps...

  • Page 12: Desktop Installation

    Desktop Installation Set the switch on a sufficiently large flat space with a power outlet nearby. The surface where the user put the switch should be clean, smooth, level and sturdy. Make sure there is enough clearance around the switch to allow attachment of cables, power cord and allow air circulation.

  • Page 13: Power On

    [NOTE] For proper ventilation, it allows about at least 4 inches (10 cm) of clearance on the front and 3.4 inches (8 cm) on the back of the Switch. This is especially important for enclosed rack installation. Power On Connect the power cord to the power socket on the rear panel of the Switch. The other side of power cord connects to the power outlet.

  • Page 14: Network Application

    Network Application This section provides you a few samples of network topology in which the switch is used. In general, the 24-Port Fast Ethernet + 2-Port Gigabit Ethernet Combo Web Smart Switch is designed as a segment switch which with its large address table (4k MAC address) and high performance, it is ideal for interconnecting networking segments.

  • Page 15: Segment Uplink

    Segment Uplink In the illustration below, two Ethernet switches (with PCs, print server, and local server attached) are connected via 1000-FX or 10/100/1000Base-TX cable. All the devices in this network can communicate with each other through the switches. Connecting servers to the switch allows other users to access the data on server.

  • Page 16: Web-Based Management

    Web-Based Management This section introduces the configuration and functions of the Web-Based management. About Web-based Management An embedded HTML web site resides in flash memory on the CPU board of the switch. It offers advanced management features and allows users to manage the switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer.

  • Page 17: User Login

    User Login Launch the Internet Explorer. Key in ‘http://’ and the IP address assigned to the 24-Port Fast Ethernet + 2-Port Gigabit Ethernet Combo Web Smart Switch. Then, press “Enter”. The login screen appears. Key in ID & Password. The default login ID and password are “admin”. Click “OK”, then the main page of the Web-based management appears.

  • Page 18: Administrator

    Administrator Administrator includes Authentication Configuration, System IP Configuration, System Status, and Load Default Setting. Authentication Configuration Change web management login user name and password for the management security issue. Username: Type in the new user name (The default value is ‘admin’). Password: Type in the new password (The default value is ‘admin’).

  • Page 19: System Ip Configuration

    System IP Configuration User can configure the IP Settings and DHCP client function in here. IP Address: Manually assign the IP address that the network is using. If DHCP function is enabled, the user doesn’t need to assign the IP address. And, the network DHCP server will assign the IP address displaying in this column for the switch.

  • Page 20: System Status

    System Status This page displays the information about the switch’s MAC address, how many ports it has, system version and kernel version. Besides, users can also fill in up to 12 characters in the Comment field for note. MAC Address: Displays the unique hardware address assigned by manufacturer (default).

  • Page 21: Default Switch Setting And Reboot

    Default Switch Setting and Reboot Reset switch to default configuration. Click Default to reset all configurations to the default value. Factory Default interface When you see the information as below, close the web window and launch again after a while. Reboot in progress...

  • Page 22: Port Management

    Port Management Port Management includes Port Configuration, Port Mirroring, Bandwidth Control, and Broadcast Storm Control. Port Configuration In Port Configuration, you can set and view the operation mode for each port. Auto-Negotiation: Enable and Disable. Being set as ‘Enable’, the Speed, Duplex mode, Pause, Backpressure, TX Capability and Address Learning are negotiated automatically.
  • Page 23 Port Configuration interface...

  • Page 24: Port Mirroring

    Port Mirroring The Port mirroring is a method for monitoring traffic in switched networks. That Traffic through ports can be monitored by any of the ports means traffic goes in or out monitored (source) ports will be duplicated into mirroring (destination) port. Port Mirroring interface Dest Port: Tick the check boxes beneath the port number label to be the destination (mirroring) port for monitoring Rx only, Tx only or both RX and TX...

  • Page 25: Bandwidth Control

    Bandwidth Control You can set up every port’s frame limitation type and bandwidth rate. Bandwidth Control interface Speed Base: Pull down the selection menu item to choose the speed base in low or high mode. As the picture shows,...
  • Page 26 Port No: Pull down the selection menu to choose a port to be configured. Tx Rate: Pull down the selection menu to choose the transmitting rate. When Speed Base is set as Low, the transmitting rate for all the ports is in the range between 32K bytes and 8M bytes.

  • Page 27: Broadcast Storm Control

    Broadcast Storm Control The switch implements a broadcast storm control mechanism. Tick the check boxes to have them beginning to drop incoming broadcast packets if the received broadcast packet counts reach the threshold defined. Each port’s broadcast storm protection function can be enabled individually by ticking the check boxes. Broadcast Storm Control interface Threshold: Type in the threshold in the range between 1 and 63 to limit the maximum byte counts, which a port can send or receive in a period of time.

  • Page 28: Vlan Setting

    VLAN Setting A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which would allow you to isolate network traffic, so only the members of the same VLAN will receive traffic from the ones of the same VLAN. Basically, creating a VLAN from a switch is logically equivalent of reconnecting a group of network devices to another Layer 2 switch.
  • Page 29 VLAN Member Setting (Port Based) interface...

  • Page 30: Vlan Mode

    VLAN Mode Tagged-based VLAN is an IEEE 802.1Q specification standard. Therefore, it is possible to create a VLAN across devices from different switch venders. IEEE 802.1Q VLAN uses a technique to insert a “tag” into the Ethernet frames. Tag contains a VLAN Identifier (VID) that indicates the VLAN numbers. Please notice that this page is only for Tag Based VLAN.
  • Page 31 care, and RemoveTag—for selecting. Uplink: In normal operation, if the destination and source are located in different VLANs, the packets will be dropped. Having ticked the radio button, the port is configured as an up-link port which is used in an application such as virus check or firewall.

  • Page 32: Vlan Pvid Index Setting

    VLAN PVID Index Setting The switch supports a 32-entry VLAN table to provide 32 active VLANs out of 4096 VLANs defined in IEEE802.1Q. User can define 32 VID entries in the VID table and enable the tag VLAN function. When a tagged packet is received, the switch compares the VID field in the packet with the ones defined in the VID table.

  • Page 33: Per Port Counter

    Per Port Counter This page displays the statistics of each port. Four counter categories—Receive Packet & Transmit Packet, Collision Count & Transmit Packet, Drop Packet & Receive Packet, and CRC error Packet & Receive Packet—are available to be chosen. Receive Packet & Transmit Packet: Displays the counts of received and transmitted packets of each port.
  • Page 34 Per Port Counter interface...

  • Page 35: Qos Setting

    QoS Setting Here you can configure QoS policy priority mode and CoS (Class of Service) configuration. QoS (Quality of Service) refers to mechanisms in the network software that make the actual determination of which packets have priority. CoS refers to feature sets, or groups of services, that are assigned to users based on company policy.

  • Page 36: Priority Mode

    Priority Mode There are three priority modes available to specify the priority of packets being serviced. Those include First-In-First-Out, All-High-Before-Low, and Weight-Round-Robin. First-In-First-Out: Packets are placed into the queue and serviced in the order they were received. All-High-Before-Low: The packets of low weight will be serviced after all of the packets of high weight are serviced.

  • Page 37: Class Of Service Configuration

    Class of Service Configuration Class of Service (CoS) is a 3-bit field within a layer two Ethernet frame header using IEEE 802.1Q. Class of Service (CoS) is a way of managing traffic in a network by grouping similar types of traffic (for example, e-mail, streaming video, voice, large document file transfer) together and treating each type as a class with its own level of service priority.
  • Page 38 Class of Service Configuration interface...

  • Page 39: Security Filter

    Security Filter This function provides the security which only the MAC addresses bound with the port are allowed to access it. Port No: Displays the port number being assigned the MAC addresses. MAC Address: Users can assign up to 3 MAC addresses to the port. Read: Pull down the selection bar to choose a port number and click the Read button to show the MAC addresses bound with the port or modify the MAC addresses.
  • Page 40 MAC Address Filter interface...

  • Page 41: Trunk

    Trunk Port trunk allows multiple links to be bundled together and act as a single physical link for increased throughput. It provides load balancing, and redundancy of links in a switched inter-network. Actually, the link does not have an inherent total bandwidth equal to the sum of its component physical links.
  • Page 42 be aggregated together to form a logic trunk group. Trunk 0: There are four ports—port 1 to port 4—can be involved in a trunk group. Tick at least two check boxes and select the trunk type to configure Trunk 0. Trunk 1: There are four ports—port 5 to port 8—can be involved in a trunk group.

  • Page 43: Aggregation Information

    Aggregation Information Having set up the Trunk Configuration page in static mode, you will see the static trunk group information in here. Aggregation Information interface...

  • Page 44: Configuration Backup/Recovery

    Configuration Backup/Recovery Backup: This page allows the user to back up the system configuration by copying the text in the field below to a text file. Recovery: If the user wants to restore the previous configuration, just copies the text from the text file and pastes it to the system information field. Then the user has to fill in the password (login password) and click the Update button to start system configuration recovery process.

  • Page 45: Firmware Update

    Firmware Update The firmware update function supports web and command prompt window interface for the user to update the firmware to the switch. Both the method require the user to type in the password (login password) and type again for password confirmation, then click Update to start firmware update process.
  • Page 46 Updating Firmware to the flash interface After a while, the message shows as below to indicate the user that the update process is complete. Update Complete message on web As for TFTP firmware update, users can get into the command prompt window to proceed.
  • Page 47 name of the firmware) and press enter to update. Command Prompt Window Note The system will erase the flash at first and then update the new firmware during the update process. If the update process is not finished, the web page of Firmware Update will always be displayed when the switch powers on.

  • Page 48: Reboot

    Reboot Click Reboot to restart the switch. Reboot interface...

  • Page 49: Logout

    Logout Having clicked on Logout item in the tree menu, the system will ask the user to make sure to log out by clicking the Accept button or clicking the Back button to return to the previous web page. Logout Confirmation...

  • Page 50: Troubleshooting

    roubleshooting This section is intended to help the user solve the most common problems on the 24-Port Fast Ethernet + 2-Port Gigabit Ethernet Combo Web Smart Switch. Incorrect connections The switch port can auto-detect straight or crossover cable when the user links switch with other Ethernet device.

  • Page 51: Improper Network Topologies

    Improper Network Topologies It is important to make sure that users have a valid network topology. Common topology faults include excessive cable length and too many repeaters (hubs) between end nodes. In addition, the user should make sure that the network topology contains no data path loops.

  • Page 52: Technical Specification

    Technical Specification Technical Specification This section provides the specifications of 24-Port Fast Ethernet + 2-Port Gigabit This section provides the specifications of 24-Port Fast Ethernet + 2-Port Gigabit Ethernet Combo Web Smart Switch. Ethernet Combo Web Smart Switch. IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T Standard...
  • Page 53 Flash ROM 512Kbytes Power Supply 100 ~ 240V 50/60Hz Power Consumption 15.4Watts (Maximum) Operating Temp. C ~ 45 Operating Humidity 10% ~ 90% (Non-condensing) Storage Temp. C ~ 70 Dimensions 440mm x 120mm x 44mm (W x D x H) FCC Class A Safety CE/EN60950-1...

  • Page 54: Appendix

    Appendix Appendix 10 /100BASE-TX Pin outs 10 /100BASE-TX Pin outs With10/100BASE-TX cable, pins 1 and 2 are used for transmitting data, and pins With10/100BASE-TX cable, pins 1 and 2 are used for transmitting data, and pins 3 and 6 for receiving data. 3 and 6 for receiving data.

  • Page 55: 10/100/1000Base-Tx Pin Outs

    Straight-through cable schematic Cross over cable schematic 10/100/1000Base-TX Pin outs The following figure shows the 10/100/1000 Ethernet RJ-45 pin outs.

  • Page 56: 10/100/1000Base-Tx Cable Schematic

    10/100/1000Base-TX Cable Schematic Straight through cables schematic Cross over cables schematic...
