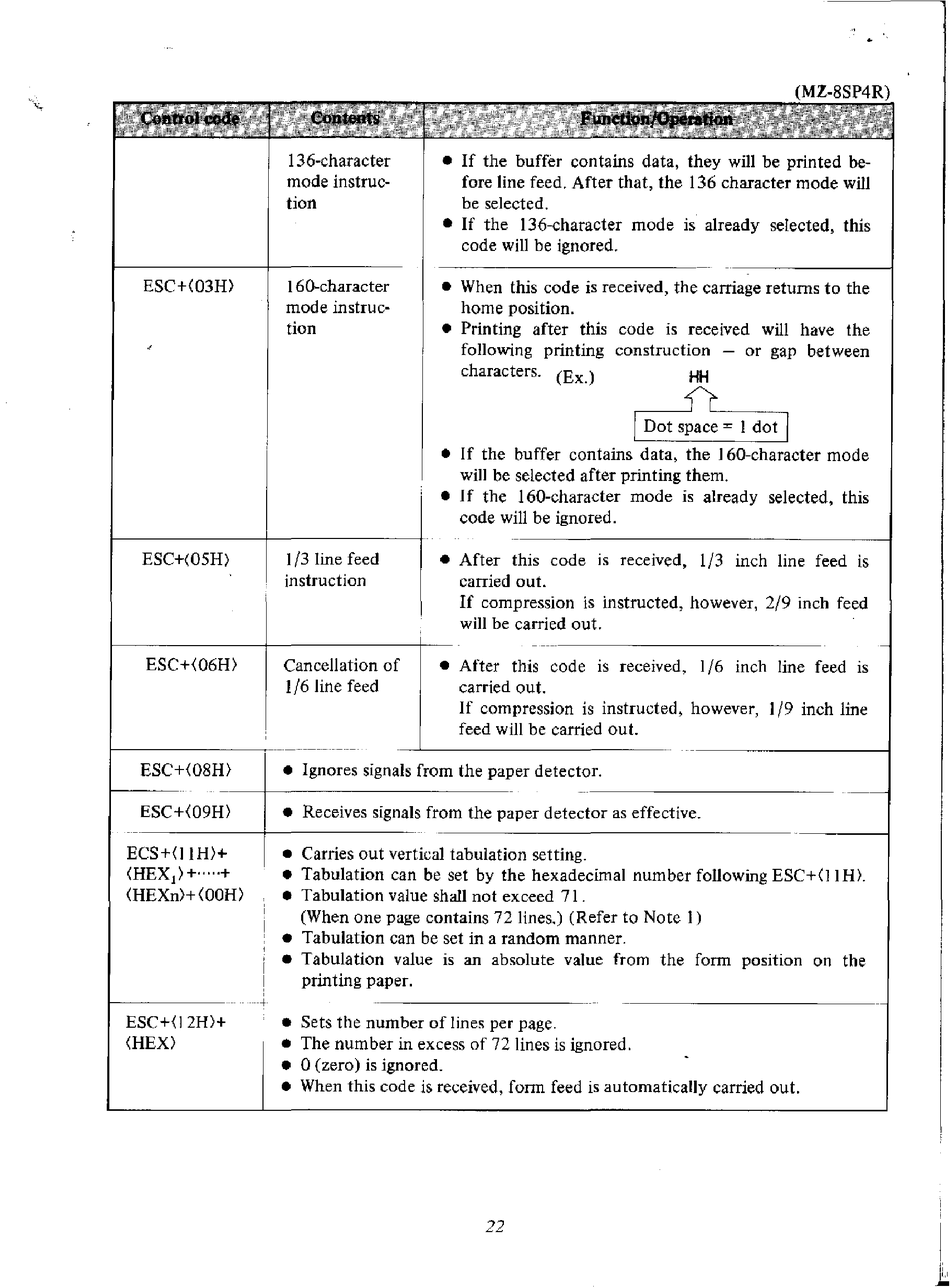

Sharp MZ-80P4 Instruction Manual page 25

Dot printer
Hide thumbs

Advertisement

ESC+(03H>
ESC+(05H>
ESC+<06H>
ESC+<OSH>
ESC+(09H>
ECS+(\ IH)+
<HEX,)+ ....
+
<HEXn)+ <OOH)
ESC+(\ 2H)+
<HEX)
I 36-character
mode instruc-
tion
160-character
mode instruc-
tion
1/3 line feed
instruction
Cancellation of
1/6 line feed
• If the buffer contains data, they will be printed be-
fore line feed. After that, the 136 character mode will
be selected.
• If the 136-character mode is already selected, this
code will be ignored.
• When this code is received, the carriage returns to the
home position.
• Printing after this code is received will have the
following printing construction - or gap between
characters. (Ex.)
HH
• If the buffer contains data, the 160-character mode
will be selected after printing them.
• If
the 160-character mode is already selected, this
code will be ignored.
• After this code is received, 1/3 inch line feed is
carried out.
If compression is instructed, however, 2/9 inch feed
will be carried out.
• After this code is received, 1/6 inch line feed is
carried out.
If compression is instructed, however, 1/9 inch line
feed will be carried out.
• Ignores signals from the paper detector.
• Receives signals from the paper detector as effective.
• Carries out vertical tabulation setting.
• Tabulation can be set by the hexadecimal number following ESC+(\ IH>.
• Tabulation value shall not exceed 71.
(When One page contains 72 lines.) (Refer to Note I)
• Tabulation can be set in a random manner.
• Tabulation value is an absolute value from the form position on the
printing paper.
• Sets the number of lines per page.
• The num ber in excess of 72 lines is ignored.
• 0 (zero) is ignored.
• When this code is received, form feed is automatically carried out.
22
