IBM-3455 PARTS CHECKLIST

MENU
HOLD DELETE
CID
1 2 ABC
4 GHI 5 JKL
PQRS TUV
7 8
TONE OPER
0
FLASH CHAN
NEW
CALL

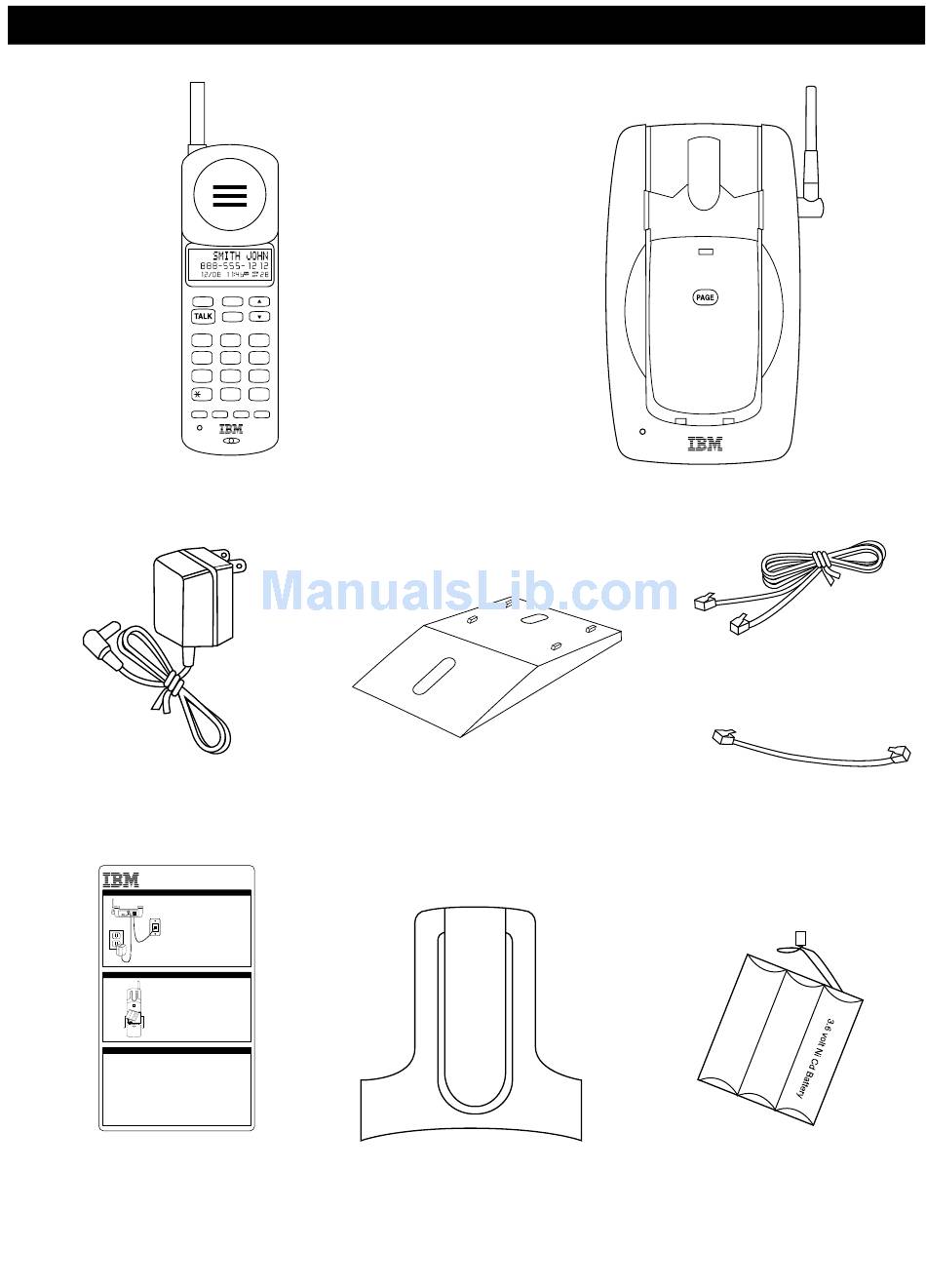

1. Handset
3. AC power adapter
QUICK START GUIDE
IBM-3455
SETTING UP THE BASE
1. Insert the pedestal into the slots on the
bottom of the base and slide up to lock in
place. The pedestal is reversible for desk
USE ONLY CLASS 2
POWER SUPPLY
P T ! 300mA TEL LINE or wall mounting.
2. Connect the telephone line cord to the
"LINE" jack and to a telephone outlet.
3. Connect the AC power adapter to the
9V DC jack and to an AC outlet.
4. Raise the antenna vertically.
INSTALL THE BATTERY
1. Slide open the battery door.
2. Insert the battery into the battery
compartment so that its connectors line
up with those on the handset.
3. Close the battery compartment door.
4. Place the handset on the base and allow
it to charge for 12 hours.
MAKING CALLS
1. Pick up the handset from the base.
2. Press P . The display will show "CONNECTING". Once the IBM-3455 has
acquired a line the display will show the channel that it is using (eg.
CHANNEL 50). Wait until you hear a dial tone.
3. Dial the number you wish to dial.
4 When you are finished talking, press the P key or place the unit back into
the base to end the call.
7. Quick start card
VOLUME
3 DEF
6 MNO
WXYZ
9
#
PAUSE
MEM
REDIAL
4. Reversible pedestal
8. Belt-Clip
CHARGE
6
2. Base
5. 7-foot line
cord for desk use
6. Short line cord for
wall installation
9. Ni-Cd battery pack
