Connect the phone

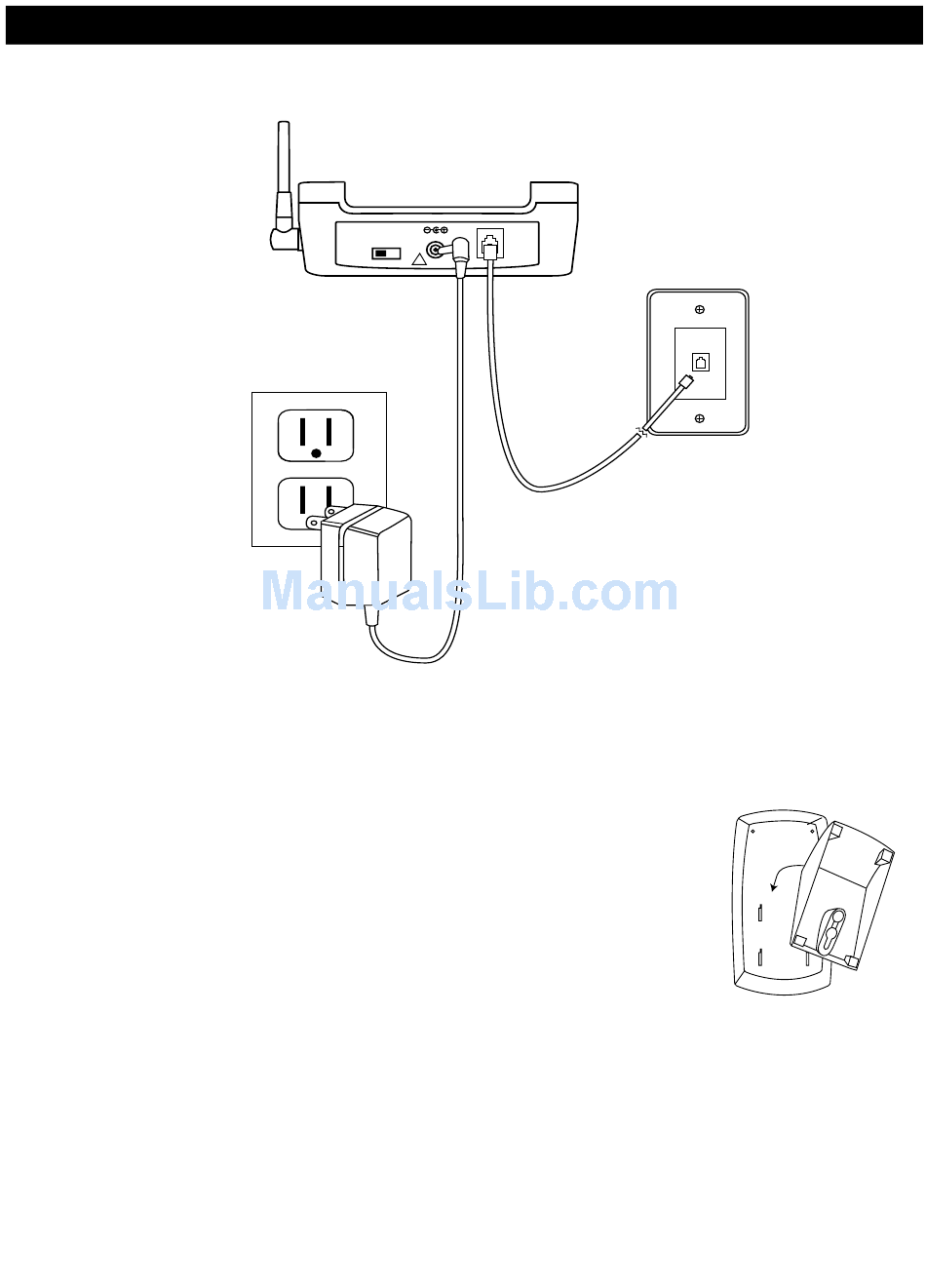

1. Connect the telephone line cord to the "LINE" jack and to a telephone outlet.
2. Connect the AC power adapter to the 9V DC jack and to an AC outlet. The
CHARGE LED on the base lights up.
3. Insert the pedestal into the slots on the bottom of the base
and slide up to lock in place. The pedestal is reversible for
desk or wall mounting.
4. Raise the antenna vertically.
Note: Use only the supplied AC power adapter. Do not use any other AC power
adapter. Connect the AC power adapter to a continuous power supply.
Place the phone close to the AC outlet so that you can plug in the AC
power adapter easily.
Tip: If your telephone outlet is not modular, contact your telephone company
for assistance.

CONNECTING THE BASE

USE ONLY CLASS 2
POWER SUPPLY
!
T P 300mA TEL LINE
13
BASE
PEDESTAL
