2
PANEL DESCRIPTION
!0 MULTI-CONNECTOR
Connect an optonal equpment.
!1 BUSY/TRANSMIT INDICATOR
➥ Lghts green whle recevng a sgnal, or when the
squelch s open.
➥ Lghts red whle transmttng.
!2 VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjusts the audo
level.
5
Connector cover
NOTE: Attach the connec-
tor cover when the optional
equipment is not used.
See p. 3 for details.

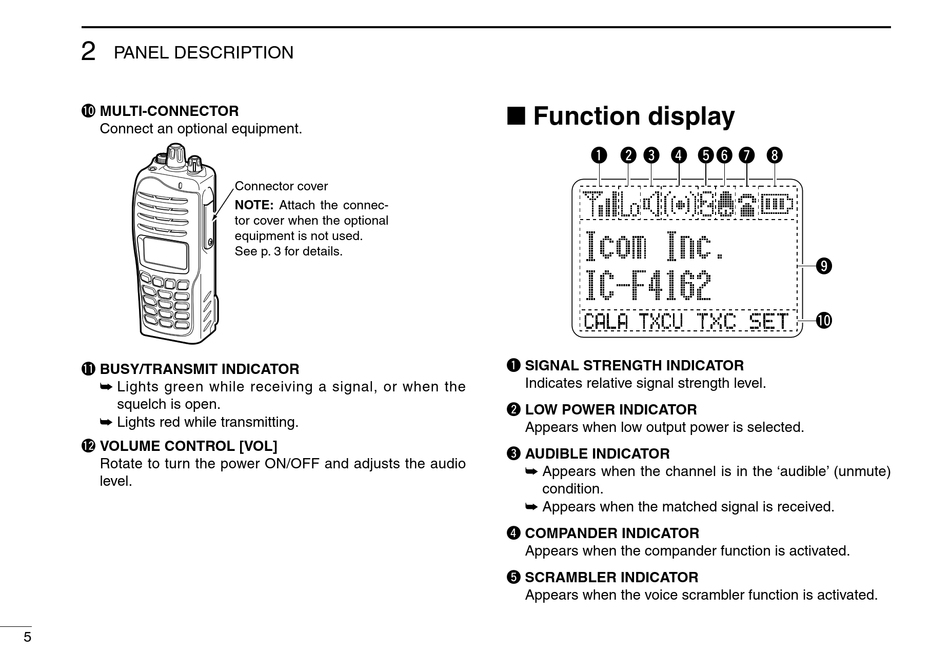

■ Function display

q w e r
CALA TXCU TXC
q SIGNAL STRENGTH INDICATOR
Indcates relatve sgnal strength level.
w LOW POWER INDICATOR
Appears when low output power s selected.
e AUDIBLE INDICATOR
➥ Appears when the channel s n the 'audble' (unmute)
condton.
➥ Appears when the matched sgnal s receved.
r COMPANDER INDICATOR
Appears when the compander functon s actvated.
t SCRAMBLER INDICATOR
Appears when the voce scrambler functon s actvated.
t y u i
o
!0
SET
