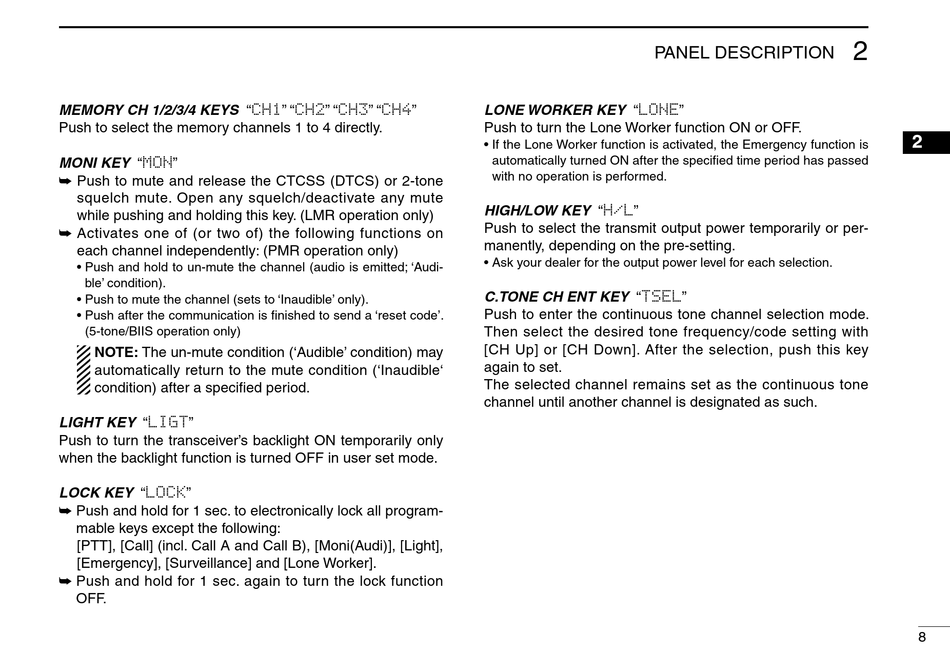

MEMORY CH 1/2/3/4 KEYS "CH1" "CH2" "CH3" "CH4"
Push to select the memory channels 1 to 4 drectly.
MONI KEY "MON"
➥ Push to mute and release the CTCSS (DTCS) or 2-tone
squelch mute. Open any squelch/deactvate any mute
whle pushng and holdng ths key. (LMR operaton only)
➥ Actvates one of (or two of) the followng functons on
each channel ndependently: (PMR operaton only)
• Push and hold to un-mute the channel (audo s emtted; 'Aud-
ble' condton).
• Push to mute the channel (sets to 'Inaudble' only).
• Push after the communcaton s finshed to send a 'reset code'.
(5-tone/BIIS operaton only)
NOTE: The un-mute condton ('Audble' condton) may
automatcally return to the mute condton ('Inaudble'
condton) after a specfied perod.
LIGHT KEY "LIGT"
Push to turn the transcever's backlght ON temporarly only
when the backlght functon s turned OFF n user set mode.
LOCK KEY "LOCK"
➥ Push and hold for 1 sec. to electroncally lock all program-
mable keys except the followng:
[PTT], [Call] (ncl. Call A and Call B), [Mon(Aud)], [Lght],
[Emergency], [Survellance] and [Lone Worker].
➥ Push and hold for 1 sec. agan to turn the lock functon
OFF.
PANEL DESCRIPTION
LONE WORKER KEY "LONE"
Push to turn the Lone Worker functon ON or OFF.
• If the Lone Worker functon s actvated, the Emergency functon s
automatcally turned ON after the specfied tme perod has passed
wth no operaton s performed.
HIGH/LOW KEY "H/L"
Push to select the transmt output power temporarly or per-
manently, dependng on the pre-settng.
• Ask your dealer for the output power level for each selecton.
C.TONE CH ENT KEY "TSEL"
Push to enter the contnuous tone channel selecton mode.
Then select the desred tone frequency/code settng wth
[CH Up] or [CH Down]. After the selecton, push ths key
agan to set.
The selected channel remans set as the contnuous tone
channel untl another channel s desgnated as such.
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
8
