y BELL INDICATOR
Appears/blnks when the matched sgnal s receved, ac-
cordng to the pre-programmng.
u CALL CODE MEMORY INDICATOR
Appears when the call code memory s selected.
i BATTERY INDICATOR
Appears or blnks when the battery power decreases to a
specfied level.
Indication
Battery level Full
blinks when the battery is over charged.
blinks when the battery is exhausted.
o ALPHANUMERIC DISPLAY
➥ Dsplays an operatng channel number, channel name,
Set mode contents, DTMF code, etc.
➥ The ndcaton mode can be selected from 1 lne or 2
lnes. Ask your dealer for detals.
• In ths nstructon manual, the LCD llustraton s descrbed
usng the 2 lnes ndcaton mode.
!0 KEY INDICATOR
Indcate the programmed functon of the front panel keys
([P0], [P1], [P2] and [P3]).
Charging
Middle No battery
required

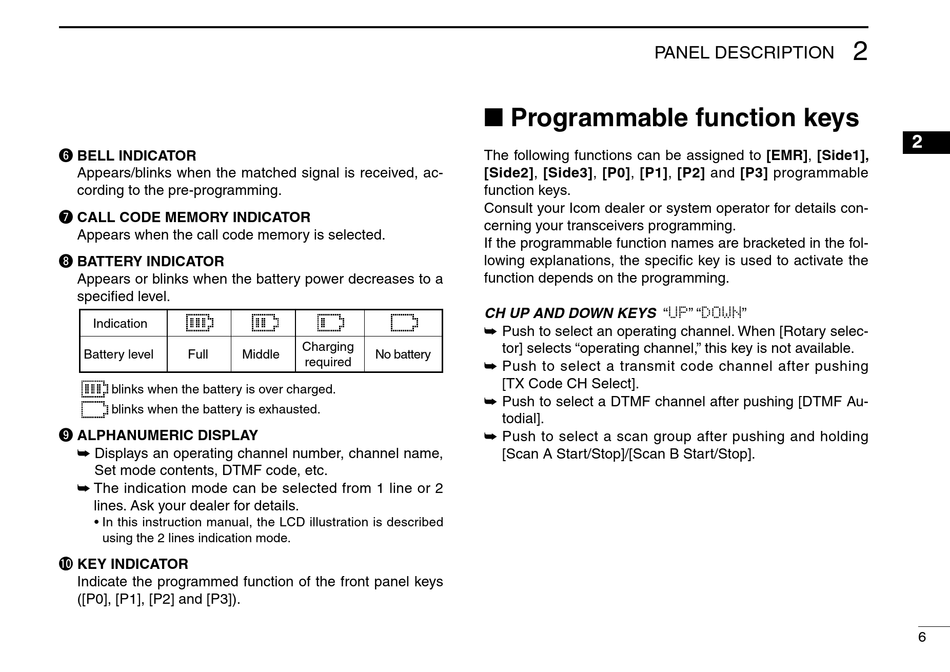

PANEL DESCRIPTION

■ Programmable function keys

The followng functons can be assgned to [EMR], [Side1],
[Side2], [Side3], [P0], [P1], [P2] and [P3] programmable
functon keys.
Consult your Icom dealer or system operator for detals con-
cernng your transcevers programmng.
If the programmable functon names are bracketed n the fol-
lowng explanatons, the specfic key s used to actvate the
functon depends on the programmng.
CH UP AND DOWN KEYS "UP" "DOWN"
➥ Push to select an operatng channel. When [Rotary selec-
tor] selects "operatng channel," ths key s not avalable.
➥ Push to select a transmt code channel after pushng
[TX Code CH Select].
➥ Push to select a DTMF channel after pushng [DTMF Au-
todal].
➥ Push to select a scan group after pushng and holdng
[Scan A Start/Stop]/[Scan B Start/Stop].
