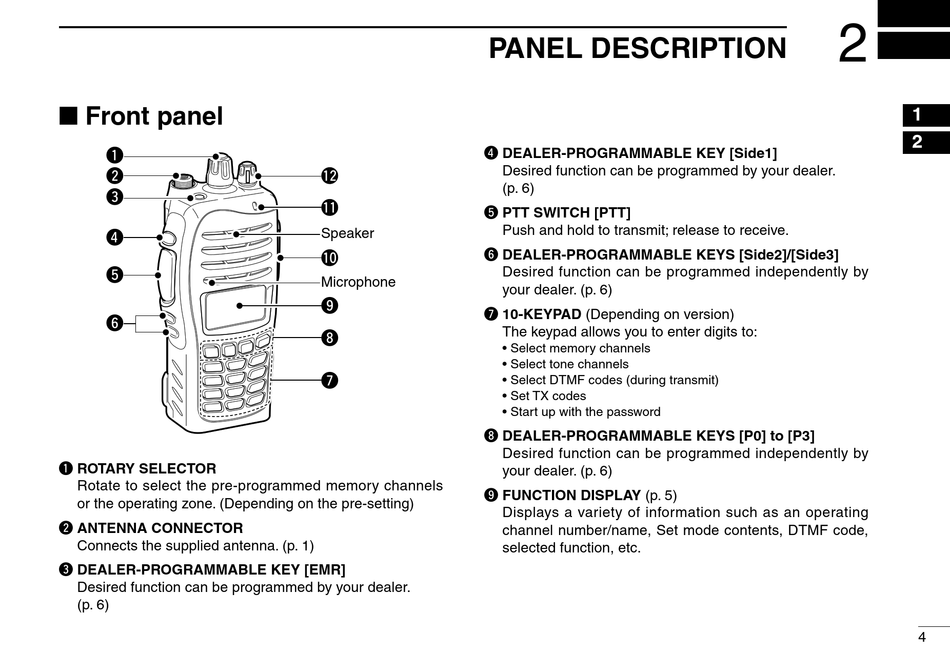

■ Front panel

q
w
e
r
t
y
q ROTARY SELECTOR
Rotate to select the pre-programmed memory channels
or the operatng zone. (Dependng on the pre-settng)
w ANTENNA CONNECTOR
Connects the suppled antenna. (p. 1)
e DEALER-PROGRAMMABLE KEY [EMR]
Desred functon can be programmed by your dealer.
(p. 6)

PANEL DESCRIPTION

r DEALER-PROGRAMMABLE KEY [Side1]
!2
!1
t PTT SWITCH [PTT]
Speaker
y DEALER-PROGRAMMABLE KEYS [Side2]/[Side3]
!0
Microphone
o
u 10-KEYPAD (Dependng on verson)
i
u
i DEALER-PROGRAMMABLE KEYS [P0] to [P3]
o FUNCTION DISPLAY (p. 5)
Desred functon can be programmed by your dealer.
(p. 6)
Push and hold to transmt; release to receve.
Desred functon can be programmed ndependently by
your dealer. (p. 6)
The keypad allows you to enter dgts to:
• Select memory channels
• Select tone channels
• Select DTMF codes (durng transmt)
• Set TX codes
• Start up wth the password
Desred functon can be programmed ndependently by
your dealer. (p. 6)
Dsplays a varety of nformaton such as an operatng
channel number/name, Set mode contents, DTMF code,
selected functon, etc.
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
4
