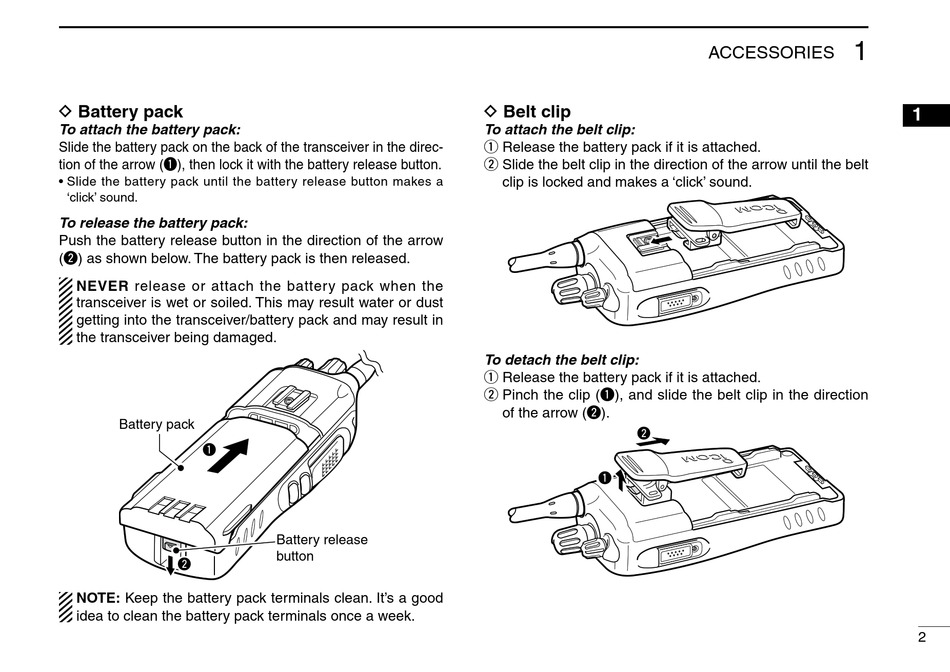

D Battery Pack; Belt Clip - Icom IC-F3162T Instruction Manual

D Battery pack

To attach the battery pack:
Slde the battery pack on the back of the transcever n the drec-
ton of the arrow (q), then lock t wth the battery release button.
• Slde the battery pack untl the battery release button makes a
'clck' sound.
To release the battery pack:
Push the battery release button n the drecton of the arrow
(w) as shown below. The battery pack s then released.
NEVER release or attach the battery pack when the
transcever s wet or soled. Ths may result water or dust
gettng nto the transcever/battery pack and may result n
the transcever beng damaged.
Battery pack
q
w
NOTE: Keep the battery pack termnals clean. It's a good
dea to clean the battery pack termnals once a week.
Battery release
button
D Belt clip
To attach the belt clip:
q Release the battery pack f t s attached.
w Slde the belt clp n the drecton of the arrow untl the belt
clp s locked and makes a 'clck' sound.
To detach the belt clip:
q Release the battery pack f t s attached.
w Pnch the clp (q), and slde the belt clp n the drecton
of the arrow (w).
w
q
1
ACCESSORIES
