Power Consumption Measurement - Nexcom EBC340 User Manual

 FCC Class A
 100% RoHS competed
Environment
 Operating temperatures: 0°C to 60°C
 Storage temperatures:-20˚C to 85˚C

Relative Humidity:
Operating 10%~90%, non-condensing

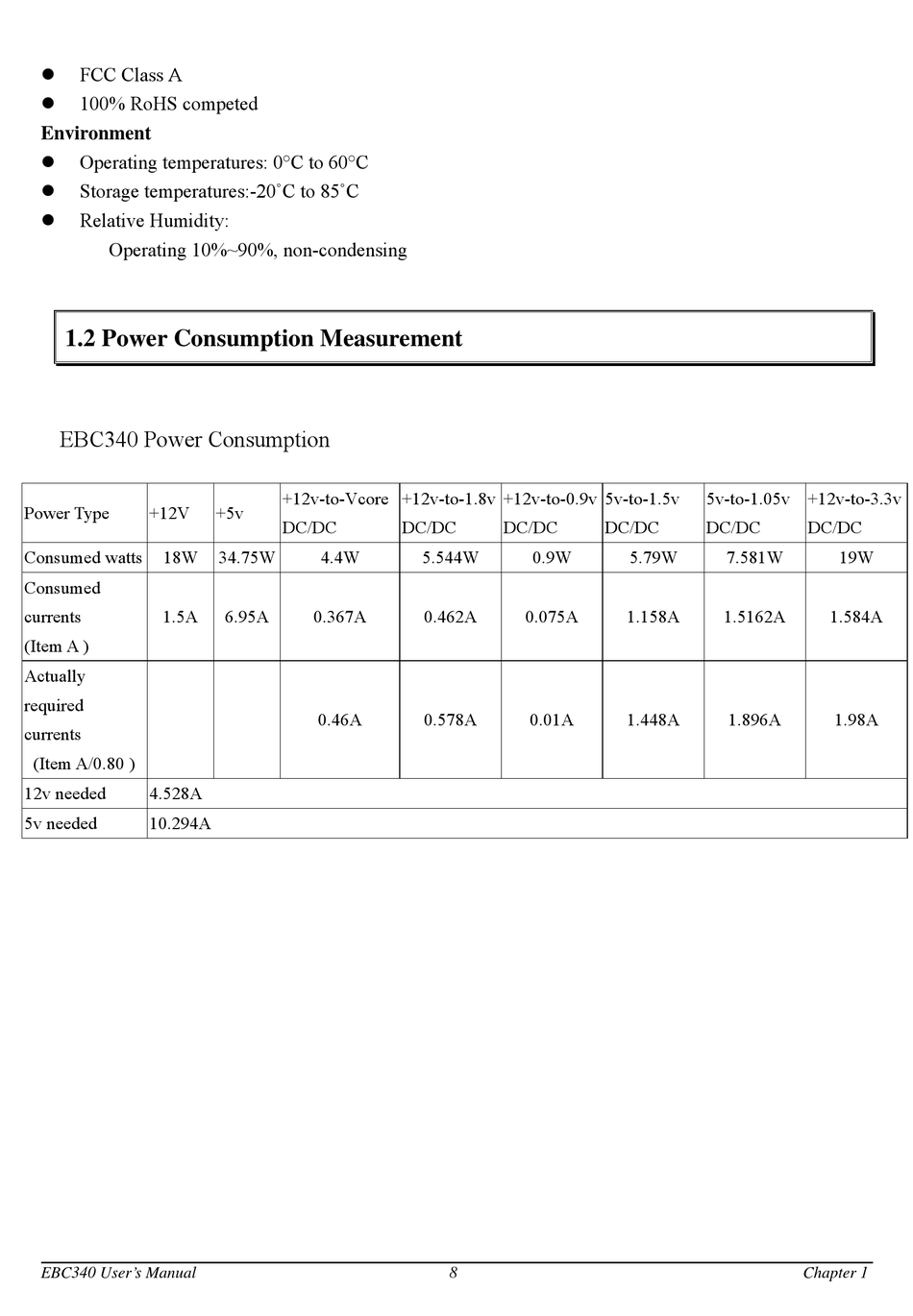

1.2 Power Consumption Measurement

EBC340 Power Consumption
Power Type +12V
Consumed watts 18W
Consumed
currents 1.5A
(Item A )
Actually
required
currents
(Item A/0.80 )
12v needed 4.528A
5v needed 10.294A
EBC340 User's Manual
+12v-to-Vcore
+5v
DC/DC
34.75W 4.4W
6.95A 0.367A
0.46A
+12v-to-1.8v +12v-to-0.9v
DC/DC DC/DC
5.544W 0.9W
0.462A 0.075A
0.578A 0.01A
8
5v-to-1.5v 5v-to-1.05v
DC/DC DC/DC
5.79W 7.581W
1.158A 1.5162A
1.448A 1.896A
+12v-to-3.3v
DC/DC
19W
1.584A
1.98A
Chapter 1
