11 BUSY
12 PE
13 SLCT

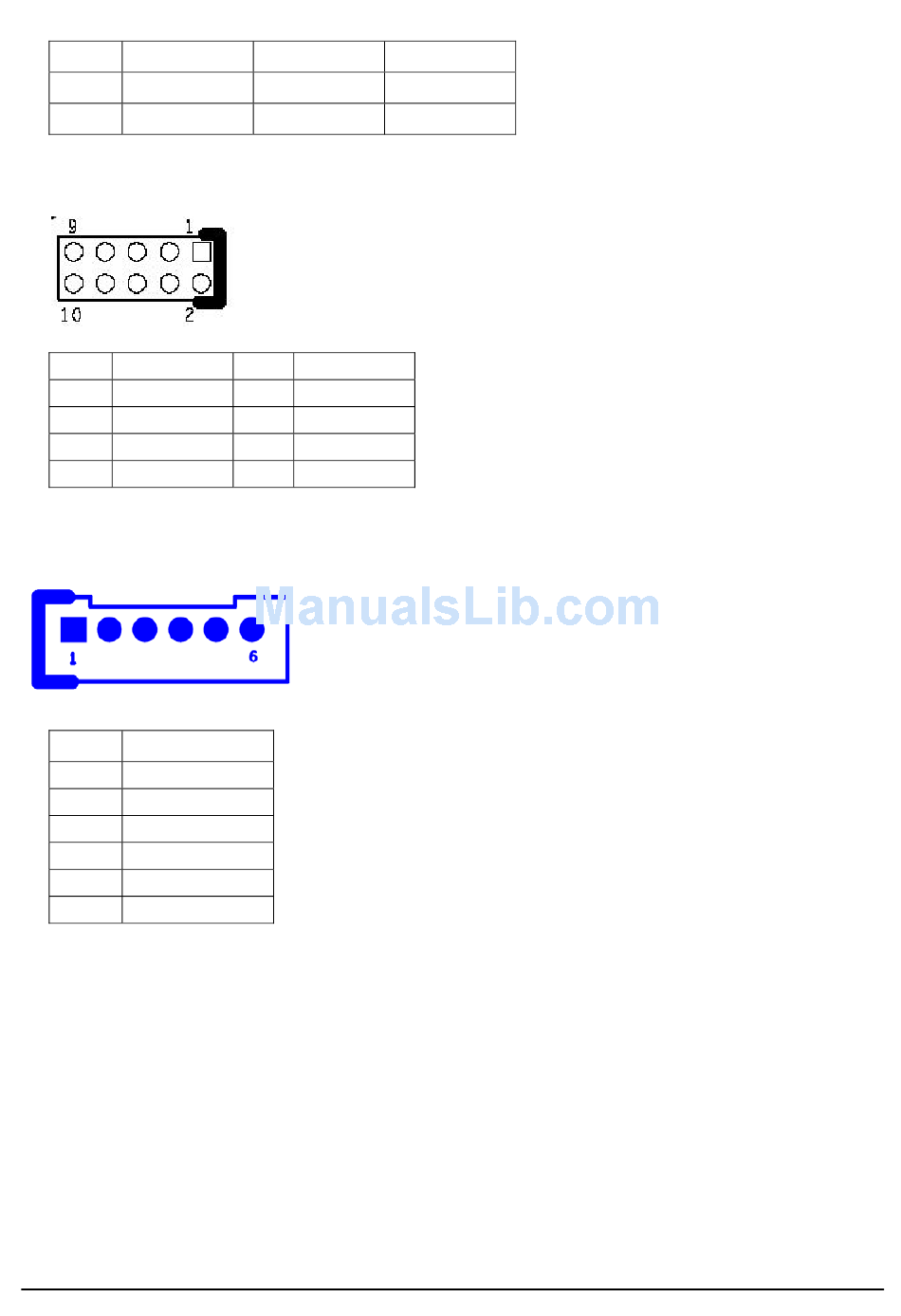

◎GPIO connector
2 x 5 2.0mm Pin header
Pin Definition: J5
1 VCC5
3 SIO_GPI54
5 SIO_GPI55
7 SIO_GPI56
9 SIO_GPI57
◎ USB Jst Connector
JST 6 Pins 2.0 Pitch
Pin Definition: J6
Pin NO. Description
1 P5V_USB_P23
2 USB2-
3 USB2+
4 USB3-
5 USB3+
6 GND
EBC 340 User's Manual
24 GND
25 GND
26 NC
2 GND
4 SIO_GPO50
6 SIO_GPO51
8 SIO_GPO52
10 SIO_GPO53
