Nexcom EBC340 User Manual page 16

Pin NO. Description
1 RESET#
2 GND

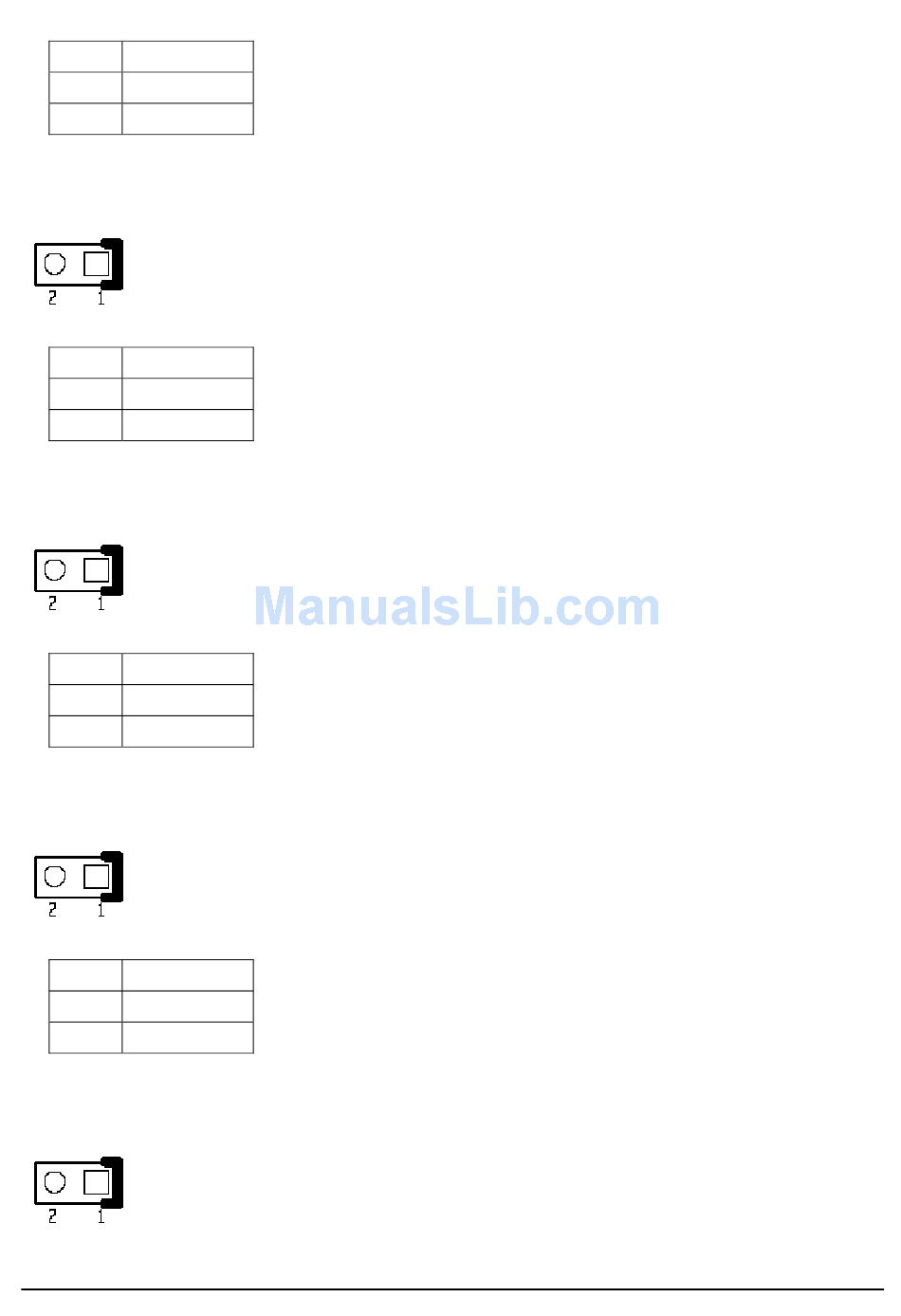

◎ HDD Active LED:
Pin header 1x2 2.0 Pitch.
Pin Definition: JP3
Pin NO. Description
1 VCC5
2 HD_LED#
◎Power LED:
Pin header 1x2 2.0 Pitch.
Pin Definition: JP4
Pin NO. Description
1 VCC5
2 GND
◎ SMBus:
Pin header 1x2 2.0 Pitch.
Pin Definition: JP5
Pin NO. Description
1 SMB_DATA
2 SMB_CLK
◎ LAN Active LED
Pin header 1x2 2.0 Pitch.
EBC 340 User's Manual 16
