1 NC
2 GND
3 PS_ON#

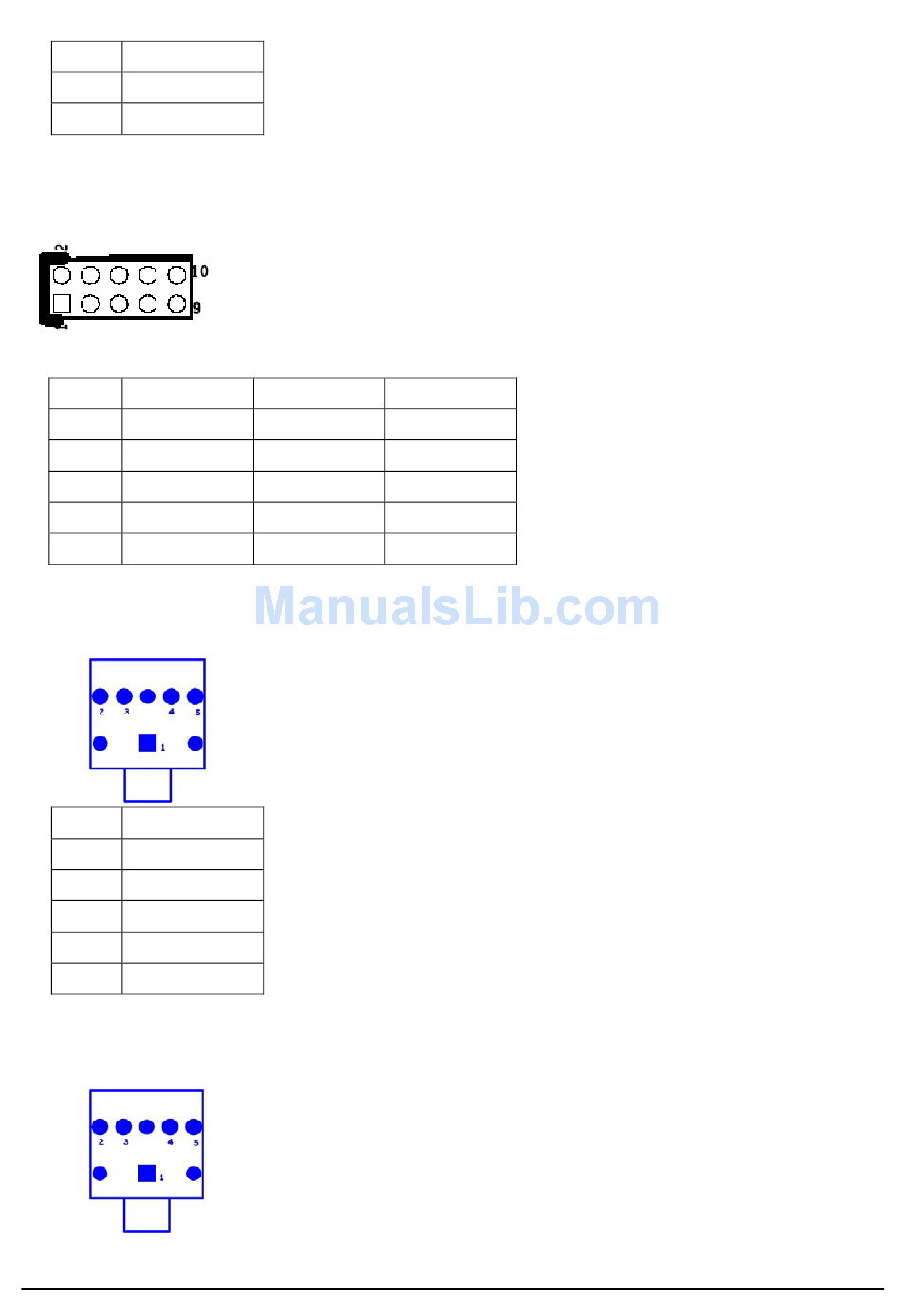

◎USB DOM Connector:
Pin Headr 2x5 2.54mm Pitch
Pin Definition: J7
Pin Signal
1 P5V_USB_P45
3 USB4-
5 USB4+
7 GND
9 NC
◎ Line-Out Connector:
CN8 Phone Jack
Pin NO. ON
1 GND
2 LOUT_R
3 NC
4 NC
5 LOUT_L
◎ Mic-In Connector:
CN9 Phone Jack
EBC 340 User's Manual
Pin Signal
2 P5V_USB_P45
4 USB5-
6 USB5+
8 GND
10 uDOC_OC#
