Nexcom EBC340 User Manual page 15

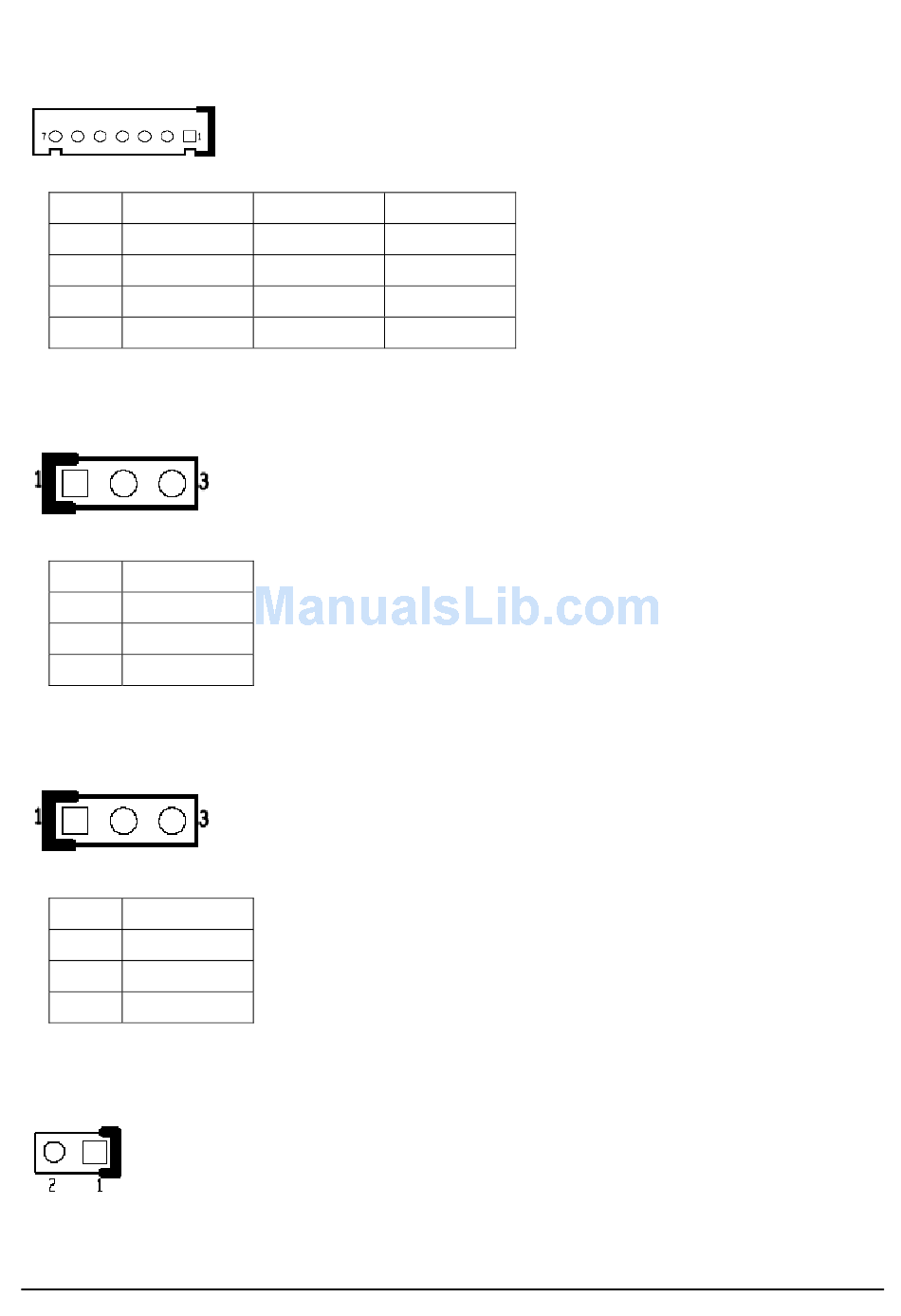

◎ CCFL CON
J4 (JST 7 Pins 2.54 Pitch)
Pin Definition: J4
Pin NO. Description
1 +5V
3 +12V
5 GND
7 Backlight Enable
◎Panel Power selection:
Pin header 1x3 2.54 Pitch.
Pin Definition: JP8
Pin NO. Description
1 VCC5
2 Panel power
3 VCC3
◎ RTC Clear:
Pin header 1x3 2.54 Pitch.
Pin Definition: JP2
Pin NO. Description
1 Battery 3.3V
2 RTCRST#
3 GND
◎ Reset Button:
Pin header 1x2 2.0 Pitch.
Pin Definition: JP1
EBC 340 User's Manual
Pin NO. Description
2 +12V
4 Brightness Ctrl
6 GND
15
