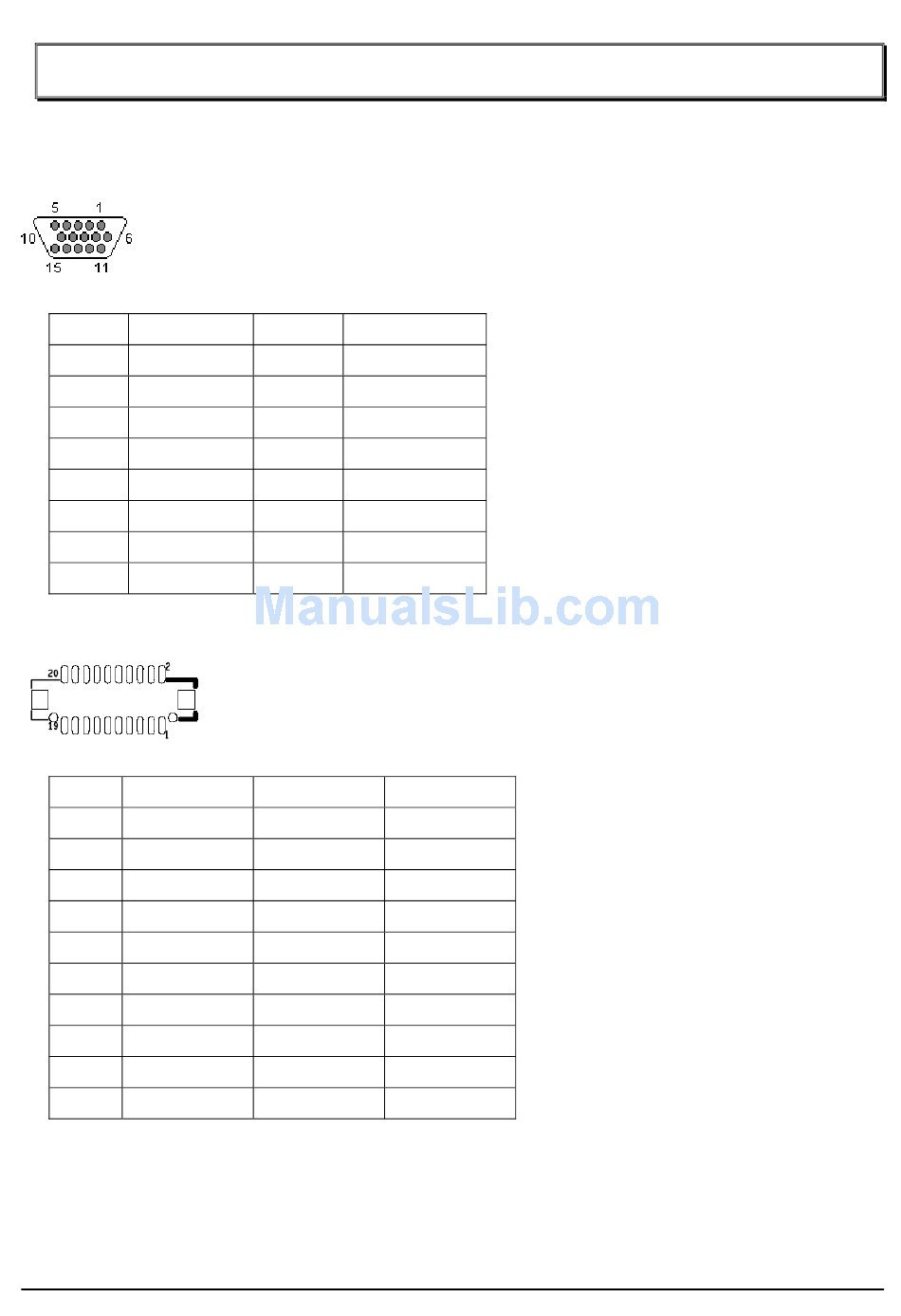

2.5 Functions of Jumpers and Connectors
◎ VGA Port
VGA1 (D-Sub 15 pins)
Pin Definition: VGA1
Pin NO. Description
1 RED_VGA
2 GREEN_VGA
3 BLUE_VGA
4 NC
5 GND
6 GND
7 GND
8 GND
◎ LVDS CON
CN6 ( 2 X10 2.0 Pitch
Pin Definition: CN6
Pin NO. Description
1 DDCCLK
2 DDC_DATA
3 VDD
4 LB_DATAP0
5 PULL LOW
6 LB_DATAN0
7 PULL LOW
8 VDD
9 GND
10 LB_DATAP1
EBC 340 User's Manual
Pin NO.
9 VGA_VCC
10 GND
11 NC
12 VGA_DDC_DATA
13 G_HSYNC
14 G_VSYNC
15 VGA_DDC_CLK
)
Pin NO.
11
12
13
14
15
16
17
18
19
20
Description
Description
LB_CLK_P
LB_DATAN1
LB_CLK_N
GND
GND
VCC12_INV
LB_DATAP2
VCC12_INV
LB_DATAN2
GND
