Replacing the Redundant Power Supply Module

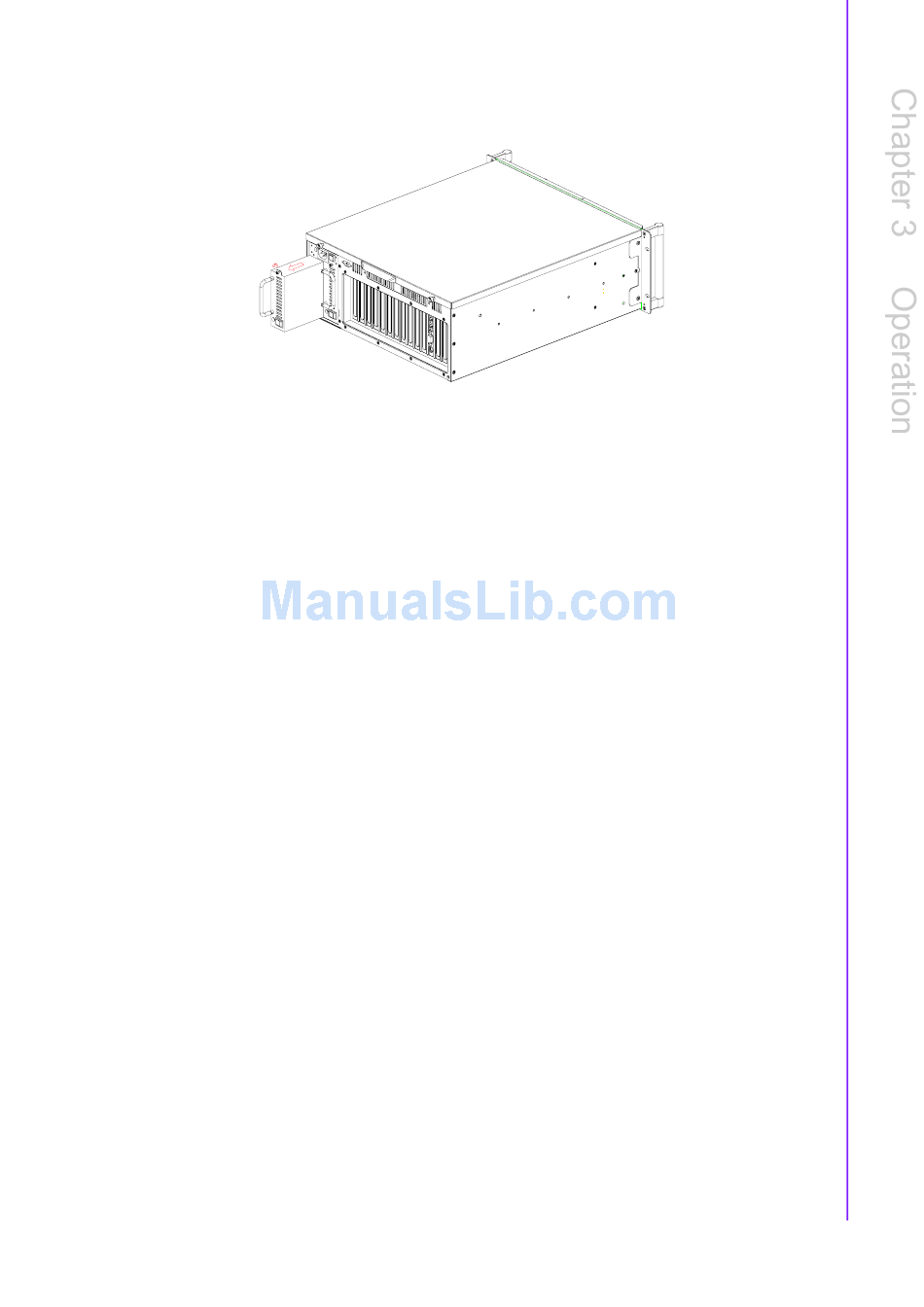

Figure 3.7 Replacing the redundant power supply module

1. Turn off the power switch of the failed power supply module.
2. Un-plug the power cord from the failed module.
3. Loosen the screw on the failed module and then grab the handle to gently pull it
out.
4. Make sure that the new module is the same rating as the damaged one.
5. Slide the power supply module inward until it locks into the right position.
6. Secure the screw and replace the handle. Then plug the power cord and turn on
the power switch on the new module.
