ACK-A001E
Specifications
Disk Drive Bay 2.5" (internal)
USB
COM
Front I/O Openings RJ-45
Audio
VGA
COM
USB
Rear I/O Openings Audio
Antenna
Circular cutouts
LED Indicators
Miscellaneous
Control
Temperature
Environment
Humidity
Vibration (5 ~ 500 Hz)
Dimensions (W x H x D)
Physical Characteristics
Weight

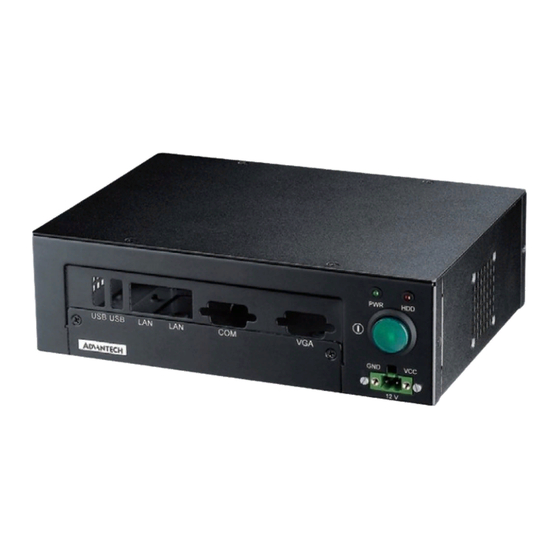

Front View
2 USB 1 COM
2 LAN
3.5" Single Board Computers
All product specifications are subject to change without notice
RoHS
COMPLIANT
2002/95/EC
w/ PCM-9362
1
2
1 (1 x RS-232)
2
3 (Mic-in, Line-out, Line-in)
1
3 (2 x RS-232,1 RS-232/422/485)
4
1(Mic-in, Line-out, Line-in)
1
1(Reserved for LVDS, PS/2 & LPT cable)
Power, HDD
Power switch (Push-on/off type)
Operating
0 ~ 40° C (32 ~ 104° F)
w/ 0.7m/s airflow
w/o system Fan
40° C @ 95% RH Non-Condensing
1 Grms (w/o 2.5" HDD)
System dimension:200 x 60 x 145 mm
System dimension with mounting bracket:230 x 65 x 145 mm
0.95 kg (2.09 lb)
Rear View
HDD
LED
Power LED
Power
switch
1 VGA 12V DC
Power input
Compact Embedded 3.5" SBC Chassis
Features
ƒ 3.5" SBC chassis supports front & rear I/O interfaces
ƒ Fanless system with wall-mount & desk mount support, Mounting flange is
removable
ƒ Bottom door for access to devices on the solder side of motherboard
ƒ Flexible cutouts I/O in the rear bezel up to 4 x COM , 4 x USB, audio, and
LPT/PS2/LVDS
ƒ Easy assembling & maintenance of 2.5" hard disk
ƒ Supports dedicated Advantech 3.5" SBC: PCM-9362/PCM-9363
w/ PCM-9363
1
2
1 (1 x RS-232)
2
3 (Mic-in, Line-out, Line-in)
1
2 (1 x RS-232,1 RS-232/422/485)
4
1(Mic-in, Line-out, Line-in)
1
1(Reserved for LVDS, PS/2 & LPT cable)
Non-operating
-20 ~ 60° C (-4 ~ 140° F)
60° C @ 95% RH non-condensing
N/A
Circular cutout for
4 USB LVDS, PS/2 & LPT cable Audio Antenna
4 COM
Last updated : 10-May-2012
