2-3.2 To Remove a DIMM:

Press down the holding latches on both sides of socket and the module
will be released from the DIMM socket.

2-3.3 Indicator D7 for DIMM Socket Power On:

An indicator D7 is designed on board. Whenever system is started or
is in STR status (Suspend to RAM), all the DIMM sockets on board will
also get powered on with the set voltage, resulting in D7 lighting up.
This indicator D7 is to warn users that, whenever DIMM socket is
powered, no memory module should be removed from or added into it.
PS/2 Mouse
(on top)
PS/2 K/B
(underside)
USB0
(on top)
USB1 (underside)
FAN2
1
1
3
ATX+12V
1
Main Power
DIP
ON
Switch S3
1 2 3 4 5
CD_IN1
1
RT1
FAN3 1
1
CD_IN2
Video-In
AC'97
Codec
WOL1
1

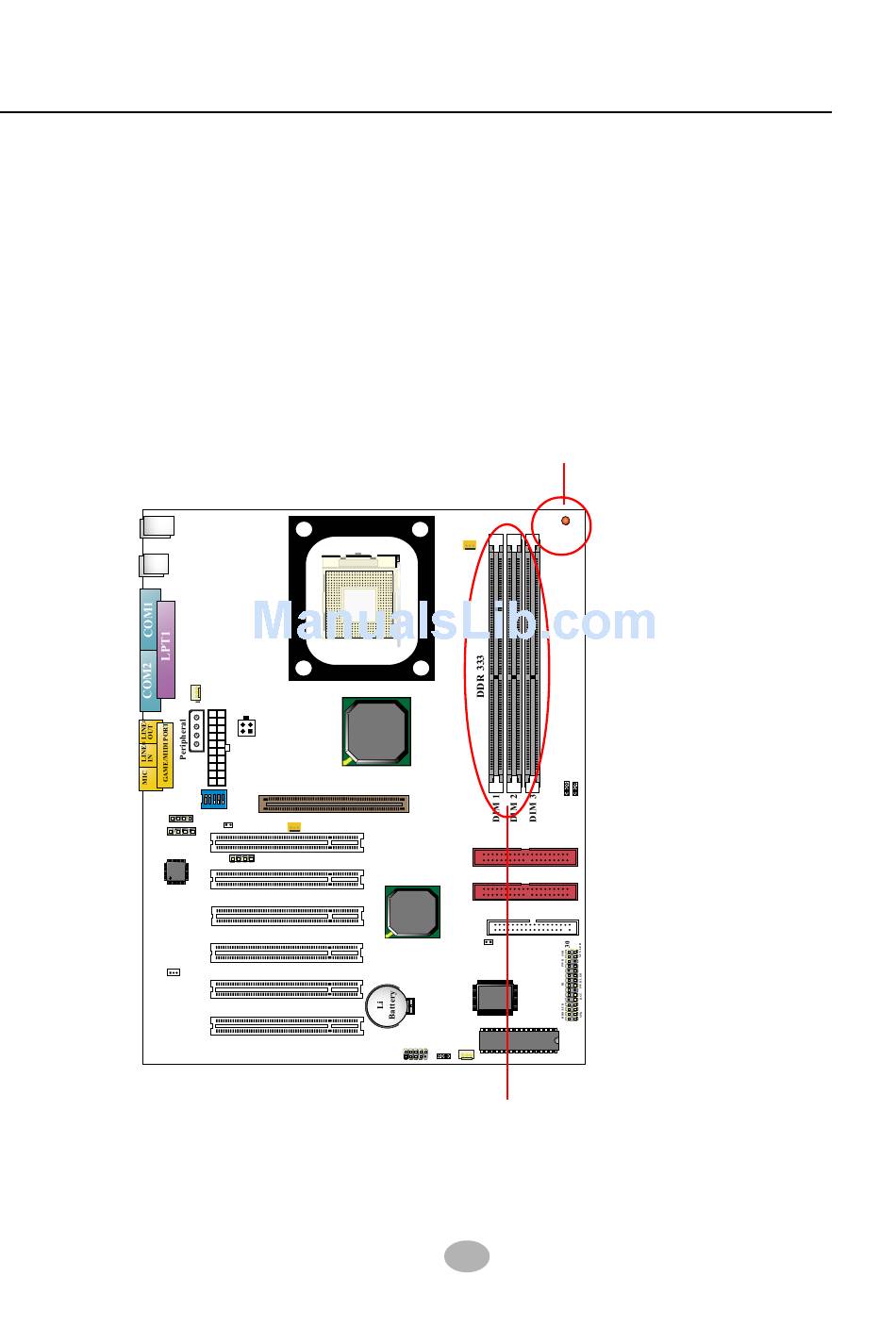

D7 DIMM Power On
