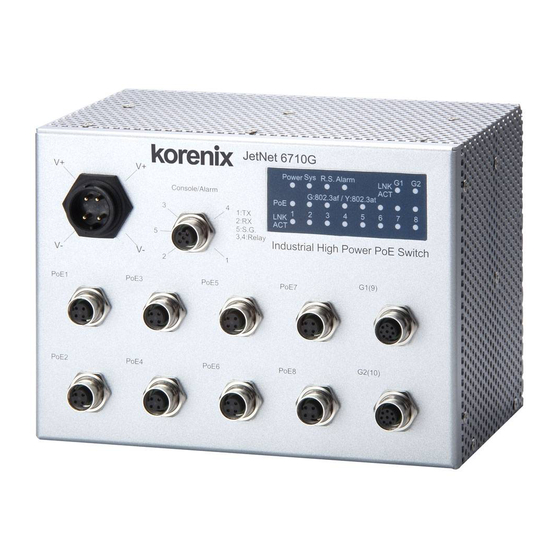

Korenix JetNet 6710G User Manual

Industrial 8-port poe + 2 gigabit tx managed ethernet switch
Hide thumbs Also See for JetNet 6710G:
Table of Contents

Advertisement

Quick Links

Download this manual
JetNet 6710G/ JetNet 6810G User Manual
Korenix JetNet 6710G /JetNet 6810G Series
Industrial 8-Port PoE + 2 Gigabit TX
Managed Ethernet Switch

User Manual

Ver. 1.1, 17-Feb-2014
Firmware v1.1/v1.1b (HVDC)
www.korenix.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JetNet 6710G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Korenix JetNet 6710G

Summary of Contents for Korenix JetNet 6710G

  • Page 1: User Manual

    JetNet 6710G/ JetNet 6810G User Manual Korenix JetNet 6710G /JetNet 6810G Series Industrial 8-Port PoE + 2 Gigabit TX Managed Ethernet Switch User Manual Ver. 1.1, 17-Feb-2014 Firmware v1.1/v1.1b (HVDC) www.korenix.com...

  • Page 2: Ethernet Switch

    JetNet 6710G/ JetNet 6810G User Manual Korenix JetNet 6710G / JetNet 6810G Series Industrial 8 Port PoE + 2 Gigabit TX Managed Ethernet Switch User’s Manual Copyright Notice Copyright  2012 Korenix Technology Co., Ltd. All rights reserved. Reproduction in any form or by any means without permission is prohibited.
  • Page 3 Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: Table Of Contents

    Save to Flash ........................155 4.16 Logout..........................156 Appendix ........................157 JetNet 6710G Product Specifications ................157 JetNet 6810G Product Specifications ................162 Korenix Private MIB for JetNet 6710G and JetNet 6810G ..........166 Revision History ........................ 169 About Korenix ........................170...
  • Page 5 JetNet 6710G/ JetNet 6810G User Manual...

  • Page 6: Introduction

    1.3 Package Checklist Overview The eight 10/100 TX PoE injector ports can deliver up to 200W (JetNet 6710G) and 120W (JetNet 6810G) power per unit and 15.4W /30W per port by IEEE 802.3af / IEEE 802.3at standards to fulfill local increasing PoE demands. The...
  • Page 7 Rugged RJ45 /m12 Connectors Against Vibration and Shock In most occasions, PD devices installed in industrial environments are being subjected to vibration, shock, dust and other environmental threats. Korenix has designed JetNet 6710G / JetNet 6810G series with 8 rugged RJ45 or m12...
  • Page 8 Rapid Dual Homing (RDH ) Technology Rapid Dual Homing is also the important feature of Korenix new generation Ring technology. It supports ring coupling with other vendors and with easy configuration and multiple redundancies, the failover time is much faster and...
  • Page 9 JetNet 6710G/ JetNet 6810G User Manual groups. In each group, uplinks are sorted into primary, secondary and standbys by their link speed. The uplink with the highest speed is more likely to be active path for data transmission. Link aggregation is also integrated into .

  • Page 10: Major Features

    NMS to help users easily maintain the network system. Besides the SNMP and LLDP protocols,JetNet 6810G series efficiently works with the Korenix patented JetView Pro i2NMS, which in addition to the auto-topology discovery, also delivers MSR group management, group IP assignment, firmware upgrade, configuration file...

  • Page 11: Package List

    JetNet 6710G/ JetNet 6810G User Manual total power budge (JetNet 6710G-HVDC series), 100W Power at 70°  Built-in Isolated 24V to 57V DC PoE Booster for vehicle use ( JetNet 6810G series)  Built-in 77V ~137.5Vdc input isolated power bucker with DC 48V output for vehicle IP surveillance use (JetNet 6710G-HVDC series) ...
  • Page 12 JetNet 6710G/ JetNet 6810G User Manual Rugged M12 D-coded 4-pole Field Assemble able Connecter Rugged M12 A-coded 8-pole Field Assemble able Connector Rugged RJ45 Field Assemble able Connecter Rugged IP 67 DC power connector (4-pin) Rugged M12 A-coded 4-pin Field Assembly able Power Connector 2 Wall-Mount kits &...

  • Page 13: Hardware Installation

    JetNet 6710G/ JetNet 6810G User Manual 2 Hardware Installation This chapter includes hardware introduction, installation and configuration information. Following topics are covered in this chapter: 2.1 Hardware Introduction Dimension Panel Layout Bottom View 2.2 Wiring Power Inputs 2.3 RS-232 console and relay output 2.4 Wiring Earth ground...

  • Page 14: Hardware Introduction

    JetNet 6710G/ JetNet 6810G User Manual Hardware Introduction Dimension – JetNet 6810G/JetNet 6710G-HVDC series W/o mounting kit: 198(W) x 145.2 (H)x 120(D) W/ mounting kit: 230.6(W) x 145.2 (H)x 120(D) JetNet 6810G-m12 JetNet 6810G-RJ...
  • Page 15 JetNet 6710G/ JetNet 6810G User Manual JetNet 6710G-m12 HVDC JetNet 6710G-RJ HVDC Dimension – JetNet 6710G series JetNet 6710G-m12/JetNet 6710G-RJ: 198(W) x145.2 (H)x75.7(D) w/o mounting kit JetNet 6710G-m12/JetNet 6710G-RJ: 230.6(W)x145.2 (H)x75.7(D) w/ mounting kit...
  • Page 16 JetNet 6710G/ JetNet 6810G User Manual JetNet 6710G-m12 JetNet 6710G-RJ...
  • Page 17 JetNet 6710G/ JetNet 6810G User Manual Panel Layout The front panel includes 10/100Mbps PoE ports, Gigabit Ethernet ports, RS232 console with DO port, System / Port LED and Power input. JetNet 6810G series Note: the Jetnet 6810G’s power input conductor does not support redundant power input function and must aggregate two V+ conductors as one input circuit to get high current carry abilitity;...
  • Page 18 JetNet 6710G/ JetNet 6810G User Manual JetNet 6710G-m12 HVDC...

  • Page 19: Wiring Power Inputs

    JetNet 6710G/ JetNet 6810G User Manual Wiring Power Inputs The Power input port is located at the top of the front panel and supports redundant input function via a proprietary assembly capable IP-67 connector (CDG-L207SA) included in the shipment. If you cannot find this power connector, please contact your local distributor.

  • Page 20: Wiring Rs-232 Console And Relay Output

    JetNet 6710G/ JetNet 6810G User Manual Figure 2.2-2 Power connector assembly diagram Wiring RS-232 console and Relay Output The RS-232 console and the alarm relay are connected via the assembly type of 5-pole M12 A-coding connector included in the supplied package of JetNet switch.
  • Page 21 JetNet 6710G/ JetNet 6810G User Manual 3.5 to 5.8 mm. Choose the one that best fits the cable. Picture 8 Step-2: Solder the conductors with the copper wires according to the pin assignment. The soldering side view of the pin is shown as below: Picture 9 –...

  • Page 22: Wiring Earth Ground & Lighting /Surge Ground

    JetNet 6710G /JetNet 6810G with Earth Ground. On the left side of JetNet 6710G/6810G, there is one earth ground screw. Loosen the earth ground screw by screw driver; then tighten the screw after earth ground wire is connected.

  • Page 23: Wiring Fast Ethernet Ports

    JetNet 6710G/ JetNet 6810G User Manual Wiring Fast Ethernet Ports You can connect terminal devices and other segments via twisted pair cables. Ports which are not assigned should be closed with the covering caps contained in the package list of delivery to guarantee the connector is clear without rust.
  • Page 24 JetNet 6710G/ JetNet 6810G User Manual Assembly of M12 Ethernet Connector For Fast Ethernet M12 D-Code to M12 D-Code connection, you can use either version below: M12-M12 MDI -------------------------------------------------------------- ---- -------------------------------------------------------------- ---- -------------------------------------------------------------- ---- -------------------------------------------------------------- ---- M12-M12 MDI-X -------------------------------------------------------------- ----...
  • Page 25 JetNet 6710G/ JetNet 6810G User Manual For Gigabit Ethernet M12 A-Code to RJ45 connection, the pin assignment of the patch cable is shown below, Picture 16 Gigabit M12-to-RJ45 Ethernet Cable Wiring For Gigabit Ethernet M12 A-Code to M12 A-Code connection, the pin assignment of the patch cable is shown below.
  • Page 26 JetNet 6710G/ JetNet 6810G User Manual Assembly of Rugged RJ45 Connector (JetNet 6710G-RJ/JetNet 6810G-RJ ) The RJ version provides robust connection by the field assembly capable rugged RJ45 connector. Each component of the connector is shown below: Picture 17 Rugged RJ45 Connecter Components...
  • Page 27 JetNet 6710G/ JetNet 6810G User Manual Following picture-19 shows the color code of Cat.-5E STP /FTP cable based on the two standards released by TIA/EIA – 568A and 568B. The 568B wiring is by far, the most common wiring method. You can choose the method that suits your application;...

  • Page 28: Wall-Mounting Installation

    Wall-Mounting Installation JetNet 6710G and JetNet 6810G series support wall-mounting only and there are 6 screw holes on the rear side of JetNet 6710G/JetNet 6810G for the mounting plate fixate; Use the screws included in the shipment to locking the plates as the figure-A and figure-B below.

  • Page 29: Preparation For Management

    You can configure the switch via RS232 console cable if you don’t attach your admin PC to your network, or if you lose network connection to your JetNet 6710G /JetNet 6810G. This is so-called out-band management. It wouldn’t be affected by network performance.

  • Page 30: Preparation For Web Interface

    HTTPS Web Interface for web management 3.2.1 Web Interface Korenix web management page is developed by JAVA. It allows you to use a standard web-browser such as Microsoft Internet Explorer, or Mozila, to configure and interrogate the switch from anywhere on the network.
  • Page 31 Users have to directly modify the browser settings to selectively enable Java applets to use network ports. Note 2: The Web UI connection session of JetNet 6710G/JetNet 6810G will be logged out automatically if you don’t give any input after 30 seconds.
  • Page 32 Type https://192.168.10.1 (or the IP address of the switch). And then press Enter. The popup screen will appear and request you to trust the secured HTTPS connection distributed by JetNet 6710G first. Press Yes to trust it. The login screen will appear next.

  • Page 33: Preparation For Telnet Console

    2. Type the Telnet 192.168.10.1 (or the IP address of the switch). And then press Enter 3.3.2 SSH (Secure Shell) Korenix JetNet managed Switch also support SSH console. You can remotely connect to the switch by command line interface. The SSH connection can secure all the configuration commands you sent to the switch.
  • Page 34 JetNet 6710G/ JetNet 6810G User Manual JetNet switch) and Port number (default = 22). Choose the “SSH” protocol. Then click on “Open” to start the SSH session console. 2. After click on Open, then you can see the cipher information in the...
  • Page 35 JetNet 6710G/ JetNet 6810G User Manual 3. After few seconds, the SSH connection to JetNet Switch is opened. You can see the login screen as the below figure- sample of JetNet 5010G for reference. 4. Type the Login Name and its Password. The default Login Name and Password are admin / admin.

  • Page 36: Feature Configuration

    IP address. Then you can remotely connect to its embedded HTML web pages or Telnet console. Korenix web management page is developed by JAVA. It allows you to use a standard web-browser such as Microsoft Internet Explorer, or Mozila, to configure and interrogate the switch from anywhere on the network.

  • Page 37: Command Line Interface Introduction

    JetNet 6710G/ JetNet 6810G User Manual Command Line Interface Introduction The Command Line Interface (CLI) is the user interface to the switch’s embedded software system. You can view the system information, show the status, configure the switch and receive a response back from the system by keying in a command.
  • Page 38 JetNet 6710G/ JetNet 6810G User Manual Type configure terminal to enter next mode, exit to leave. ? to see the command list Switch# archive Manage archive files clear Reset functions clock Configure time-of-day clock configure Configuration from vty interface copy...
  • Page 39 JetNet 6710G/ JetNet 6810G User Manual Global Configuration Mode: Press configure terminal in privileged EXEC mode. You can then enter global configuration mode. In global configuration mode, you can configure all the features that the system provides you. Type interface IFNAME/VLAN to enter interface configuration mode, exit to leave.
  • Page 40 JetNet 6710G/ JetNet 6810G User Manual (Port) Interface Configuration: Press interface IFNAME in global configuration mode. You can then enter interface configuration mode. In this mode, you can configure port settings. The port interface name for fast Ethernet port 1 is fa1,… fast Ethernet 7 is fa7, fast Ethernet port 8 is fa8..
  • Page 41 JetNet 6710G/ JetNet 6810G User Manual Switch(config)# interface vlan 1 Switch(config-if)# description Interface specific description End current mode and change to enable mode exit Exit current mode and down to previous mode Interface Internet Protocol config commands list Print command list...
  • Page 42 JetNet 6710G/ JetNet 6810G User Manual Type end to privileged EXEC mode. VLAN Interface In this mode, you can configure Enter: Type interface VLAN Switch(config-vlan)# Configuration settings for specific VLAN. VID in global configuration mode. Exit: Type exit or Ctrl+Z to global configuration mode.
  • Page 43 JetNet 6710G/ JetNet 6810G User Manual Here are some useful commands for you to see these available commands. Save your time in typing and avoid typing error. ? To see all the available commands in this mode. It helps you to see the next command you can/should type as well.

  • Page 44: Basic Setting

    JetNet 6710G/ JetNet 6810G User Manual Basic Setting The Basic Setting group provides you to configure switch information, IP address and user name/Password of the system. It also allows you to do firmware upgrade, backup and restore configuration, reload factory default, and reboot the system.
  • Page 45 MIB in MIB browser. (Note: When you attempt to view private MIB, you should compile private MIB files into your MIB browser first.) System Description: JetNet 6710G /JetNet 6810G Industrial Management Ethernet Switch is the name of this product. Firmware Version: Display the firmware version installed in this device.
  • Page 46 JetNet 6710G/ JetNet 6810G User Manual Figure 4.2.2.2 Popup alert window for Incorrect Username. 4.2.3 IP Configuration This function allows users to configure the switch’s IP address settings. Below figure is the UI of IP configuraation. DHCP Client: You can select to Enable or Disable DHCP Client function.
  • Page 47 JetNet 6710G/ JetNet 6810G User Manual Note: In the CLI, we use the enabled bit of the subnet mask to represent the number displayed in web UI. For example, 8 stands for 255.0.0.0; 16 stands for 255.255.0.0; 24 stands for 255.255.255.0.
  • Page 48 JetNet 6710G/ JetNet 6810G User Manual you change Time source to NTP Client. The system will send request packet to acquire current time from the NTP server you assigned. IEEE 1588: With the Precision Time Protocol IEEE 1588 there is now, for...
  • Page 49 JetNet 6710G/ JetNet 6810G User Manual 14 (GMT-05:00) Indiana (East) 15 (GMT-04:00) Atlantic Time (Canada) 16 (GMT-04:00) Caracas, La Paz 17 (GMT-04:00) Santiago 18 (GMT-03:00) NewFoundland 19 (GMT-03:00) Brasilia 20 (GMT-03:00) Buenos Aires, Georgetown 21 (GMT-03:00) Greenland 22 (GMT-02:00) Mid-Atlantic 23 (GMT-01:00) Azores 24 (GMT-01:00) Cape Verde Is.
  • Page 50 JetNet 6710G/ JetNet 6810G User Manual 63 (GMT+09:00) Yakutsk 64 (GMT+09:30) Adelaide 65 (GMT+09:30) Darwin 66 (GMT+10:00) Brisbane 67 (GMT+10:00) Canberra, Melbourne, Sydney 68 (GMT+10:00) Guam, Port Moresby 69 (GMT+10:00) Hobart 70 (GMT+10:00) Vladivostok 71 (GMT+11:00) Magadan, Solomon Is., New Caledonia 72 (GMT+12:00) Aukland, Wellington 73 (GMT+12:00) Fiji, Kamchatka, Marshall Is.
  • Page 51 Add or remove an IP address from the Excluded Address List by clicking Add or Remove. Manual Binding: JetNet 6710G /JetNet 6810G provides a MAC address and IP address binding and removing function. You can type in the specified IP and MAC address, and then click Add to add a new MAC&IP...
  • Page 52 IP address. DHCP Leased Entries: JetNet 6710G /JetNet 6810G provides an assigned IP address list for user check. It will show the MAC and IP address that was assigned by JetNet 6710G/JetNet 6810G. Click the Reload button to refresh the listing.
  • Page 53 JetNet 6710G/ JetNet 6810G User Manual DHCP Relay Agent You can select to Enable or Disable DHCP relay agent function, and then select the modification type of option 82 field, circuit ID, remote ID. Relay policy drop: Drops the option 82 field and do not add any option 82 field.
  • Page 54 JetNet 6710G/ JetNet 6810G User Manual Restore command later to restore the configuration file back to the switch. Before you restore the configuration file, you must place the backup configuration file in the PC or TFTP server. The switch will then download this file back to the flash.
  • Page 55 JetNet 6710G/ JetNet 6810G User Manual Figure 4.2.6.2 Bacup/Restore Configuration - Local File mode Click on Folder icon to select the target file you want to backup/restore. Note that the folders of the path to the target file do not allow you to input space key.
  • Page 56 JetNet 6710G/ JetNet 6810G User Manual 4.2.7 Firmware Upgrade In this section, you can update the latest firmware for your switch. Korenix provides the latest firmware in Korenix Web site. The new firmware may include new features, bug fixes or other software changes. We’ll also provide the release notes for the update as well.
  • Page 57 JetNet 6710G/ JetNet 6810G User Manual rebooted. Figure 4.2.7.2 Firmware Upgrade - Local File mode. (refer to JetNet 5010G) Click on Folder icon to select the target firmware file you want to upgrade. Figure 4.2.7.3 Firmware Upgrade – TFTP Server mode.
  • Page 58 JetNet 6710G/ JetNet 6810G User Manual 4.2.8 Factory Default In this section, you can reset all the configurations of the switch to default setting. Click on Reset the system will then reset all configurations to default setting. The system will show you popup message window after finishing this command.
  • Page 59 JetNet 6710G/ JetNet 6810G User Manual 4.2.9 System Reboot System Reboot allows you to reboot the device. Some of the feature changes require you to reboot the system. Click on Reboot to reboot your device. Note: Remember to click on Save button to save your settings. Otherwise, the settings you made will be gone when the switch is powered off.
  • Page 60 JetNet 6710G/ JetNet 6810G User Manual Switch(config)# hostname JN6810G SWITCH(config)# SWITCH(config)# snmp-server location Taipei System Location SWITCH(config)# snmp-server contact korecare@korenix.com System Contact SWITCH# show snmp-server name Display SWITCH SWITCH# show snmp-server location Taipei SWITCH# show snmp-server contact korecare@korenix.com SWITCH# show version...
  • Page 61 JetNet 6710G/ JetNet 6810G User Manual ip route 0.0.0.0/0 192.168.10.254/24 Time Setting SWITCH(config)# ntp peer NTP Server enable disable primary secondary SWITCH(config)# ntp peer primary IPADDR SWITCH(config)# ntp peer primary 192.168.10.120 SWITCH(config)# clock timezone 26 Time Zone Sun Jan 1 04:13:24 2006 (GMT) Greenwich Mean Time:...
  • Page 62 JetNet 6710G/ JetNet 6810G User Manual Enable DHCP Relay policy Switch(config-dhcp)# ip dhcp relay information policy replace drop Relay Policy keep Drop/Keep/Replace option82 field replace Switch# show ip dhcp server statistics Show DHCP server Switch# show ip dhcp server statistics...
  • Page 63 JetNet 6710G/ JetNet 6810G User Manual System Reboot Switch# reboot Reboot...

  • Page 64: Port Configuration

    JetNet 6710G/ JetNet 6810G User Manual Port Configuration Port Configuration group enables you to enable/disable port state, or configure port auto-negotiation, speed, and duplex, flow control, rate limit control and port aggregation settings. It also allows you to view port status and aggregation information.
  • Page 65 JetNet 6710G/ JetNet 6810G User Manual Fast Ethernet Port 1~8 (fa1~fa8) : AutoNegotiation, 10M Full Duplex(10 Full), 10M Half Duplex(10 Half), 100M Full Duplex(100 Full) and 100M Half Duplex(100 Half). Gigabit Ethernet Port 9~10: (gi9~gi10) : AutoNegotiation, 10M Full Duplex(10 Full), 10M Half Duplex(10 Half), 100M Full Duplex(100 Full), 100M Half Duplex(100 Half), 1000M Full Duplex(1000 Full), 1000M Half Duplex(1000 Half).
  • Page 66 JetNet 6710G/ JetNet 6810G User Manual Speed/Duplex: Current working status of the port. Flow Control: The state of the flow control. 4.3.3 Rate Control Rate limiting is a form of flow control used to enforce a strict bandwidth limit at a port. You can program separate transmit (Egress Rule) and receive (Ingress Rule) rate limits at each port, and even apply the limit to certain packet types as described below.
  • Page 67 IEEE standard, 802.3ad. The aggregated ports can interconnect to the other switch which also supports Port Trunking. Korenix Supports 2 types of port trunking. One is Static Trunk, the other is 802.3ad. When the other end uses 802.3ad LACP, you should assign 802.3ad LACP to the trunk. When the other end uses non-802.3ad, you can then use Static Trunk.
  • Page 68 JetNet 6710G/ JetNet 6810G User Manual members. Since the member ports should use same speed/duplex, max trunk members for 100Mbps would be 8, and 2 for gigabit. Group ID: Group ID is the ID for the port trunking group. Ports with same group ID are in the same group.
  • Page 69 JetNet 6710G/ JetNet 6810G User Manual 4.3.5 Command Lines for Port Configuration Feature Command Line Port Control Switch(config-if)# shutdown -> Disable port state Port Control – State Port1 Link Change to DOWN interface fastethernet1 is shutdown now. Switch(config-if)# no shutdown ->...
  • Page 70 JetNet 6710G/ JetNet 6810G User Manual Note: Administrative Status -> Port state of the port. Operating status -> Current status of the port. Duplex -> Duplex mode of the port. Speed -> Speed mode of the port. Flow control ->...
  • Page 71 JetNet 6710G/ JetNet 6810G User Manual Trunk Group GroupID Protocol Ports --------+---------+------------------------------------ Static 6(D) 7(P) Switch#...

  • Page 72: Power Over Ethernet

    JetNet 6710G/ JetNet 6810G User Manual Power over Ethernet Power over Ethernet is one of the key features of JetNet 6710G and JetNet 6810Gseries. It is fully IEEE802.3af-2003 compliant, and support IEEE802.3at, including 1-event with IEEE 802.1AB LLDP classification for PoE MDI.
  • Page 73 Note: In JetNet 6810G, PoE system power Budget only support 120W. Due the internal isolated DC/DC booster output budget is 120W, so the value can’t be changed. ( JetNet 6710G supports 200W PoE output ability.) Part-2: Port Configuration: it includes PoE mode selection, Powering mode, Power Budget mode selection and power budget setting for the Power budget manual mode.
  • Page 74 JetNet 6710G /JetNet 6810G delivers a useful function – PD Status Detection. This provides automatic detection of a remote device powered by JetNet 6710G or JetNet 6810G. If the remote system crashes or is unstable, JetNet PoE Switch will perform a remote system reboot by turning off and on again to trigger the remote device.
  • Page 75 JetNet 6710G/ JetNet 6810G User Manual 4.4.2 PoE Scheduling The PoE Scheduling control is a powerful function to help you save power and money. You need to configure PoE Scheduling and select a target port manually to enable this function.
  • Page 76 JetNet 6710G/ JetNet 6810G User Manual 4.4.3 PoE Status The PoE Status page shows the operating status of each PoE Port. The information includes PoE mode, Operation status, PD class, Power Consumption, Voltage and Current. 4.4.4 Command Line for PoE control...
  • Page 77 JetNet 6710G/ JetNet 6810G User Manual Interface fastethernet1 (POE Port 1) Control Mode : User (Disable) Powering Mode : 802.3af Operation Status : Off Detection Status : Valid Classification : N/A Priority : Highest Output Power : 0.0 Watts, Voltage : 0.0 V, Current : 0 mA Power Budget : Budget : 32.0 Watts, effective 0 Watts...
  • Page 78 JetNet 6710G/ JetNet 6810G User Manual Command Mode Interface mode Description Set the Powring mode of PoE Examples EX 1: Set 802.3af powring mode Switch(config)# poe powering-mode 802.3af EX 2: Set forced powering mode Switch(config)# poe powering-mode forced Syntax poe powering-mode 802.3at 2-event/lldp...
  • Page 79 JetNet 6710G/ JetNet 6810G User Manual Command Mode Interface mode Description Set the port budget. The max budget is different between 802.3af, 802,3at and forced powering mode. The max budget of 802.3af powering mode is 15.4. The max budget of 802.3at powering mode is 30 The max budget of force powering mode is 30.
  • Page 80 JetNet 6710G/ JetNet 6810G User Manual Syntax poe budget warning <0-100> Parameters <0-100> 0 is disable, valid range is 1 to 100 percentage Command Mode Configuration mode Description Set the warning water level of total power budget. Examples Set the warning water level to 60%...

  • Page 81: Network Redundancy

    Multiple Super Ring (MSR) technology is Korenix’s 3 generation Ring redundancy technology. This is patented and protected by Korenix and is used in countries all over the world. MSR ranks the fastest restore and failover time in the world, 0 ms for restore and about 5 milliseconds for failover for copper.
  • Page 82 JetNet 6710G/ JetNet 6810G User Manual 4.5.1 STP Configuration This page allows select the STP mode and configuring the global STP/RSTP Bridge Configuraiton. The STP mode includes the STP, RSTP, MSTP and Disable. Please select the STP mode for your system first. The default mode is RSTP enabled.
  • Page 83 JetNet 6710G/ JetNet 6810G User Manual Bridge Configuration Bridge Address: This shows the switch’s MAC address. Priority (0-61440): RSTP uses bridge ID to determine the root bridge, the bridge with the highest bridge ID becomes the root bridge. The bridge ID is composed of bridge priority and bridge MAC address.
  • Page 84 JetNet 6710G/ JetNet 6810G User Manual 4.5.2 STP Port Configuration This page allows you to configure the port parameter after enabled STP or RSTP. Port Configuration Select the port you want to configure and you will be able to view current setting and status of the port.
  • Page 85 JetNet 6710G/ JetNet 6810G User Manual Edge: A port directly connected to the end stations cannot create a bridging loop in the network. To configure this port as an edge port, set the port to the Enable state. When the non-bridge device connects an admin edge port, this port will be in blocking state and turn to forwarding state in 4 seconds.
  • Page 86 One VLAN can be mapped to a Multiple Spanning Tree Instance (MSTI). The maximum Instance of JetNet 6710G / JetNet 681G support is 16, range from 0-15. The MSTP builds a separate Multiple Spanning Tree (MST) for each instance to maintain connectivity among each of the assigned VLAN groups.
  • Page 87 JetNet 6710G/ JetNet 6810G User Manual The figure shows the CST large network. In this network, a Region may have different instances and its own forwarding path and table; however, it acts as a single Brige of CST. To configure the MSTP setting, the STP Mode of the STP Configuration page should be changed to MSTP mode first.
  • Page 88 JetNet 6710G/ JetNet 6810G User Manual MSTP Region Configuration This page allows configure the Region Name and its Revision, mapping the VLAN to Instance and check current MST Instance configuration. The network can be divided virtually to different Regions. The switches within the Region should have the same Region and Revision leve.
  • Page 89 JetNet 6710G/ JetNet 6810G User Manual 4.5.5 MSTP Port Configuration This page allows configure the Port settings. Choose the Instance ID you want to configure. The MSTP enabled and linked up ports within the instance will be listed in this table.
  • Page 90 JetNet 6710G/ JetNet 6810G User Manual (i.e. it is served by a point-to-point LAN segment), or if it can be connected to two or more bridges (i.e. it is served by a shared-medium LAN segment). This function allows link status of the link to be manipulated administratively.
  • Page 91 Ring ID. The maximum Ring number one switch can support is half of total port volume. For example, the JetNet 6710G/6810G is a 10 port Ethernet Switch design, which means maximum 5 Rings (4 100Mbps + 1 Gigabit Rings) can be aggregated in one JetNet 6710G/6810G.
  • Page 92 JetNet 6710G/ JetNet 6810G User Manual Ring Configuration ID: Once a Ring is created, This appears and can not be changed. Name: This field will show the name of the Ring. If it is not filled in when creating, it will be automatically named by the rule “RingID”.
  • Page 93 JetNet 6710G/ JetNet 6810G User Manual any problem. In Dual Homing I released with JetNet 4000/4500 series, you have to configure additional port as Dual Homing port to two uplink switches. In Rapid Dual Homing, you don’t need to configure specific port to connect to other protocol.
  • Page 94 JetNet 6710G/ JetNet 6810G User Manual 4.5.8 Ring Info This page shows the RSR information. ID: Ring ID. Version: which version of this ring, this field could be Rapid Super Ring, Super Ring, or Any Ring Role: This Switch is RM or nonRM Status: If this field is Normal which means the redundancy is approved.
  • Page 95 JetNet 6710G/ JetNet 6810G User Manual 4.5.9 Command Lines: Feature Command Line Global (STP, RSTP, MSTP) Enable Switch(config)# spanning-tree enable Disable Switch (config)# spanning-tree disable Mode (Choose the Switch(config)# spanning-tree mode Spanning Tree mode) rst the rapid spanning-tree protocol (802.1w) stp the spanning-tree prtotcol (802.1d)
  • Page 96 JetNet 6710G/ JetNet 6810G User Manual Switch(config-mst)# name korenix Region Revision: Switch(config-mst)# revision <0-65535> the value of revision Switch(config-mst)# revision 65535 Mapping Instance to Switch(config-mst)# instance VLAN (Ex: Mapping <1-15> target instance number VLAN 2 to Instance 1) Switch(config-mst)# instance 1 vlan VLANMAP target vlan number(ex.10) or range(ex.1-10)
  • Page 97 JetNet 6710G/ JetNet 6810G User Manual -------- -------------------------------------- 1,4-4094 (-> The instance is not applied after Abort settings.) ------------------------------------------------ Config HMAC-MD5 Digest: 0xB41829F9030A054FB74EF7A8587FF58D ------------------------------------------------ RSTP System RSTP Setting The mode should be rst, the timings can be configured in global settings listed in above.
  • Page 98 JetNet 6710G/ JetNet 6810G User Manual Backbonefast disabled for bridge. Summary of connected spanning tree ports : #Port-State Summary Blocking Listening Learning Forwarding Disabled -------- --------- -------- ---------- -------- #Port Link-Type Summary AutoDetected PointToPoint SharedLink EdgePort ------------ ------------ ---------- --------...
  • Page 99 JetNet 6710G/ JetNet 6810G User Manual ------ ---------- ---------- -------- ---------- ------------------ fa1 Designated Forwarding 200000 128.1 P2P Internal(MSTP) fa2 Designated Forwarding 200000 128.2 P2P Internal(MSTP) MSTP Root Switch# show spanning-tree mst root Information Root Root Root Root Max Hello Fwd...
  • Page 100 JetNet 6710G/ JetNet 6810G User Manual <0-255> valid range is 0 or 255 default set default (128)valid range is 0 or 255 Switch(config-super-ring-plus)# port cost 100 200 Set path cost success. Rapid Dual Homing Switch(config-multiple-super-ring)# rapid-dual-homing enable Switch(config-multiple-super-ring)# rapid-dual-homing disable...

  • Page 101: Vlan

    Figure 4.6-1 802.1Q VLAN (same as JetNet 6710G/JetNet 6810G) VLAN Configuration group enables you to Add/Remove VLAN, configure port Ingress/Egress parameters and view VLAN table.
  • Page 102 JetNet 6710G/ JetNet 6810G User Manual 4.6.1 VLAN Port Configuration VLAN Port Configuration allows you to set up VLAN port parameters to specific port. These parameters include PVID, Accept Frame Type and Ingress Filtering. Figure 4.6.1-1 Web UI of VLAN configuration PVID: The abbreviation of the Port VLAN ID.
  • Page 103 JetNet 6710G/ JetNet 6810G User Manual example, if a tagged frame from Engineer VLAN is received, and Ingress Filtering is enabled, the switch will determine if the port is on the Engineer VLAN’s Egress list. If it is, the frame can be processed. If it’s not, the frame would be dropped.
  • Page 104 JetNet 6710G/ JetNet 6810G User Manual Figure 4.6.2-2 The steps to create a new VLAN: Type in VLAN ID and NAME, and press Add to create a new VLAN. Then you can see the new VLAN in the Static VLAN Configuration table.
  • Page 105 JetNet 6710G/ JetNet 6810G User Manual Figure 4.6.2-4 Configure Egress rule of the ports. -- : Not available U: Untag: Indicates that egress/outgoing frames are not VLAN tagged. T : Tag: Indicates that egress/outgoing frames are to be VLAN tagged.
  • Page 106 JetNet 6710G/ JetNet 6810G User Manual 4.6.3 GVRP configuration GVRP allows users to set-up VLANs automatically rather than manual configuration on every port of every switch in the network. GVRP Protocol: Allow user to enable/disable GVRP globally. State: After enable GVRP globally, here still can enable/disable GVRP by port.
  • Page 107 JetNet 6710G/ JetNet 6810G User Manual VLAN ID: ID of the VLAN. Name: Name of the VLAN. Status: Static shows this is a manually configured static VLAN. Unused means this VLAN is created by UI/CLI and has no member ports. This VLAN is not workable yet.
  • Page 108 JetNet 6710G/ JetNet 6810G User Manual (for VLAN 2) switchport access vlan - success Egress rule – Tagged Switch(config-if)# switchport trunk allowed vlan add 2 (for VLAN 2) Display – Port Ingress Switch# show interface fa1 Rule (PVID, Ingress Interface fastethernet1...
  • Page 109 JetNet 6710G/ JetNet 6810G User Manual VLAN description Switch(config)# interface vlan 2 Switch(config-if)# Switch(config-if)# description this is the VLAN 2 Switch(config-if)# no description ->Delete the description. IP address of the VLAN Switch(config)# interface vlan 2 Switch(config-if)# Switch(config-if)# ip address 192.168.10.18/24 Switch(config-if)# no ip address 192.168.10.8/24 ->Delete...

  • Page 110: Private Vlan

    JetNet 6710G/ JetNet 6810G User Manual Private VLAN The private VLAN helps to resolve the primary VLAN ID shortage, client 格式化: 縮排: 左 2.25 字元, 間距 套 ports’ isolation and network security issues. The Private VLAN provides 用後: 0.5 行, 行距: 固定行高 12 點...
  • Page 111 JetNet 6710G/ JetNet 6810G User Manual Isolated: The VLAN is the Isolated VLAN. The member ports of the 格式化: 字型: Arial, 12 點, 粗體 VLAN are isolated. Community: The VLAN is the Community VLAN. The member ports of 格式化: 字型: Arial, 12 點, 粗體...
  • Page 112 JetNet 6710G/ JetNet 6810G User Manual VLAN ID: After assigned the port type, the web UI display the available 格式化: 字型: Arial, 12 點, 粗體, 英 VLAN ID the port can associate to. 文 (美國) 格式化: 字型: Arial, 12 點, 英文 (美...
  • Page 113 JetNet 6710G/ JetNet 6810G User Manual 格式化: 字型: Arial 4.7.3 Private VLAN Information 格式化: 項目符號及編號 This page allows you to see the Private VLAN information. 格式化: 內文, 行距: 單行間距, 取 消項目符號與編號 4.7.4 CLI Command of the PVLAN 格式化: 項目符號及編號 Command Lines of the Private VLAN configuration...
  • Page 114 JetNet 6710G/ JetNet 6810G User Manual primary Configure the VLAN as a primary private VLAN Primary Type Switch(config-vlan)# private-vlan primary <cr> Isolated Type Switch(config-vlan)# private-vlan isolated <cr> Community Type Switch(config-vlan)# private-vlan community <cr> Private VLAN Port Configuraiton Go to the port...
  • Page 115 JetNet 6710G/ JetNet 6810G User Manual PVLAN Type Switch# show vlan private-vlan type Vlan Type Ports ---- ----------------- ----------------- primary gi10 isolated community community fa7,gi9 primary Host List Switch# show vlan private-vlan port-list Ports Mode Vlan ----- ----------- ---- normal...

  • Page 116: Traffic Prioritization

    JetNet 6710G/ JetNet 6810G User Manual interface gigabitethernet9 switchport access vlan add 2,5 switchport trunk native vlan 5 switchport mode private-vlan host switchport private-vlan host-association 2 3 interface gigabitethernet10 switchport access vlan add 2,5 switchport trunk native vlan 2 switchport mode private-vlan promiscuous switchport private-vlan mapping 2 add 3-5 ………...
  • Page 117 JetNet 6710G/ JetNet 6810G User Manual 4.8.1 QoS Setting Queue Scheduling You can select the Queue Scheduling rule as follows: Use an 8,4,2,1 weighted fair queuing scheme. This is also known as WRR (Weight Round Robin). JetNet will follow 8:4:2:1 rate to process the packets in a queue from the highest priority to the lowest.
  • Page 118 In JetNet, users can freely assign the mapping table or follow the suggestion of the 802.1p standard. Korenix uses 802.p suggestion as default values. You can find CoS values 1 and 2 are mapped to physical Queue 0, the lowest queue.
  • Page 119 JetNet 6710G/ JetNet 6810G User Manual This page is to change DSCP values to Physical Queue mapping table. Since the switch fabric of JetNet only supports 4 physical queues, Lowest, Low, Middle and High. Users should therefore assign how to map DSCP value to the level of the physical queue.
  • Page 120 JetNet 6710G/ JetNet 6810G User Manual Switch(config-if)# qos cos 7 The default port CoS value is set 7 ok. Note: When change the port setting, you should Select the specific port first. Ex: fa1 means fast Ethernet port 1. Port Setting – Trust...
  • Page 121 JetNet 6710G/ JetNet 6810G User Manual Map CoS 0 to Queue 1 Switch(config)# qos cos-map 0 1 The CoS to queue mapping is set ok. Map CoS 1 to Queue 0 Switch(config)# qos cos-map 1 0 The CoS to queue mapping is set ok.

  • Page 122: Multicast Filtering

    JetNet 6710G/ JetNet 6810G User Manual Multicast Filtering For multicast filtering, JetNet 6710G/6810G uses IGMP Snooping technology. IGMP (Internet Group Management Protocol) is an Internet Protocol that provides a way for internet device to report its multicast group membership to adjacent routers. Multicasting allows one computer on the internet to send data to a multitude of other computers that have identified themselves as being interested in receiving the originating computers data.
  • Page 123 This page is to enable IGMP Snooping feature, assign IGMP Snooping for specific VLAN, and view IGMP Snooping table from dynamic learnt or static manual key-in. JetNet 6710G/JetNet 6810G support IGMP snooping V1/V2/V3 automatically and IGMP query V1/V2. IGMP Snooping, you can select Enable or Disable here. After enabling IGMP Snooping, you can then enable IGMP Snooping for specific VLAN.
  • Page 124 IGMP Snooping Table: In the table, you can see multicast group IP address, VLAN ID it belongs to, and member ports of the multicast group. JetNet 6710G/6810G series supports 256 multicast groups. Click on Reload to refresh the table. 4.9.2 IGMP Query This page allows users to configure IGMP Query feature.
  • Page 125 JetNet 6710G/ JetNet 6810G User Manual 4.9.3 Force Filtering The Force filtering function allows the switch to filter the unknown-multicast data flow. If Force filtering is enabled, all the unknown multicast data will be discarded. 4.9.4 CLI Commands of the Multicast Filtering...
  • Page 126 JetNet 6710G/ JetNet 6810G User Manual IGMP Query V2 Switch(config)# int vlan 1 (Go to management VLAN) Switch(config-if)# ip igmp IGMP Query version Switch(config-if)# ip igmp version 1 Switch(config-if)# ip igmp version 2 Disable Switch(config)# int vlan 1 Switch(config-if)# no ip igmp...

  • Page 127: Snmp

    With Read and Write privilege, you have the ability to read and set the values of MIB tables. Default community string is Private. JetNet 6710G allows users to assign 4 community strings. Type the community string and select the privilege. Then press Apply.
  • Page 128 (Secure Hash Algorithm) hash functions refer to five Federal Information Processing Standard-approved algorithms for computing a condensed digital representation. JetNet 6710G/6810G provides 2 user authentication protocols in MD5 and SHA. You will need to configure SNMP v3 parameters for your SNMP tool with the same authentication method.
  • Page 129 IP, Community name, and trap Version V1 or V2. After configuration, you can see the change of the SNMP pre-defined standard traps and Korenix pre-defined traps. The pre-defined traps can be found in Korenix private MIB, that included in the CD-manual or download from...
  • Page 130 JetNet 6710G/ JetNet 6810G User Manual 4.10.4 CLI Commands of the SNMP Command Lines of the SNMP configuration Feature Command Line SNMP Community Read Only Community Switch(config)# snmp-server community public ro community string add ok Read Write Community Switch(config)# snmp-server community private rw...

  • Page 131: Security

    JetNet 6710G/ JetNet 6810G User Manual 4.11 Security JetNet 6710G/JetNet 6810G provides several security features for you to secure your connection. The features include Port Security and IP Security. Following commands are included in this group: 4.11.1 Port Security 4.11.2 IP Security 4.11.3 IEEE 802.1x...
  • Page 132 JetNet 6710G/ JetNet 6810G User Manual Once you finish configuring the settings, click on Apply / Add to apply your configuration. 4.11.2 IP Security In IP Security section, you can set up specific IP addresses to grant authorization for management access to this JetNet via a web browser or Telnet.
  • Page 133 JetNet 6710G/ JetNet 6810G User Manual 4.11.3 IEEE 802.1x 4.11.3.1 802.1X configuration IEEE 802.1X is the protocol that performing authentication to obtain access to IEEE 802 LANs. It is port-base network access control. With the function, JetNet Switch could control which connection is available or not.
  • Page 134 JetNet 6710G/ JetNet 6810G User Manual 4.11.3.2 802.1x Port Configuration After the configuration of Radius Server or Local user list, user also need configure the authentication mode, authentication behavior, applied VLAN for each port and permitted communication. The following information will explain the port configuration.
  • Page 135 JetNet 6710G/ JetNet 6810G User Manual Control Direction: determined devices can end data out only or both send and receive. Re-Auth Period: control the Re-authentication time interval, 1~65535 is available. Quiet Period: When authentication failed, Switch will wait for a period and try to communicate with radius server again.
  • Page 136 JetNet 6710G/ JetNet 6810G User Manual 4.11.4 CLI Commands of the Security Command Lines of the Security configuration Feature Command Line Port Security Add MAC Switch(config)# mac-address-table static 0012.7701.0101 vlan 1 interface fa1 mac-address-table unicast static set ok! Port Security...
  • Page 137 JetNet 6710G/ JetNet 6810G User Manual Switch(config)# radius server-ip Switch(config)# dot1x radius Switch(config)# dot1x radius server-ip 192.168.10.120 key 1234 RADIUS Server Port number NOT given. (default=1812) RADIUS Accounting Port number NOT given. (default=1813) RADIUS Server IP : 192.168.10.120 RADIUS Server Key : 1234...

  • Page 138: Warning

    4.12.5 CLI Commands 4.12.1 Fault Relay JetNet 6710G /6810G provides 1 dry output, also known as Relay Output. The relay contacts are energized (open) for normal operation and will close under fault conditions. Fault conditions include, Ethernet port Link Failure, Ping Failure and Super Ring Topology Change.
  • Page 139 JetNet 6710G/ JetNet 6810G User Manual Event Type: Dry Output On Period (Sec): Type the period time to turn on Relay Output. Available range of a period is 0-4294967295 seconds. Off Period (Sec): Type the period time to turn off Relay Output. Available...
  • Page 140 JetNet 6710G/ JetNet 6810G User Manual Event Type: Ping Failure IP Address: IP address of the target device you want to ping. Reset Time (Sec): Waiting time to short the relay output. Hold Time (Sec): Waiting time to ping the target device for the duration of...
  • Page 141 JetNet 6710G/ JetNet 6810G User Manual changed, the system will short Relay Out and lengthen DO LED. Once you finish configuring the settings, click on Apply to apply your configuration.
  • Page 142 The DO/Fault Relay is on. Super Ring Topology Changes Master of Super Ring has changed or backup path is activated. DI1 Change The Digital Input#1 status is changed. ( JetNet 6710G/6810G do nt support this function) Port Event Warning Event is sent when…..
  • Page 143 There are 2 System Log modes provided by JetNet 6710G/JetNet 6810G, local mode and remote mode. Local Mode: In this mode, JetNet 6710G/JetNet 6810G will print the occurred events selected in the Event Selection page to System Log table of JetNet 6710G/JetNet 6810G.
  • Page 144 [Monitor and Diag] / [Event Log] page. 4.12.4 SMTP Configuration JetNet 6710G/ JetNet 6810G supports E-mail Warning feature. The switch will send the occurred events to remote E-mail server. The receiver can then receive notification by E-mail. The E-mail warning is conformed to SMTP standard.
  • Page 145 JetNet 6710G/ JetNet 6810G User Manual Field Description SMTP Server IP Address Enter the IP address of the email Server Authentication Click on check box to enable password User Name Enter email Account name (Max.40 characters) Password Enter the password of the email account...
  • Page 146 JetNet 6710G/ JetNet 6810G User Manual 4.12.5 CLI Commands Command Lines of the Warning configuration Feature Command Line Relay Output Relay Output Switch(config)# relay 1 DI state dry output ping ping failure port port link failure power power failure ring super ring failure Note: Select Relay 1 or 2 first, then select the event types.
  • Page 147 Switch(config)# smtp-server server 192.168.10.100 admin@korenix.com SMTP Email Alert set Server: 192.168.10.100, Account: admin@korenix.com ok. Receiver mail Switch(config)# smtp-server receipt 1 korecare@korenix.com SMTP Email Alert set receipt 1: korecare@korenix.com ok. Authentication with Switch(config)# smtp-server authentication username admin username and password admin password...
  • Page 148 JetNet 6710G/ JetNet 6810G User Manual SMTP Email Alert set Authentication disable ok. Dispaly Switch# sh smtp-server SMTP Email Alert is Enabled Server: 192.168.10.100, Account: admin@korenix.com Authentication: Enabled Username: admin, Password: admin SMTP Email Alert Receipt: Receipt 1: korecare@korenix.com Receipt 2:...

  • Page 149: Monitor And Diag

    JetNet 6710G/ JetNet 6810G User Manual 4.13 Monitor and Diag JetNet 6710G/6810G provides several types of features for you to monitor the status of the switch or diagnostic for you to check the problem when encountering problems related to the switch. The features include MAC Address Table, Port Statistics, Port Mirror, Event Log and Ping.
  • Page 150 JetNet 6710G/ JetNet 6810G User Manual address will be updated to MAC address table. 4.13.2 Port Statistics In this page, you can view operation statistics for each port. The statistics that can be viewed include Link Type, Link State, Rx Good, Rx Bad, Rx Abort, Tx Good, Tx Bad and Collision.
  • Page 151 JetNet 6710G/ JetNet 6810G User Manual 4.13.3 Port Mirroring Port mirroring (also called port spanning) is a tool that allows you to mirror the traffic from one or more ports onto another port, without disrupting the flow of traffic on the original port. Any traffic that goes into or out of the Source Port(s) will be duplicated at the Destination Port.
  • Page 152 4.13.4 Event Log In the 4.11.3, we have introduced System Log feature. When System Log Local mode is selected, JetNet 6710G/JetNet 6810G will record occurred events in local log table. This page shows this log table. The entry includes the index, occurred data and time and content of the events.

  • Page 153: Ping Utility

    NMS as well. The LLDP Port State can display the neighbor ID and IP leant from the connected devices. You can purchase Korenix JetView Pro iNMS as your network management platform. Once configured the Management Switch’s LLDP setting, it will be auto discover by the NMS platform, like as JetView Pro.
  • Page 154 JetNet 6710G/ JetNet 6810G User Manual 4.13.7 CLI Commands of the Monitor and Diag Command Lines of the Monitor and Diag configuration Feature Command Line MAC Address Table Ageing Time Switch(config)# mac-address-table aging-time 350 mac-address-table aging-time set ok! Note: 350 is the new ageing timeout value.
  • Page 155 JetNet 6710G/ JetNet 6810G User Manual 0012.7701.0386 Dynamic 0012.7710.0101 Static 0012.7710.0102 Static 0012.77ff.0100 Management ***** MULTICAST MAC ADDRESS ***** Vlan Mac Address Status Ports ---- --------------- ---- ------- -------------------------- 0100.5e40.0800 0100.5e7f.fffa fa4,fa6 Show MAC Address Switch# show mac-address-table dynamic Table – Dynamic Learnt...
  • Page 156 JetNet 6710G/ JetNet 6810G User Manual Note: Select source port list and TX/RX/Both mode. Select Destination Port Switch(config)# mirror destination fa6 both Mirror destination fa6 both set ok Display Switch# show mirror Mirror Status : Enabled Ingress Monitor Destination Port : fa6...

  • Page 157: Device Front Panel

    JetNet 6710G/ JetNet 6810G User Manual 4.14 Device Front Panel Device Front Panel commands allows you to see LED status of the switch. You can see LED and link status of the Power, DO, R.M. and Ports. (the refernce figure is JetNet 6710G).

  • Page 158: Save To Flash

    JetNet 6710G/ JetNet 6810G User Manual 4.15 Save to Flash Save Configuration allows you to save any configuration you just made to the Flash. Powering off the switch without clicking on Save Configuration will cause loss of new settings. After selecting Save Configuration, click on Save to Flash to save your new configuration.

  • Page 159: Logout

    JetNet 6710G/ JetNet 6810G User Manual 4.16 Logout The switch provides 2 logout methods. The web connection will be logged out if you don’t input any command after 30 seconds. The Logout command allows you to manually logout the web connection. Click on Yes to logout, No to go back the configuration page.

  • Page 160: Appendix

    JetNet 6710G/ JetNet 6810G User Manual 5 Appendix JetNet 6710G Product Specifications Technology Standard IEEE 802.3 10 Base-T Ethernet IEEE 802.3u 100 Base-TX Fast Ethernet IEEE 802.3ab 1000 Base-T IEEE 802.3x Flow Control and Back-pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus (LLDP PoE)
  • Page 161 JetNet 6710G/ JetNet 6810G User Manual monitoring interface SNMP, Trap and SMTP interface. Cisco-Like CLI, Telnet, Web, TFTP/Web Update for firmware and configuration backup and restore, DHCP Client, warm reboot, reset to default, Admin password, Port Speed/Duplex Control, status, statistic, MAC address table display, static MAC, Aging time, SNMP v1, v2c, v3, Traps and RMON groups 1,2,3,9.
  • Page 162 JetNet 6710G/ JetNet 6810G User Manual Traffic Prioritize Supports 4 physical queues, weighted fair queuing (WRR) and Strict Priority scheme, which follows 802.1p CoS tag and IPv4 ToS/ Diffserv information to prioritize the traffic of your industrial network. IGMP Snooping IGMP Snooping v1/v2c /v3 for multicast filtering and IGMP Query mode;...
  • Page 163 Integrate port aggregate function in ring path to get higher throughput ring architecture MultiRing Coupling with multiple rings; JetNet 6710G supports up to 4 100M rings and 1 Gigabit ring in single switch. Rapid Spanning IEEE802.1D-2004 Rapid Spanning Tree Protocol.
  • Page 164 Input Voltage: DC 48~57V, redundant input with reverse protection. Mechanical Installation Wall Mount Steel metal. Case Dimension (mm) JetNet 6710G-m12/ 6710G-RJ : 198 (W) x 145.2 (H) x 74 (D) w/o mounting kit Weight JetNet 6710G-m12:1.92Kg JetNet 6710G-RJ:1.855Kg Environmental -40℃ ~70℃: 15.4w x 8 ports Operating -40℃...

  • Page 165: Jetnet 6810G Product Specifications

    JetNet 6710G/ JetNet 6810G User Manual JetNet 6810G Product Specifications Technology Standard IEEE 802.3 10 Base-T Ethernet IEEE 802.3u 100 Base-TX Fast Ethernet IEEE 802.3ab 1000 Base-T IEEE 802.3x Flow Control and Back-pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus (LLDP PoE) IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
  • Page 166 JetNet 6710G/ JetNet 6810G User Manual Port Speed/Duplex Control, status, statistic, MAC address table display, static MAC, Aging time, SNMP v1, v2c, v3, Traps and RMON groups 1,2,3,9. Supports command line interface with Cisco like Telnet & Local commands with maximum 4 sessions and also supports Console SSH.
  • Page 167 JetNet 6710G/ JetNet 6810G User Manual IGMP Snooping IGMP Snooping v1/v2c /v3 for multicast filtering and IGMP Query mode; also support unknown multicasting process forwarding policies- drop, flooding and forward to router port. Ingress/Egress filtering for Broadcast, Multicast, Rate Control Unknown DA or All packets.
  • Page 168 JetNet 6710G/ JetNet 6810G User Manual MultiRing Coupling with multiple rings; JetNet 6710G/6810G supports up to 4 100M rings and 1 Gigabit ring in single switch. IEEE802.1D-2004 Rapid Spanning Tree Protocol. Rapid Spanning Compatible with Legacy Spanning Tree and IEEE Tree 802.1w.

  • Page 169: Korenix Private Mib For Jetnet 6710G And Jetnet 6810G

    Korenix provides many standard MIBs for users to configure or monitor the switch’s configuration by SNMP. But, since some commands can’t be found in standard MIB, Korenix provides Private MIB to meet up the need. Compile the private MIB file by your SNMP tool. You can then use it. Private...
  • Page 170 If you are not familiar with standard MIB, you can directly use private MIB to manage /monitor the switch, no need to learn or find where the OIDs of the commands are MIB can be found in product CD or downloaded from Korenix Web site.
  • Page 171 JetNet 6710G/ JetNet 6810G User Manual Vlan MIB entry: Read and Write Traffic prioritization MIB entry: Read and Write Multicast Filtering MIB entry: Read and Write SNMP MIB entry: Read and write Security MIB entry: Read and write Warning MIB entry: Read and write...

  • Page 172: Revision History

    6710G supports 200W maximum. 17-Nov,2011 Modify some operating temperature with power budget. Integrated JetNet 6710G / JetNet 6810G in one: Add 6710G dimension drawing, appearance, modify feature with model information, and modify preface information. Add current limit number for PoE. (0.686A) Modify IEEE 802.3ab 1000Base-T and apply cable...

  • Page 173: About Korenix

    Less Time At Work! Fewer Budget on applications! The Korenix business idea is to let you spend less time at work and fewer budget on your applications. Do you really want to go through all the troubles but still end up with low quality products and lousy services? Definitely not! This is why you need Korenix.

This manual is also suitable for:

Jetnet 6810g

Table of Contents
