Declaration of CE This product has passed the CE certification for environmental specifications. Test conditions for passing included the equipment being operated within an industrial enclosure. In order to protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of CE-compliant industrial enclosure products.
Fault Alarm The JetNet 3205G series provides an alarm relay to trigger out a real alarm signal for power event. The alarm mechanism can be trigger an external alarm equipment to inform maintenance I.T. engineers. It makes a result of...
1-1. Features JetNet 3205G Five 10/100/1000Base-T RJ-45 IEEE802.3, 802.3u, and 802.3ab Compliance Flexible Gigabit Fiber Link Distance Power Redundancy with Wide Range Input Industrial Slim Size Design 9K bytes Jumbo Frame for Large File Transmission ...
-40~75℃ Hazardous Operating Temperature 1-2. Package Checklist JetNet 3205G series package includes the following items: JetNet 3205G (or JetNet 3205G-1F or JetNet 3205GP or JetNet 3205GP-1F) x1 One DIN-Rail clip (already screwed on the back of the product) ...
2. Hardware Description 2-1. Dimensions The dimension of JetNet 3205G series is 120 mm(H) x 30 mm (W) x99 mm (D) ( without DIN rail clip) JetNet 3205G JetNet 3205G-1F...

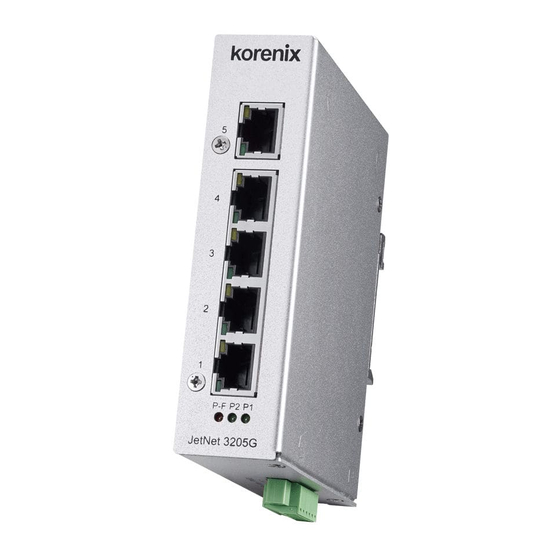

2-2. Front Panel The Front Panel of the JetCon 3205G series is shown in below JetNet 3205G Gigabit RJ-45 for 1000 Mbps RJ-45 for Link/Activity Alarm Relay indicator Power LED JetNet 3205G-1F Hot swappable SFP socket LED for SFP port...
2-3. Bottom View The bottom side of the JetNet 3205G series includes one 6-pin removable terminal block connector Earth Ground Screw Terminal Block with screw Power Alarm The power range of JetNet 3205G/JetNet 3205G-1F is from DC 10~60V with redundancy and polarity reverse function.
2-4. Wiring the DC Power Inputs Follow the steps below to wire JetNet 3205G series redundant DC power inputs. [Note] The suitable electric wire ranges from 12 to 23 AWG. Insert the positive and negative wires into the V+ and V- contacts respectively of the terminal block connector Tighten the wire-clamp screws to prevent the DC wires from being loosened.
2-5. Connect the Dry Relay Output JetNet 3205G series provides one dry relay output for fault power event. The relay conductor ability is 24W when it connects with a DC 24V power source and maximum current is 1A. In the following diagram shows how to make an alarm circuit.
Amber On Link with Speed 1000Mbps Amber Off Link with Speed 10/100Mbps PoE 1, 2, 3, 4 Green on The port is delivering PoE power (JetNet 3205GP, JetNet Green Off No PD attached 3205GP-1F only) 2-7. Ports The JetNet 3205G séries supports IEEE 802.3 10Base-T, IEEE 802.3u 100Base-T, IEEE 802.3ab 1000Base-T and JetNet 3205G-1F/JetNet 3205GP-1F also support IEEE 802.3z for Gigabit Fiber.
Page 15
Fig. D Cross over cable schematic for 1000Mbps schematic for 1000Mbps The RJ-45 ports of JetNet 3205G series supports auto-MDI/MDI-X function without any cable change when you use an Ethernet cable to connect other devices, such as computers, switches or hubs.
3. Mounting Installation 3-1. DIN-Rail Mounting The DIN-Rail clip is already attached on the rear side of JetNet 3205G series. JetNet 3205G series supports EN 50022 standard DIN Rail, in the following diagram includes the dimension of EN 55022 DIN Rail for your reference...
1. Take out your JetNet 3205G series Industrial Gigabit Ethernet switch from the package box. 2. Check if the DIN-Rail clip is attached to the JetNet 3205G series product . If the DIN-Rail clip is not attached to the product , refer to DIN-Rail Mounting section for DIN-Rail installation.
Page 18
9. If you want to connect with Gigabit Fiber, please install appropriate SFP fiber transceiver and fiber cable. To ensure the connection is working, please notice the type of fiber transceiver of JetNet 3205G-1F or JetNet 3205GP-1F and the other end of device. 10.
Page 19
12. Repeat step 10 to make sure that the connection of each device connected to the JetNet 3205G series product is successfully established. 13. Power on the host, activate the Command Line mode, and ping the connected Ethernet device by typing “ping –t 192.168.1.1” command to see if it will respond.
Page 20
15. Exit the Command Line mode, and connect PWR1 power input. At this stage, your JetNet 3205G series product has been tested and the installation is completed.
5. Troubles shooting Make sure you are using the correct DC power supplier (DC10~60V for JetNet 3205G/3205G-1F, DC44~57V for JetNet 3205GP/JetNet 3205GP-1F. >50V for PoE at mode). Select Ethernet cables with specifications suitable for your applications to set up your systems.
6. Technical Specifications Technology Standard IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z Gigabit Ethernet Fiber (JetNet 3205G-1F/JetNet 3205GP-1F) IEEE802.3x flow control and back-pressure IEEE802.1p Class of Service IEEE802.1Q Quality of Service Performance Forwarding Technology Store and Forward technology Packet buffer 1 Mbits Alarm contact 1 relay output with current carrying capacity of 1A@24VDC...
Page 23
Weight 900g with package 600g without package Environmental Operating Temperature -40℃ ~75℃ Operating Humidity 0% ~ 95% non-condensing -40℃ ~ 80 ℃ Storage Temperature Storage Humidity 0%~ 95% non-condensing Regulatory Approvals FCC Class A, CE/EN55032 EN61000-4-2,EN61000-4-3,EN61000-4-4,EN61000-4-5,EN61000-4-6, EN61000-4-8, EN61000-4-11, EN55024, EN50121-4 Shock IEC 60068-2-27 (compliance) Vibration...
