JetNet 5628G/5828G/5628G-R/5828G-R
IEC 61850-3 Modular Managed Ethernet Switch
Quick Installation Guide
www.korenix.com
V1.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the JetNet 5628G Series and is the answer not in the manual?

Questions and answers

Related Manuals for Korenix JetNet 5628G Series

Summary of Contents for Korenix JetNet 5628G Series

  • Page 1 JetNet 5628G/5828G/5628G-R/5828G-R IEC 61850-3 Modular Managed Ethernet Switch Quick Installation Guide www.korenix.com V1.1...

  • Page 2: Hardware Installation

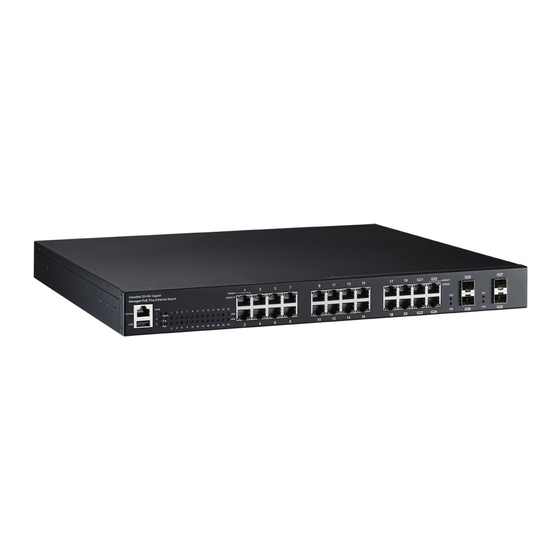

    Introduction The JetNet 5628G/5828G is a 19-inch 1U High Industrial 24+4G Modular Managed Ethernet Switch, equipped with 3 slots for maximum 24 10/100 Base-TX Ports or 18 100Base- FX Fiber interfaces ports plus 4 Gigabit RJ45 / MINI GBIC combo ports. The JetNet 5628G/5828G, a special design for substation automation and industrial control room, is also supports Jumbo Frame forwarding of up to 9.2Kbytes.
  • Page 3 2.2 Fast Ethernet Module: There are 3 available slots for Fast Ethernet Modules. 2.3 On Board Fixed Ports: 4 10/100/1000Mbps combo with 4 Gigabit SFP sockets. 2.4 Front Switch with Cap: Easy to turn on/off the switch after mounted to rack. 2.5 Digital Input/Output: 8 pin terminal block for Digital Input and Output.
  • Page 4 5. Mount the Switch to 19’’ rack 5.1 Attach the brackets to the device by using the screws provided in the Rack Mount kit. 5.2 Mount the device in the 19’ rack by using four rack-mounting screws provided by the rack manufacturer.

  • Page 5: Device Management

    Note 2: Cross-connect the transmit channel at each end to the receive channel at the SC Connector SFP Connector (100Base-FX/1000Base-x) Cable Wiring(SC to SC) Cable Wiring (LC to LC) Warming: The Fiber interface is Class 1 Laser/LED product. Do not look into the Laser/LED beam.
  • Page 6 Prompt, Type Telnet 192.168.10.1 (Default IP Address) then press Enter. Korenix Customer Service KoreCARE is Korenix Technology’s global service center, where our professional staff is ready to answer your questions any time. Email address of Korenix Global Service Center: KoreCARE@korenix.com...
  • Page 7 概述 JetNet 5628G/5828G 19-inch 1U 24+4G 24 10/100 Base-TX 18 100Base-FX F RJ45 / MINI GBIC combo JetNet 5628G/5828G IEC61850-3 IEEE1613 Jumbo Frame 9.2Kbytes JetNet 5628G/5828G VLAN MSR RSTP QoS IGMP ACL 802.1x DHCP Option 82 SNMP LLDP JetNet 5828G JetNet 5628G , JetNet 5828G JetNet 5628G-R/5828G-R JetNet 5628G/5828G...
  • Page 8 : 4 10/100/1000Mbps 2.4 DI/O: 8 pin 2.5 AC/DC : AC 85-264VAC DC 18-48VDC 88-370VDC 2.6 RS232 : DB-9 RS232 (JetNet 5628G/5828G) slot 1 port 1 8 slot 2 port 9 16 slot port 17 24 port1 9 17 Combo port 25 28 Slot 1 Slot 2...
  • Page 9 10/100M 2/4-pair CAT5 UTP 10/100M MDI/MDIX 100Base-FX SFP 100Base-FX SFP 100Base-FX 4-pair CAT5 UTP JetNet 5628G/5828G 1000Base-T 10/100/1000Mbps MDI/MDIX 1000Base-X...
  • Page 10 Korenix SFP mini GBIC SC Connector SFP Connector (100Base-FX/1000Base-x) Cable Wiring(SC to SC) Cable Wiring (LC to LC) Class 1 Laser/LED /LED 设备管理 JetNet 5628G/5828G (in-band) (out-band) RS232 Telnet/SSH, Web/HTTPS 1. Console RS-232 DB9 RJ-45 JetNet 5628G/5828G Consle Start( ) -> Program( ) ->...
  • Page 11 2. Web JetNet 5628G/5828G Mozila Firefox) http://5628G/5828G_IP_Address 192.168.10.1.) admin/admin 3. Telnet Start( ) -> Program( ) -> Accessories( ) -> DOS( Telnet 192.168.10.1 ( Korenix 客户服务 KoreCARE E-mail KoreCARE@korenix.com...
  • Page 12 Einführung Der JetNet 5628G/5828G ist ein 19” 1HE industrieller 24+4G modularer managebarer Ethernet Switch, ausgestattet mit 3 Slots für max. 24 10/100 BaseTX Ports oder 18 100BaseFX Glasfaser Ports plus 4 Gigabit RJ45 / Mini GBIC Combo Ports. Der JetNet 5628G/5828G, speziell entworfen für die Automatisierung von Schaltanlagen und industriellen Steuerungsräumen, ist konform zu den hohen Umgebungsanforderungen der Standards IEC-61850-3, IEEE1613.
  • Page 13 2.2 Fast Ethernet Module: Für Fast Ethernet Module stehen 3 Slots zur Verfügung. 2.3 Feste On Board Ports: 4 x 10/100/1000Mbps Combo mit 4 Gigabit-SFP Einschüben. 2.4 Front Schalter mit Kappe: Zum einfachen Ein-/Ausschalten des eingebauten Switch. 2.5 Digital Eingang/Ausgang: 8-Pin Anschlussklemme für digitale Eingänge und Ausgänge. 2.6 Anschluss Spannungsversorgung: Netzanschluss für 85-264 VAC und DC-Eingang für 18-48VDC oder 88-370 VDC.
  • Page 14 5. Montage des Switch im 19” Schrank 5.1 Die Winkel mit den Schrauben aus dem Rack-Mount-Kit am Switch anbringen. 5.2 Das Gerät im 19” Schrank mit 4 Schrauben des Schrankherstellers befestigen. 5.3 Bei der Installation mehrerer Switche, diese einfach übereinander befestigen. Beachte: Prüfen, ob die Temperatur im 19”...
  • Page 15 Anmerkung 2: Den Sendekanal an jedem Ende mit dem Empfangskanal kreuzweise verbinden wie in der unteren Abbildung dargestellt: SC Connector SFP Connector (100Base-FX/1000Base-x) Cable Wiring(SC to SC) Cable Wiring (LC to LC) Warnung: Die Glasfaserschnittstelle ist ein Klasse 1 Laser/LED Produkt. Niemals in den Laserstrahl schauen.
  • Page 16 Prompt. Tippen Sie Telnet 192.168.10.1 (Standard IP Addresse). Dann drücken Sie die Enter- Taste. Korenix Customer Service KoreCARE ist Korenix Technology’s globales Service Center, in dem unsere professionellen Mitarbeiter zu jeder Zeit bereit sind, Ihre Fragen zu beantworten. Korenix globales Service Center’s Email-Adresse ist: KoreCARE@korenix.com...

  • Page 17: Installation Matérielle

    Introduction Le JetNet 5628G/5828G est un Switch Ethernet Modulaire Manageable en format 19 pouces 1 U, équipé de 3 emplacements pour 24 Ports 10/100 Base-TX maximum où 18 ports fibres 100Base-FX Fiber plus 4 Ports combo Gigabit RJ45 / MINI GBIC. Le JetNet 5628G/5828G, étudié industrielle, est conforme avec les certifications environnementales IEC61850-3 et IEEE1613.
  • Page 18 2.2 Modules Fast ETHERNET: 3 emplacements sont disponible pour des modules ETHERNET. 2.4 Interrupteur M/A avec protection. 2.5 Entrées/Sorties numériques: Bloc de connexion 8 pins 2.6 Entrées alimentation AC/DC: Embase AC pour entrée 85-264VAC et entrée DC(18-48VDC ou 88-370VDC). 2.7 Console RS232: Entrée DB-9 RS232 pour le management. 3.
  • Page 19 5. Montaje del Switch en el rack de 19 5.1 Fixer les équerres au Switch en utilisant les vis fournies dans le kit de montage en rack. 5.2 Monter le Switch dans un rack 19’ en utilisant 4 vis de montage fournies par le fournisseur du rack.
  • Page 20 KORENIX. Note 2: Connectez en croix le canal d’émission au canal de réception à l’extrémité SC Connector SFP Connector (100Base-FX/1000Base-x) Cable Wiring(SC to SC) Cable Wiring (LC to LC) ATTENTION L’interface Fibre intègre une diode LASER de classe 1, ne restez pas dans le faisceau du Laser.
  • Page 21 -> Invite DOS. Tapez Telnet 192.168.10.1 (Adresse IP par défault ) et appuyez sur ENTER. Service Client Korenix KoreCARE est le centre de service global de Korenix, ou notre équipe de professionnels est prêt à répondre à vos questions à tout moment.

  • Page 22: Instalación De Hardware

    Introducción El JetNet 5628G/5828G es un Switch Industrial Modular Gestionable de 1U para Rack 19”, equipado con 3 slots para un máximo de 24 puertos 10/100 Base-TX, o de 18 puertos de Fibra 100Base-FX + 4 puertos Combo Gigabit RJ45 / MINI GBIC. El JetNet 5628G/5828G está especialmente diseñado de cara a automatización de subestaciones eléctricas y puestos de nivel de exigencia de entorno.
  • Page 23 2.2 Modulos Fast Ethernet: Hay are 3 slots disponibles para Modulos Fast Ethernet. 2.3 Puertos Fijos Integrados: Dispone de 4 puertos combo 10/100/1000Mbps con 4 zócalos Gigabit SFP. 2.4 Interruptor On/off delantero que facilita el encendido y apagado del switch tras su montaje en el rack.
  • Page 24 5. Montaje del Switch en el rack de 19” de Montaje en Rack. 5.2 Instale el dispositivo en el rack de 19’ usando 4 tornillos proporcionados por el fabricante del rack. 5.3 Cuando se instalen multiples switches en el rack, apílelos juntos entre ellos. Nota: Compruebe que el entorno de temperatura del rack está...
  • Page 25 Note 2: Interconecte el canal de transmisión al canal de recepción del otro extremo tal SC Connector SFP Connector (100Base-FX/1000Base-x) Cable Wiring(SC to SC) Cable Wiring (LC to LC) Aviso: El interface de Fibra es un producto de Clase 1 Laser/LED. No se exponga al rayo Laser/LED.
  • Page 26 Servicio Korenix a clientes KoreCARE es el centro desde donde se ofrece el servicio global de soporte sobre Tecnología Korenix, donde nuestros profesionales están preparados para resolver sus problemas en todo momento. El correo de contacto con este servicio es: KoreCARE@korenix.com...
  • Page 27 MSR, RSTP, QoS, IGMP, ACL, 802.1x, DHCP Option 82, SNMP, LLDP. PWR 1, PWR 2 (AC/ HDC) 1~8 (JNM5-4TX/4SFP) 1~6 (JNM5-2SFP/4MSC) 1~6 (JNM5-2SFP/4SSC) 25~28 (Gigabit RJ45) 25~28 (Gigabit SFP) (JetNet 5628G-R/5828G-R)
  • Page 28 Gigabit SFP. (JetNet 5628G/5828G) . JNM5-8TX fa1~fa8 9~16 fa9~fa16 17~24 fa17~fa24 25~28 gi1~gi4 JNM5-4TX/4SFP fa1~fa8 9~16 fa9~fa16 17~24 fa17~fa24 25~28 gi1~gi4 JNM5-2SFP/4MSC fa1~fa6 9~14 fa9~fa14 17~22 fa17~fa22 25~28 gi1~gi4 JNM5-2SFP/4SSC...
  • Page 30 SC Connector SFP Connector (100Base-FX/1000Base-x) Cable Wiring(SC to SC) Cable Wiring (LC to LC)
  • Page 31 Patent No. (Taiwan): 313547 Granted Invention: I 313547 Granted Invention: I 321415 321415 344766 Granted Invention: I 344766 Granted Invention: I 346480 346480 Granted Invention: I 356616 356616 364684 Granted Invention: I 364684 Granted Invention: I 376118 376118 393317 Granted Invention: I 393317 Granted Invention: I 398066 398066 Granted Invention: I 398125...
  • Page 32 Tel:+886-2-89111000 Fax:+886-2-29123328 Business service:sales@korenix.com Customer service:koreCARE@korenix.com CPQ000N5628001...
