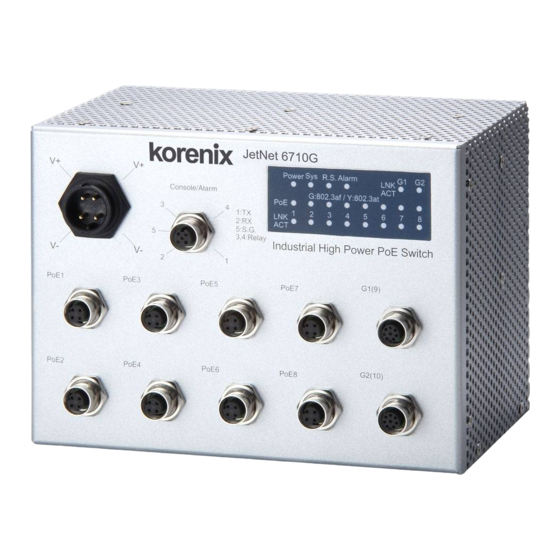

Korenix JetPoE JetNet 6710G Series Quick Installation Manual
Industrial 8-port poe plus 2 gigabit-tx managed etherenet switch
Hide thumbs
Also See for JetPoE JetNet 6710G Series:
- User manual (173 pages) ,
- User manual (147 pages) ,
- Quick installation manual (52 pages)
Related Manuals for Korenix JetPoE JetNet 6710G Series
Summary of Contents for Korenix JetPoE JetNet 6710G Series
- Page 1 JetNet 6710G / 6810G Series Industrial 8-Port PoE plus 2 Gigabit-TX Managed Etherenet Switch Quick Installation Guide www.korenix.com V1.0...
- Page 2 Besides, the eight IEEE 802.3af PoE injector ports of JetNet 6810G series are designed with the Korenix patented Booster PoE technology, which allows the switches to adopt 24~57VDC input and deliver 15.4W per port at 48V for applications where DC 48V power supply is not available.
-
Page 3: Introduction To The Manual
1-2 Introduction to the Manual The following manuals are included as PDF files on the CD-ROM: 4Quick Installation Guide: includes information on installing all versions of JetNet 6710G / 6810G series PoE Switch 4User manual – Configuration: applied to the managed versions of JetNet 6710G/ 6810G series PoE Switch 2. - Page 4 The JetNet 6810G only supports single power input that binds V1 and V2 together to obtain higher current for the booster. Use the UL listed Switching power supply to power the JetNet Switch. For the power wiring method, please refer to the figures 3.1-1 and 3.1-2. For system safety and the anti-immunity ability, the chassis ground screw should be well grounded to the earth ground.
- Page 5 Step -1: Slide component 4, 5, 6 and then 7 over the console cable. Keep them loose. Do not tighten them yet. 2 cable glands are provided for cable diameter from 3.5 to 5.8 mm. Choose the one that best fits the cable. Step-2: Solder the conductors with the copper wires according to the pin assignment.
- Page 6 3.3.1 Assembly of M12 Ethernet Connector For Fast Ethernet M12 D-Code to M12 D-Code connection, you can use either version below: M12-to-M12 Ethernet Cable Wiring For Fast Ethernet M12 D-Code to RJ45 connection, the pin assignment of the patch cable is shown below: M12-to-RJ45 Ethernet Cable Wiring For Gigabit Ethernet M12 A-Code to RJ45 connection, the pin assignment of the patch cable is shown below:...
- Page 7 Follow the steps to assemble the rugged RJ45 connector: M12-to-RJ45 Ethernet Cable Wiring Following picture-19 shows the color code of Cat.-5E UTP/STP cable based on the two standards released by TIA/EIA – 568A and 568B. The 568B wiring is by far, the most common wiring method.
-
Page 8: Device Management
3.4 Wall /Panel Mounting Installation The JetNet 6710G/6810G series are shipped with 1 set mounting bracket which allows users to install JetNet 6710G/6810G on the panel or wall. Assemble the brackets on the rear side of JetNet 6710G/6810G body, then using a suitable screw install onto wall / panel of cabinet with good heat dissipation. -
Page 9: Preparation For Web Management
At the left column of the Web management interface are listed the available software features; by pressing the ring column you can also view the detailed configuration interface. For more detailed management features please refer to the software’s users’ manual. The software user manual can be downloaded from Korenix Website as below: http://www.korenix.com/downloads.htm... - Page 10 Patent No. (Taiwan): Granted Invention: I 321415 Granted Invention: I 313547 Utility Model: M339840 Utility Model: M339841 321415 313547 M 339841 M 339840...
- Page 11 Tel:+886-2-89111000 Fax:+886-2-29123328 Business service:sales@korenix.com Customer service:koreCARE@korenix.com CPQ000N6710000...
