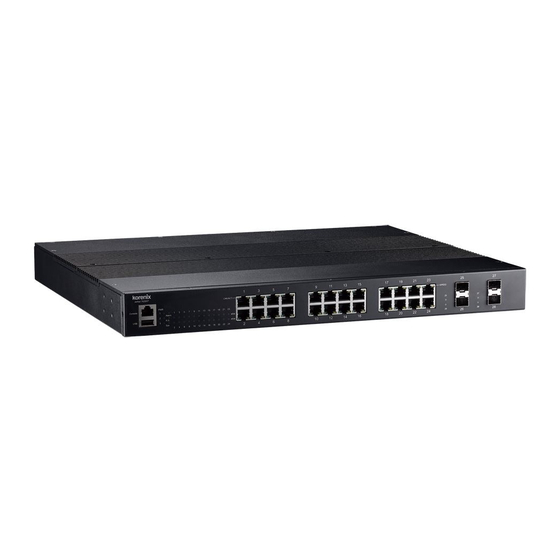

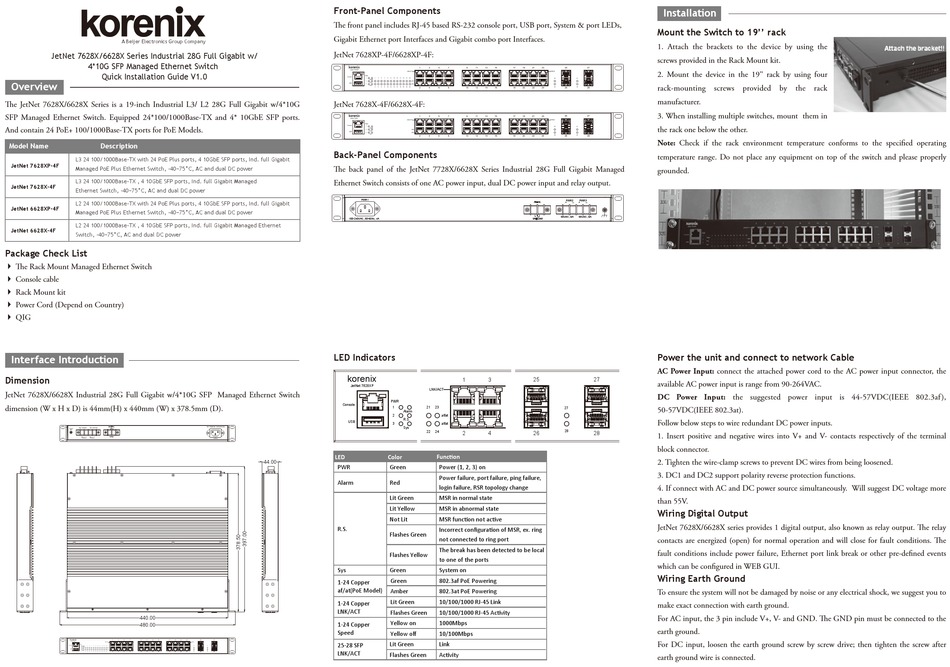

JetNet 7628X/6628X Series Industrial 28G Full Gigabit w/
4*10G SFP Managed Ethernet Switch
Quick Installation Guide V1.0
Overview
e JetNet 7628X/6628X Series is a 19-inch Industrial L3/ L2 28G Full Gigabit w/4*10G
SFP Managed Ethernet Switch. Equipped 24*100/1000Base-TX and 4* 10GbE SFP ports.
And contain 24 PoE+ 100/1000Base-TX ports for PoE Models.
Model Name Description
L3 24 100/1000Base-TX with 24 PoE Plus ports, 4 10GbE SFP ports, Ind. full Gigabit
JetNet 7628XP-4F
Managed PoE Plus Ethernet Switch, -40~75°C, AC and dual DC power
L3 24 100/1000Base-TX , 4 10GbE SFP ports, Ind. full Gigabit Managed
JetNet 7628X-4F
Ethernet Switch, -40~75°C, AC and dual DC power
L2 24 100/1000Base-TX with 24 PoE Plus ports, 4 10GbE SFP ports, Ind. full Gigabit
JetNet 6628XP-4F
Managed PoE Plus Ethernet Switch, -40~75°C, AC and dual DC power
L2 24 100/1000Base-TX , 4 10GbE SFP ports, Ind. full Gigabit Managed Ethernet
JetNet 6628X-4F
Switch, -40~75°C, AC and dual DC power
Package Check List
 e Rack Mount Managed Ethernet Switch
 Console cable
 Rack Mount kit
 Power Cord (Depend on Country)
 QIG
Interface Introduction
Dimension
JetNet 7628X/6628X Industrial 28G Full Gigabit w/4*10G SFP Managed Ethernet Switch
dimension (W x H x D) is 44mm(H) x 440mm (W) x 378.5mm (D).
440.00
480.00
korenix
1 3 5 7 9 11 13 15 17 19 21
JetNet 7628XP
LNK/ACT
PWR
Console
1 Alarm 1 3 5 7 9 11 13 15 17 19 21 23
2 af/at
R.S.
USB 3 af/at
Sys
2 4 6 8 10 12 14 16 18 20 22 24 2 4 6 8 10 12 14 16 18 20 22
Front-Panel Components
e front panel includes RJ-45 based RS-232 console port, USB port, System & port LEDs,
Gigabit Ethernet port Interfaces and Gigabit combo port Interfaces.
JetNet 7628XP-4F/6628XP-4F:
korenix
JetNet 7628XP
PWR
Console
USB
JetNet 7628X-4F/6628X-4F:
korenix
JetNet 7628X
PWR
Console
USB
Back-Panel Components
e back panel of the JetNet 7728X/6628X Series Industrial 28G Full Gigabit Managed
Ethernet Switch consists of one AC power input, dual DC power input and relay output.
PWR1
100-240VAC, 50-60Hz, 4A
LED Indicators
korenix
JetNet 7628XP
Console
USB
LED
44.00
PWR
Alarm
R.S.
Sys
1-24 Copper
af/at(PoE Model)
1-24 Copper
LNK/ACT
1-24 Copper
Speed
23 25 27
25-28 SFP
SPEED
25 27
LNK/ACT
24 26 26 28 28
1 3 5 7 9 11 13 15 17 19 21 23
LNK/ACT
1 1 3 5 7 9 11 13 15 17 19 21 23
Alarm
2 af/at
R.S.
3 af/at
Sys
2 4 6 8 10 12 14 16 18 20 22 24 2 4 6 8 10 12 14 16 18 20 22 24
1 3 5 7 9 11 13 15 17 19 21 23
LNK/ACT
1
Alarm
2 af/at
R.S.
3 af/at
Sys
2 4 6 8 10 12 14 16 18 20 22 24
Alarm Alarm
1A@24V 1A@24V
1 3 25
LNK/ACT
PWR
1 21 23
Alarm
2 af/at
R.S.
3 af/at
Sys
22 24 2 4 26
Color Function
Green Power (1, 2, 3) on
Power failure, port failure, ping failure,
Red
login failure, RSR topology change
Lit Green MSR in normal state
Lit Yellow MSR in abnormal state
Not Lit MSR function not active
Incorrect configuration of MSR, ex. ring
Flashes Green
not connected to ring port
The break has been detected to be local
Flashes Yellow
to one of the ports
Green System on
Green 802.3af PoE Powering
Amber 802.3at PoE Powering
Lit Green 10/100/1000 RJ-45 Link
Flashes Green 10/100/1000 RJ-45 Activity
Yellow on 1000Mbps
Yellow off 10/100Mbps
Lit Green Link
Flashes Green Activity
Installation
Mount the Switch to 19'' rack
1. Attach the brackets to the device by using the
screws provided in the Rack Mount kit.
25 27
2. Mount the device in the 19'' rack by using four
SPEED
25 27
rack-mounting screws provided by the rack
26 28
26 28
manufacturer.
3. When installing multiple switches, mount them in
25 27
SPEED
the rack one below the other.
25 27
26 26 28 28
Note: Check if the rack environment temperature conforms to the speci ed operating
temperature range. Do not place any equipment on top of the switch and please properly
grounded.
PWR2 PWR3
+ +
55VDC, 8A 55VDC, 8A
Power the unit and connect to network Cable
AC Power Input: connect the attached power cord to the AC power input connector, the
27
available AC power input is range from 90-264VAC.
DC Power Input: the suggested power input is 44-57VDC(IEEE 802.3af ),
27 50-57VDC(IEEE 802.3at).
Follow below steps to wire redundant DC power inputs.
28
28
1. Insert positive and negative wires into V+ and V- contacts respectively of the terminal
block connector.
2. Tighten the wire-clamp screws to prevent DC wires from being loosened.
3. DC1 and DC2 support polarity reverse protection functions.
4. If connect with AC and DC power source simultaneously. Will suggest DC voltage more
than 55V.
Wiring Digital Output
JetNet 7628X/6628X series provides 1 digital output, also known as relay output.
contacts are energized (open) for normal operation and will close for fault conditions.
fault conditions include power failure, Ethernet port link break or other pre-de ned events
which can be con gured in WEB GUI.
Wiring Earth Ground
To ensure the system will not be damaged by noise or any electrical shock, we suggest you to
make exact connection with earth ground.
For AC input, the 3 pin include V+, V- and GND.
earth ground.
For DC input, loosen the earth ground screw by screw drive; then tighten the screw after
earth ground wire is connected.
e relay
e
e GND pin must be connected to the
