- Page 1 Korenix JetNet 3810G Series JetNet 3810G(f)/ 3806G/ 3710G Industrial Power over Ethernet GbE Switch User’s Manual Second Edition, Oct 2010 www.korenix.com...
- Page 2 JetNet 3810G(f)/ 3806G/ 3710G Industrial Power over Ethernet GbE Switch User’s Manual Copyright Notice Copyright © 2008 Korenix Technology Co., Ltd. All rights reserved. Reproduction in any form or by any means without permission is prohibited. Korenix JetNet 3810G(f)/ 3806G/ 3710G...
-
Page 3: Table Of Contents
2.5 DIP Switches....................13 2.6 Wiring the Ethernet Ports................14 2.7 Wiring the Fiber Ports (only JetNet 3810Gf) ..........15 2.8 Connecting Powered Device (PD) ..............15 2.9 DIN-Rail Mounting Installation...............17 3. Appendix ........................18 3.1 Product Specification ..................18 3.2 Revision History....................20 Korenix JetNet 3810G(f)/ 3806G/ 3710G... -
Page 4: Introduction
1. Introduction Korenix JetNet 3810G Series is a power over Ethernet rail switch that is specially designed for industrial or commercial applications. The following topics are covered in this chapter: 1.1 Overview 1.2 Product Features Korenix JetNet 3810G(f)/ 3806G/ 3710G... -
Page 5: Overview
SFP fiber transceiver interfaces which can meet different specifications of fiber cable for extending transmission distance. To ensure the high quality of video data transmission, JetNet 3810G series not only provide Gigabit bandwidth uplink for large image traffic, but also support QoS to adjust the priority of data transfer. -
Page 6: Hardware Installation
2. Hardware Installation 2.1 Hardware Introduction Dimensions JetNet 3810G(f) dimensions: 149.0(H) x 131.2(W) x 66.0(D) (with Din-rail clip) Korenix JetNet 3810G(f)/ 3806G/ 3710G... - Page 7 JetNet 3806G dimensions: 149.0(H) x 131.2(W) x 66.0(D) (with Din-rail clip) JetNet 3710G dimensions: 149.0(H) x 131.2(W) x 66.0(D) (with Din-rail clip) Korenix JetNet 3810G(f)/ 3806G/ 3710G...
-

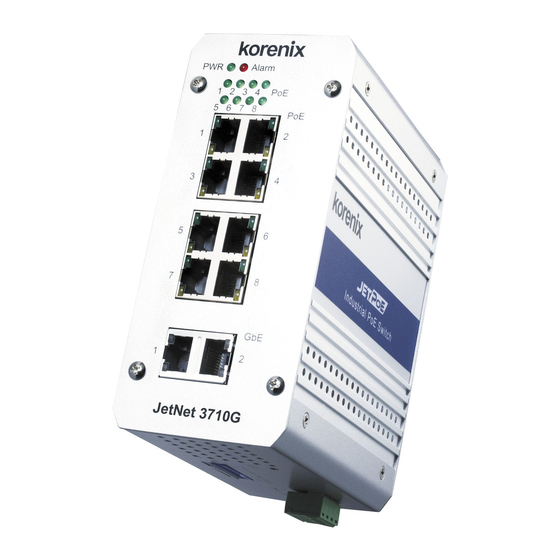

Page 8: Front Panel
JetNet 3806G includes system power LED x1, alarm relay LED x1, PoE LED x4, and 12 LEDs for the port operating status. JetNet 3810G/ 3710G JetNet 3806G Power LED Alarm Relay LED PoE Indicators LED for RJ-45 port RJ-45 ports for 10/100Mbps RJ-45 ports for 10/100/1000M Korenix JetNet 3810G(f)/ 3806G/ 3710G... - Page 9 JetNet 3810Gf includes system power LED x1, alarm relay LED x1, PoE LED x8, 16 LEDs for RJ-45 port operating status, and 4 LEDs for SFP fiber port status. Power LED Alarm Relay LED PoE Indicators LED for RJ-45 port LED for fiber speed LED for fiber LNK/ACT Korenix JetNet 3810G(f)/ 3806G/ 3710G...
-
Page 10: Bottom View
No failure is found PoE LED Status Description Green The port is delivering PoE power. PoE 1~8 No PD is attached. 10/100 TX Port LED Status Description LNK/ACT Green on RJ-45 port is attached with partner. Korenix JetNet 3810G(f)/ 3806G/ 3710G... - Page 11 Fiber port’s link is inactive 3 blinks per order – 1000Mbps Yellow Blinking 2 blinks per order – 100Mbps** Speed Fiber port’s link is inactive ** 100M fiber is optional and can be supported by different settings Korenix JetNet 3810G(f)/ 3806G/ 3710G...
-
Page 12: Wiring The Power Inputs
Guarantee will not apply to the damage caused by wrong input power. Insert the positive and negative wires of your DC supply into the V+ and V- contacts of the terminal block connector. The acceptable wire range is 12 to 24 AWG. JetNet 3810G(f)/ 3806G Korenix JetNet 3810G(f)/ 3806G/ 3710G... -
Page 13: Wiring The Relay Output
JetNet 3810G(f)/3806G/3710G provide Relay Output. The relay contacts are energized (open) for normal operation and will close under faulty condition such as Ethernet port link break. The Relay alarm can be configured by DIP Switches. Korenix JetNet 3810G(f)/ 3806G/ 3710G... -
Page 14: Wiring Earth Ground
To disable PoE port break alarm at this port JetNet 3806G: (Default) DIP 3~6 Note: DIP Switch number mapping to corresponding PoE port & GbE port as follow: DIP Switch # PoE port DIP Switch # GbE port Korenix JetNet 3810G(f)/ 3806G/ 3710G... -
Page 15: Wiring The Ethernet Ports
Refer to the LED Indicators section for descriptions of each LED indicator. Always make sure that the cables between the switches and attached devices (e.g. switch, hub, or workstation) are less than 100 meters (328 feet). Korenix JetNet 3810G(f)/ 3806G/ 3710G... -
Page 16: Wiring The Fiber Ports (Only Jetnet 3810Gf)
JetNet 3810Gf equips 2 gigabit SFP fiber ports. The speed of the SFP port supports up to 1000Base-SX/LX. The SFP ports accept standard MINI GBIC SFP transceiver. But, to ensure system reliability, Korenix recommends using the Korenix certificated Gigabit SFP Transceiver. The certificated SFP transceiver includes 1000Base-SX/LX single/multi mode ranger from 550m to 80KM. - Page 17 If the RJ-45 is bound with the wrong pin number, JetNet will not recognize the PD and won’t forward DC 48V power to PD, since the JetNet 3810G series switch following the Alternative B mode. In the IEEE 802.3af standard documents, it indicates the PD should support mode A and B, and only receiver power from either mode A or mode B.
-
Page 18: Din-Rail Mounting Installation
3710G. It supports EN 50022 standard DIN Rail, in the following diagram includes the dimension of EN 55022 DIN Rail for your reference. The DIN rail should behind the spring when install the JetNet 3810G series onto the standard DIN Rail. Follow the steps below to mount the JetNet 3810G series on the DIN-Rail track. -
Page 19: Appendix
Auto MDI/MDI-X, Auto Negotiation Cables 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable (100m) 100 Base-TX: 2/4-pair UTP/STP Cat. 5 cable (100m) 1000 Base-T: 4-pair UTP/STP Cat. 5 cable (100m) Diagnostic LED Power (Green) x1 Korenix JetNet 3810G(f)/ 3806G/ 3710G... - Page 20 Operating Temp JetNet 3810G(f)/ 3806G -13 ~ 140℉(-25 ~ 60℃), 5 to 95% RH JetNet 3710G -13 ~ 158℉(-25 ~ 70℃), 5 to 95% RH -40 ~ 176℉(-40 ~ 80℃), 5 to 95% RH Storage Temp Korenix JetNet 3810G(f)/ 3806G/ 3710G...
-
Page 21: Revision History
5 years *Specifications may change without prior notice ** 100M fiber is optional and can be supported by different settings ***pending 3.2 Revision History Edition Date Modifications V0.1 06/30/2010 New edition V0.2 10/22/2010 Add JetNet 3810Gf Korenix JetNet 3810G(f)/ 3806G/ 3710G...
