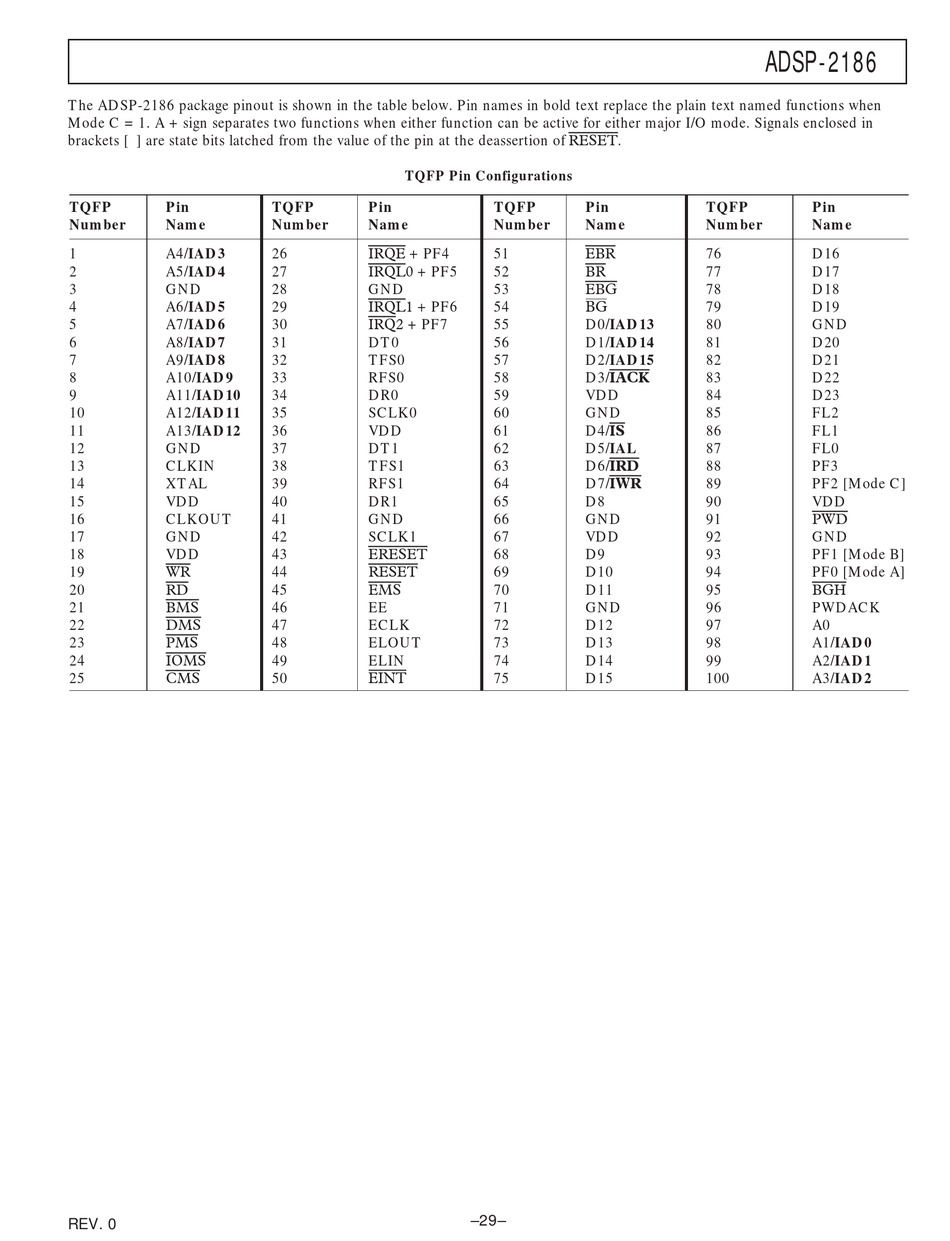

The ADSP-2186 package pinout is shown in the table below. Pin names in bold text replace the plain text named functions when
Mode C = 1. A + sign separates two functions when either function can be active for either major I/O mode. Signals enclosed in
brackets [ ] are state bits latched from the value of the pin at the deassertion of RESET.
TQFP
Pin
Number
Name
1
A4/IAD3
2
A5/IAD4
3
GND
4
A6/IAD5
5
A7/IAD6
6
A8/IAD7
7
A9/IAD8
8
A10/IAD9
9
A11/IAD10
10
A12/IAD11
11
A13/IAD12
12
GND
13
CLKIN
14
XTAL
15
VDD
16
CLKOUT
17
GND
18
VDD
WR
19
RD
20
BMS
21
DMS
22
PMS
23
IOMS
24
CMS
25
REV. 0
TQFP Pin Configurations
TQFP
Pin
Number
Name
IRQE + PF4
26
IRQL0 + PF5
27
28
GND
IRQL1 + PF6
29
IRQ2 + PF7
30
31
DT0
32
TFS0
33
RFS0
34
DR0
35
SCLK0
36
VDD
37
DT1
38
TFS1
39
RFS1
40
DR1
41
GND
42
SCLK1
ERESET
43
RESET
44
EMS
45
46
EE
47
ECLK
48
ELOUT
49
ELIN
50
EINT
TQFP
Pin
Number
Name
EBR
51
BR
52
EBG
53
54
BG
55
D0/IAD13
56
D1/IAD14
57
D2/IAD15
58
D3/IACK
59
VDD
60
GND
61
D4/IS
62
D5/IAL
63
D6/IRD
64
D7/IWR
65
D8
66
GND
67
VDD
68
D9
69
D10
70
D11
71
GND
72
D12
73
D13
74
D14
75
D15
–29–
ADSP-2186
TQFP
Pin
Number
Name
76
D16
77
D17
78
D18
79
D19
80
GND
81
D20
82
D21
83
D22
84
D23
85
FL2
86
FL1
87
FL0
88
PF3
89
PF2 [Mode C]
90
VDD
PWD
91
92
GND
93
PF1 [Mode B]
94
PF0 [Mode A]
BGH
95
96
PWDACK
97
A0
98
A1/IAD0
99
A2/IAD1
100
A3/IAD2
