ASSEMBLY INSTRUCTIONS

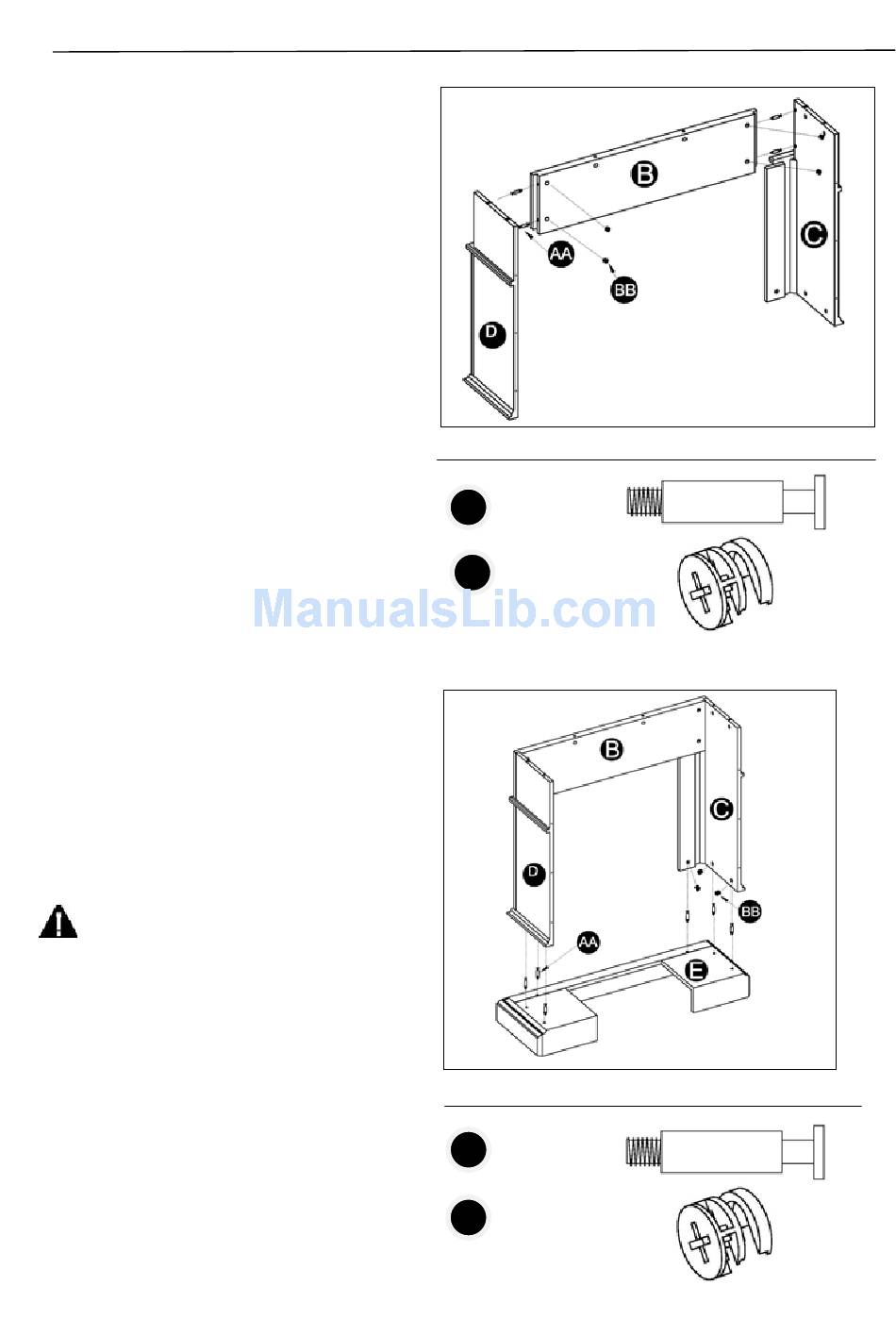

1. Insert Cam Locks (BB) into Panel (B). Screw in
Cam Dowels (AA) into the Left Side Panel (C) and
the Right Side Panel (D). Attach Panel (B) into the
Left Side Panel (C) and the Right Side Panel (D)
by tightening the Cam Locks (BB) as shown in Fig1.
2. After assembling the mantel (B, C, D), insert Cam
Locks (BB) into Base (E), screw in Cam Dowels (AA)
into the Left Side Panel (C) and the Right Side Panel
(D). Attach Base (E) into assembled frame (B, C, D) by
tightening the Cam Locks (BB) as shown in Fig 2.
Skip to step 5 for Corner Mantel Installation.
Hardware Used
Cam Dowel
AA
BB
Cam Lock
Hardware Used
AA
Cam Dowel
BB
BB
Cam Lock
5
Fig 1
Fig 2
×4
×4
×6
×6
