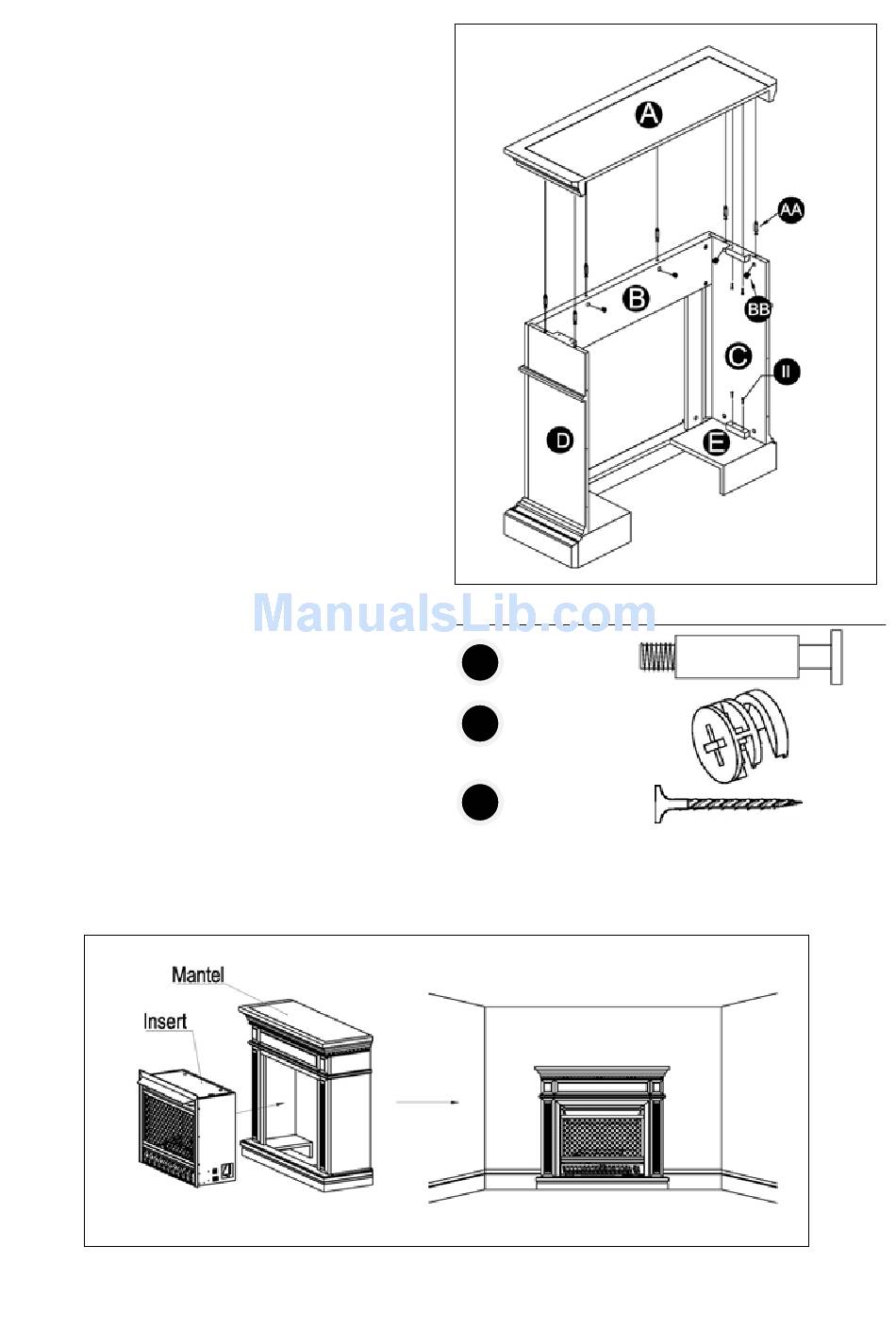

3. Insert Cam Locks (BB) into assembled frame (B, C,
D). Screw in Cam Dowels (AA) into the Top (A). Attach
Top (A) into assembled frame (B, C, D, E) by
tightening the Cam Locks (BB) as shown in Fig 3.
Fasten the batten with ST4 Screw 1-9/16 in. (II) to the
Top (A) and the Base (E) as shown in Fig 3.
4. Place insert into the mantel as shown in Fig 4.
Hardware Used
Cam Dowel
AA
BB
Cam Lock
ST4 Screw
II
1 -9/16 in.
Fig 4
6
Fig 3
×6
×6
×4
