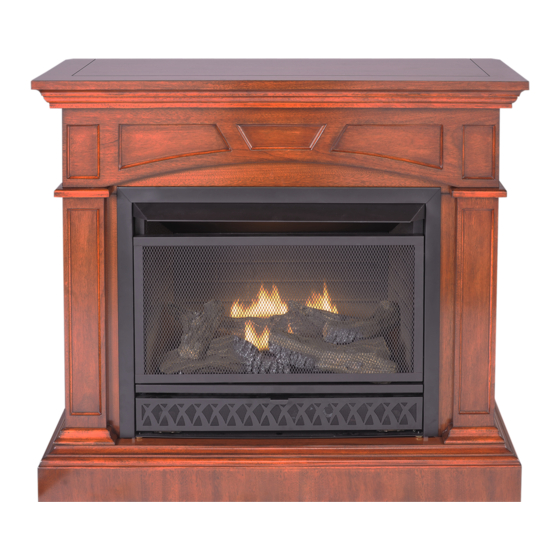

  • Page 1 CORNER COMBO WOOD FIREPLACE MANTEL Model # FBD28TCC-M-HC/MO Questions about installation, Operation or troubleshooting? Before returning to your retailer, contact our customer service department at 1-877-886-5989, 8:00a.m.—4:30p.m., EST, Monday—Friday or e-mail customerservice@usaprocom.com. PC-FBD28-M1-1101    ...

  • Page 2: Product Specifications

    PRODUCT SPECIFICATIONS  ...

  • Page 3: Package Contents

    PACKAGE CONTENTS If a part is missing or damaged - return to place of purchase (exterior wood components are not replaceable). PART DESCRIPTION QUANTITY Panel Left Side Panel Right Side Panel Base Top Triangle Panel Backboard Set Square Support    ...

  • Page 4: Hardware Contents

    HARDWARE CONTENTS Picture Picture Part Description Quantity Part (Shown to size)  Description Quantity (Shown to size) ST4 Screw Cam Dowel 5/8 in.   Connector Cam Lock Bracket   Wall Anchor White Key   ST4 Screw ST4 Screw 1 -9/16 in. 1 -3/16 in.

  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Fig 1 1. Insert Cam Locks (BB) into Panel (B). Screw in Cam Dowels (AA) into the Left Side Panel (C) and the Right Side Panel (D). Attach Panel (B) into the Left Side Panel (C) and the Right Side Panel (D) by tightening the Cam Locks (BB) as shown in Fig1.
  • Page 6 Fig 3 3. Insert Cam Locks (BB) into assembled frame (B, C, D). Screw in Cam Dowels (AA) into the Top (A). Attach Top (A) into assembled frame (B, C, D, E) by tightening the Cam Locks (BB) as shown in Fig 3. Fasten the batten with ST4 Screw 1-9/16 in.
  • Page 7 FOR CORNER APPLICATION Fig 5 5. Turn the fireplace Top (A) Panel over. Using the Connector Brackets (GG) that supplied, connect the Fireplace Top (A) to the Top Triangle Panel (H) with ST4 Screw 5/8 in. (FF) as shown in Fig 5. Hardware Used ST4 Screw ×18...
  • Page 8 Fig 7 7. Attach the left and right Backboard (I) trim pieces to the back of the fireplace with ST4 Screw 1-3/16 in. (DD) as shown in Fig 7. Hardware Used ST4 Screw ×8 1 -3/16 in. Fig 8 8. Drill two holes (5/16 in.) in the corner where the fireplace is to be displayed.
  • Page 9 Fig 9 9. Attach the triangular wood block to the holes drilled in step 8 with ST5 Screw 2-3/8 in. (EE) as shown in Fig 9. This block is used to support the Set Square Support (J). For thin walls, insert white key (HH) into wall anchor and push to “pop”...

  • Page 10: Replacement Parts List

    REPLACEMENT PARTS LIST Part Description Part # Quantity Hardware Package HP006 Cam Dowel PCAM-023 Cam Lock PCAM-023 Wall Anchor ML066-01 ST4 Screw 1-3/16 in. GB/T 951 4×30 ST5 Screw 2-3/8 in. GB/T 950 5×60 ST4 Screw 5/8 in. GB/T 951 4×16 Connector Bracket SJ002 White Key...

  • Page 11: Warranty Information

    WARRANTY INFORMATION Keep This Warranty IMPORTANT: We urge you to fill your warranty registration card within TEN(10) days of date of installation, complete with the entire serial number which can be found on the rating plate. Retain this portion of the card for your record. Always specify model and serial numbers when communicating with customer service.
